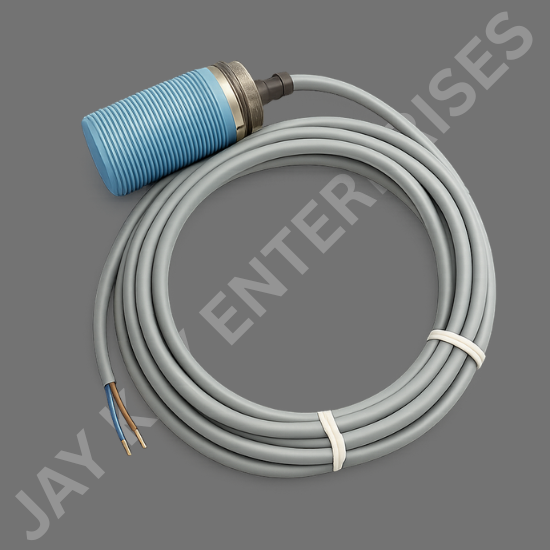

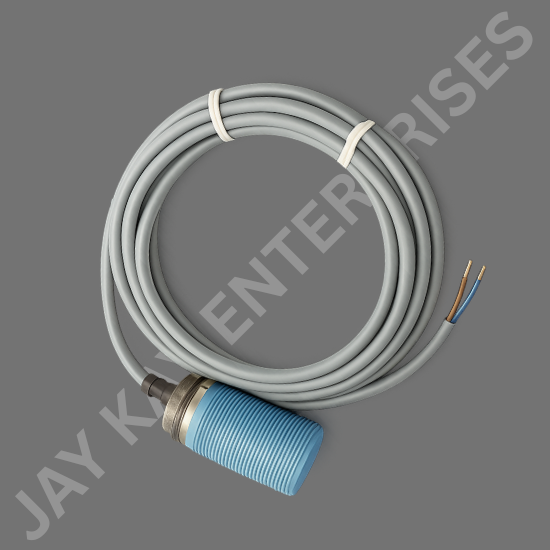

CAPACITIVE PROXIMITY SENSORS

Name: CAPACITIVE PROXIMITY SENSORS
Brand: JAY KAY ENTERPRISES
Price: 7600.0 INR
Availability: InStock

Price 7600.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CAPACITIVE PROXIMITY SENSORS Specification

Housing Material
Plastic, PBT

Wireless
No

Spectral Range
2 mm ... 16 mm

Power Consumption
10 mA Ampere

Sensor Type

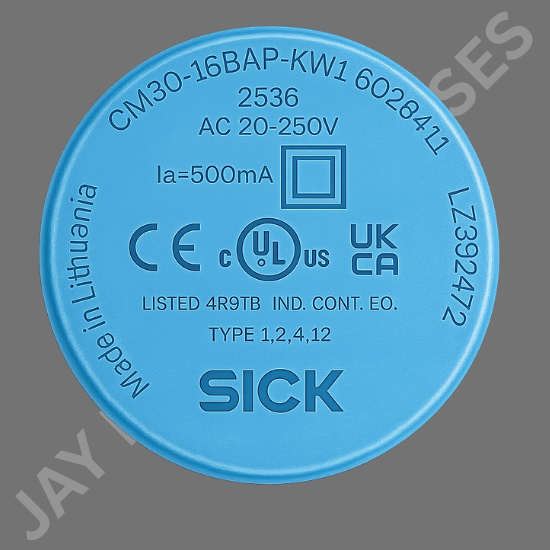

CM30-16BAP-KW1

Application
Minimum fill level monitoring

Signal Type
Digital

Features
Metric

Ingress Protection

Operating Temperature
25 C ... +80 C Celsius (oC)

IP Rating
IP67

Response Time
1 Days

Cable Length
2 m Meter (m)

Product Type
CM30-16BAP-KW1

Power Rating
IP67

Input
CAPACITIVE PROXIMITY SENSORS

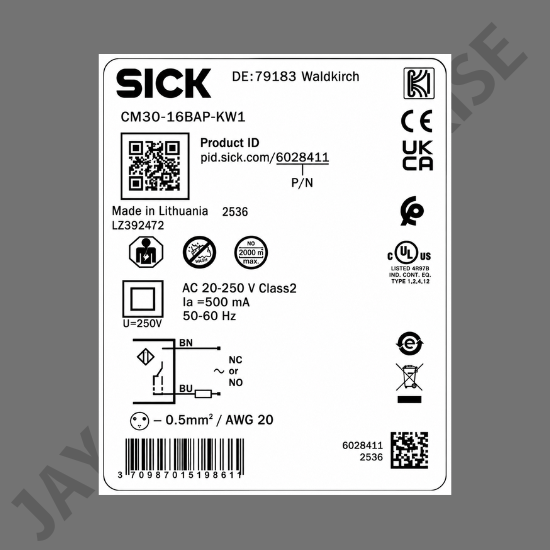

Output
NC or NO

Function
NC or NO

Usage
Minimum fill level monitoring

Accuracy
30 mm mm

Resolution
solutions for industrial applications

Voltage
20 V AC ... 250 V AC Volt (v)

Rated Voltage
20 V AC ... 250 V AC Volt (V)

Usage & Applications
Minimum fill level monitoring

Weight
73.3 Grams (g)

Cable Type
PVC

Warranty
1 year

Display Type
CAPACITIVE PROXIMITY SENSORS

Conductor
0.5 mm

Material
Plastic, PBT

Frequency
10 Hertz (HZ)

Rated Current
10 mA Milliampere (mA)

CAPACITIVE PROXIMITY SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About CAPACITIVE PROXIMITY SENSORS

PRODUCT DESCRIPTION

The CM capacitive proximity sensors detect objects and levels regardless of color, reflectance, and gloss of the surfaces. In the process, they detect powdery, granulated, liquid, and solid materials even through non-metallic walls made of plastic or glass. The proven and rugged sensors are cost-effective and feature high electromagnetic compatibility (EMC), which prevents switching errors and reduces downtime. The variants with a PTFE housing are ideal for detecting the levels of chemical compounds, e.g. acids or solvents.

AT A GLANCE

Cylindrical housing in M12, M18, and M30 models.
Sensing ranges of up to 25 mm.
Enclosure rating: IP67, IP68, IP69K J K L M N O P Q R S T.
Visual adjustment indicator.
High electromagnetic compatibility.
Electrical configuration: DC 4-wire and AC 2-wire.
Adjustment of the switching point via potentiometer (M18 and M30) and teach-in button (M12).

YOUR BENEFITS

Cost-effective sensors for traditional maximum fill level detection and object detection.
Less machine downtimes thanks to high shock and vibration resistance.
Stable processes thanks to high EMC and easy switching point adjustment using a potentiometer or teach-in button.
Quick installation thanks to visual adjustment indicator and universal mounting systems.
Especially durable PTFE variants for use in aggressive ambient conditions
