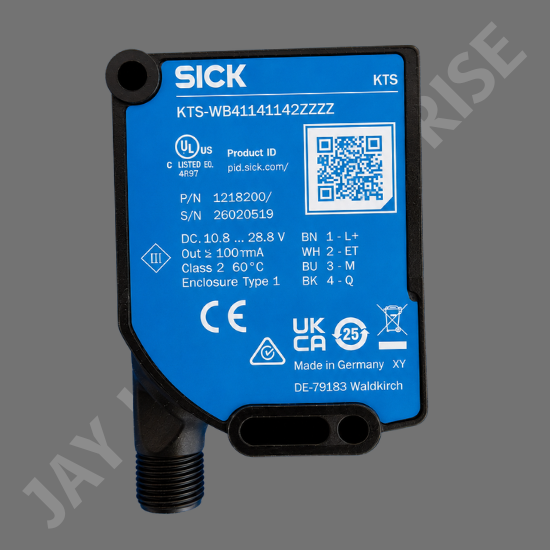

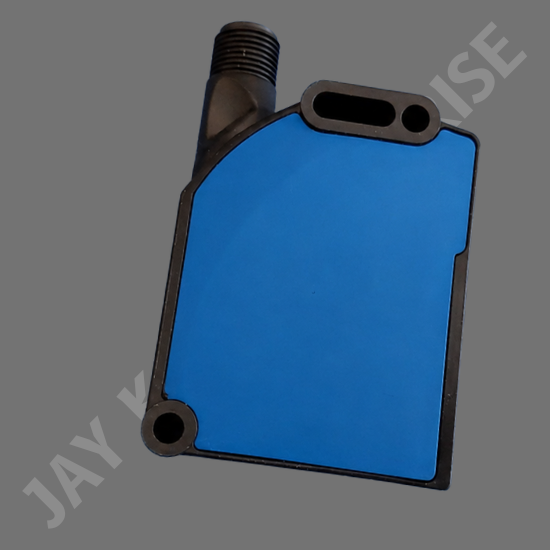

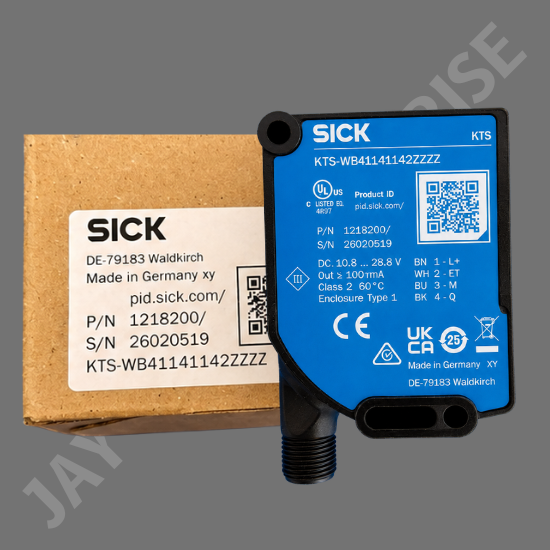

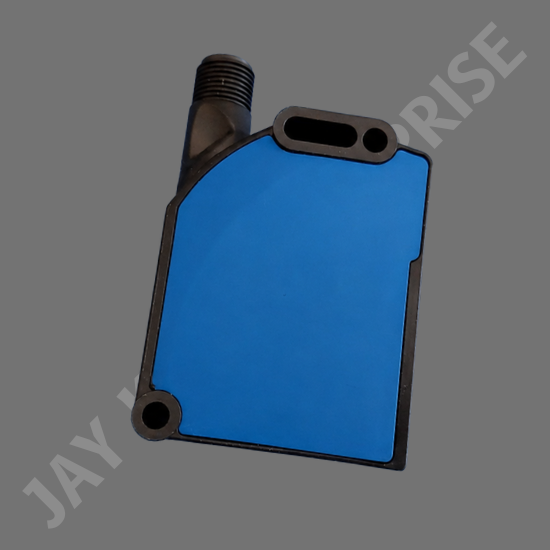

CONTRAST SENSORS

Price 19000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CONTRAST SENSORS Specification

Power Consumption
100 mA Ampere

Wireless
No

Operating Temperature
20 C ... +60 C Celsius (oC)

Application
Splice band detection

Ingress Protection
UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression

Signal Type
Digital

Housing Material
VISTAL

Cable Length
470 nm, 525 nm, 625 nm Nanometer (nm)

Sensor Type
KTS WB41141142ZZZZ

IP Rating
IP67

Features
Easy Teach

Response Time
1 Days

Product Type
KTS WB41141142ZZZZ

Power Rating
IP67

Input
CONTRAST SENSORS - KTS-WB41141142ZZZZ

Output
Push-pull: PNP/NPN

Function
Light/dark switching

Usage
Splice band detection

Accuracy
13 mm mm

Resolution
industrial automation

Voltage
10.8 V DC ... 28.8 V DC Volt (v)

Usage & Applications
Splice band detection

Rated Voltage
10.8 V DC ... 28.8 V DC Volt (V)

Weight
68 Grams (g)

Cable Type
Male connector M12, 4-pin

Warranty
1 year

Display Type
CONTRAST SENSORS - KTS-WB41141142ZZZZ

Rated Current
< 100 mA Milliampere (mA)

Material
COP

Frequency
25 Kilohertz ( KHZ )

CONTRAST SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About CONTRAST SENSORS

PRODUCT DISCRIPTION

The best performance KTS contrast sensors can be used in many applications, even under demanding conditions. The sensors in the KTS product family with RGB technology and VISTAL housing feature good performance, high switching frequency and grayscale resolutions, as well as various teach-in variants. Some models come with Twin Eye-Technology, a display, and IO-Link for providing diagnostics and analysis data. Response times of just 10 s and minimal jitter of 3 s ensure positionally accurate col or and contrast detection even at high machine speeds and for highly glossy materials. The color mode integrated into several variants and variable sensor settings ensure quick commissioning and high process stability. This makes KTS an ideal companion for digital machine environments.

AT A GLANCE

RGB technology for best possible detection.
Switching frequency: up to 70 kHz, jitter: 3 s.
Twin Eye-Technology for high depth of field and sensing distance tolerance.
Various teach-in variants.
Color mode.
IO-Link and flexible sensor settings.
Display for easy sensor operation.

YOUR BENEFITS

High contrast and color resolution for best possible performance, even when detecting complex materials.
Various teach-in procedures for application-specific sensor and process settings.
Diagnostics, visualization, and simple format change via IO-Link.
Sensor data can be stored in the device allows flexible process design and quick format change.
multi-functional sensor adjustment for individual sensor adjustment.
Twin Eye-Technology for better performance in detecting glossy or fluttery materials, thereby resulting in fewer machine down times and more process stability.
Space-saving due to compact design.
