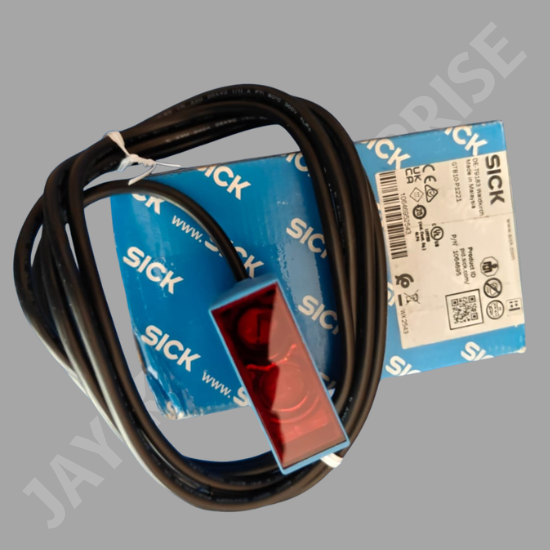

G10 photoelectric sensor

Name: G10 photoelectric sensor
Brand: JAY KAY ENTERPRISES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

G10 photoelectric sensor Specification

Response Time
1 Days

Wireless
No

Sensor Type
GTB10-P1221

Mounting Thread
hole, 4.2 mm

Mounting Type
hole, 4.2 mm

Spectral Range
20 mm ... 1,200 mm

Signal Type
Digital

Application
Monitoring access barriers

Measurement Range
20 mm ... 1,200 mm

Power Consumption
20 mA Ampere

Ingress Protection
A 6) B 7) C 8) D 9)

Operating Temperature
30 C ... +60 C Celsius (oC)

Features
Photoelectric proximity sensor

Cable Length
850 nm Nanometer (nm)

IP Rating
IP67

Power Rating
IP67

Product Type
GTB10-P1221

Input
Photoelectric proximity sensor

Output
PNP

Function
Background suppression

Usage
Monitoring access barriers

Accuracy
22 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Weight
0.134 Kilograms (kg)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Usage & Applications
Monitoring access barriers

Warranty
1 year

Cable Type
Cable, 3-wire, 2 m

Display Type
GTB10-P1221

Material
Plastic, PVC

Rated Current
20 mA Milliampere (mA)

Conductor
0.14 mm

Frequency
1,000 Hz Hertz (HZ)

G10 photoelectric sensor Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About G10 photoelectric sensor

PRODUCT DESCRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot.
Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few second

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors

FIELDS OF APPLICATION

Logistics: Storage & Conveyor, especially pallet detection.
Machine builders (e.g. packaging, handling, wood processing, paper).
Automotive.
Automated car park systems.
Doors and gates.
Distribution

Versatile Sensing with Background Suppression

The G10 photoelectric sensor excels in industrial automation, thanks to its sophisticated background suppression. It detects objects precisely within a substantial range (20 mm to 1,200 mm), reducing false triggers caused by environmental factors. As such, it's an ideal choice for access barrier applications in logistics and factory automation settings, effortlessly distinguishing between actual targets and background interference.

Robust Design for Demanding Environments

Constructed with high-grade plastic and PVC materials, the G10 sensor boasts an IP67 rating, providing exceptional resistance to dust and water. Its wide operating temperature range between -30C and +60C ensures dependable function in warehouses, outdoor locations, and challenging climates. Effortless to mount with a 4.2 mm hole, it sustains prolonged use without performance degradation.

FAQ's of G10 photoelectric sensor:

Q: How is the G10 photoelectric sensor installed for optimal performance?

A: The G10 sensor is designed for straightforward installation via a 4.2 mm mounting hole and is supplied with a 2-meter, 3-wire cable for easy electrical integration. For best results, position the sensor within its measurement range (20 mm to 1,200 mm), ensuring a clear line of sight to the target object and minimizing background interference.

Q: What are the main applications and benefits of using the G10 photoelectric sensor?

A: Primarily used for monitoring access barriers, the G10 sensor excels in automation systems for industrial gates, conveyor belts, and safety light curtains. Its background suppression and robust design help reduce false detections, improving system reliability and operational efficiency across diverse settings.

Q: When should I select a photoelectric proximity sensor like the G10 over other sensor types?

A: Choose the G10 photoelectric sensor when accurate, non-contact object detection is necessary, particularly where there may be varying background conditions. Its digital output, background suppression, and wide temperature tolerance make it suitable for dynamic industrial environments.

Q: Where can the G10 sensor be deployed given its IP67 rating and temperature range?

A: Thanks to its IP67 ingress protection and operation between -30C and +60C, the G10 sensor is suitable for both indoor and outdoor environments, including warehouses, industrial sites, and locations exposed to dust, water, and temperature fluctuations.

Q: What process does the G10 sensor use to detect objects reliably?

A: The G10 employs photoelectric proximity sensing, emitting an 850 nm beam and evaluating reflected signals. With background suppression, it accurately distinguishes target objects within 20 mm to 1,200 mm, even amid potentially disruptive backgrounds.

Q: How does the G10 sensor improve safety in access barrier applications?

A: The G10 enhances safety by providing precise, fast detection (1,000 Hz frequency) of objects or personnel at barriers. Its accuracy and swift response help trigger automated gates or alarms promptly, reducing the risk of unauthorized access or accidents.

Q: What warranty and support does the G10 photoelectric sensor include?

A: The G10 sensor comes with a 1-year warranty, providing assurance of quality and support in case of manufacturing defects or performance issues for the specified period.
