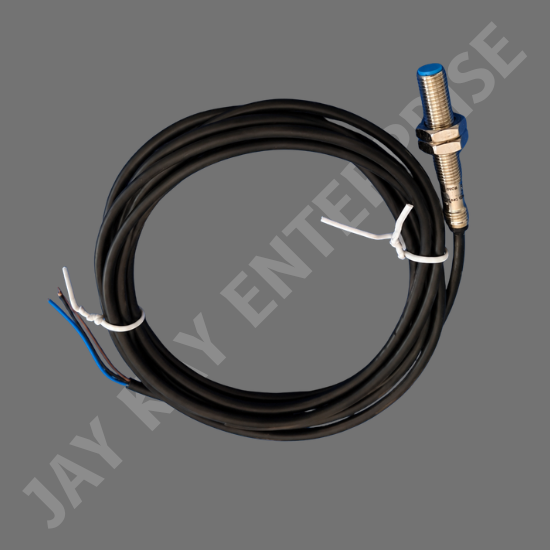

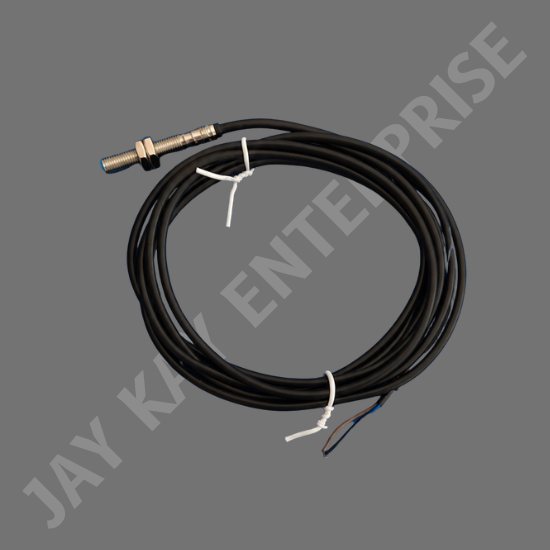

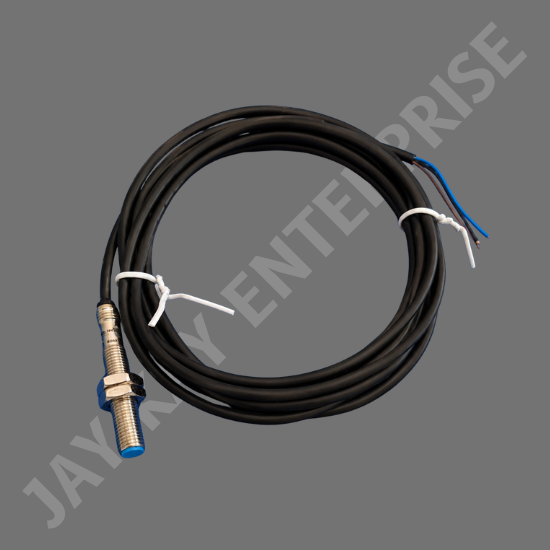

Send InquiryINDUCTIVE PROXIMITY SENSOR
Price 1000.0 INR/ number
MOQ : 1 Number
INDUCTIVE PROXIMITY SENSOR Specification
- Signal Type
- Digital
- Response Time
- 1 Week
- Operating Temperature
- 25 C ... +75 C Celsius (oC)
- Mounting Type
- Mounting nut, steel, nickel-plated (2 x
- Housing Material
- Brass, nickel-plated
- Power Consumption
- 200 mA Ampere
- Features
- Mounting nut, steel, nickel-plated (2 x)
- Spectral Range
- 1.62 mm
- Cable Length
- 2 m Millimeter (mm)
- Measurement Range
- 2 mm
- Application
- Presence detection for car body parts
- Wireless
- No
- Sensor Type
- IME08-02BPSZW2S
- IP Rating
- IP67
- Mounting Thread
- Mounting nut, steel, nickel-plated (2 x
- Product Type
- IME08-02BPSZW2S
- Power Rating
- IP67
- Input
- INDUCTIVE PROXIMITY SENSORS
- Output
- PNP
- Function
- NO
- Usage
- Presence detection for car body parts
- Accuracy
- 8 mm mm
- Resolution
- industrial automation.
- Voltage
- 10 V DC ... 30 V DC Volt (v)
- Weight
- 61 Grams (g)
- Rated Voltage
- 10 V DC ... 30 V DC Volt (V)
- Usage & Applications
- Presence detection for car body parts
- Cable Type
- 2 m
- Warranty
- 1 year
- Display Type
- INDUCTIVE PROXIMITY SENSORS
- Rated Current
- 200 mA Milliampere (mA)
- Conductor
- 0.25 mm
- Material
- Plastic, PA 66
- Frequency
- 4,000 Hz Hertz (HZ)
INDUCTIVE PROXIMITY SENSOR Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 1 Week
About INDUCTIVE PROXIMITY SENSOR
PRODUCT DESCRIPTION
SICKs inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.AT A GLANCE
- Types: M8 to M30.
- Extended sensing ranges: 1.5 mm to 38 mm.
- Electrical configuration: DC 3-/4-wire, DC 2-wire.
- Enclosure rating: IP67.
- Temperature range: 25 C to +75 C.
- Nickel-plated brass housing; plastic sensing face.
YOUR BENEFITS
- High machine availability thanks to rugged design.
- Highly cost-efficient thanks to low purchase costs.
- Wide selection available thanks to extensive standard portfolio.
- High positioning accuracy thanks to precise switching behavior.
ORDERING INFORMATION
- Other models and accessories www.sick.com/IME.
- Product version: IME08.
- Cylindrical thread design: M8.
- Installation type: flush.
- Electrical wiring: DC 3-wir.
