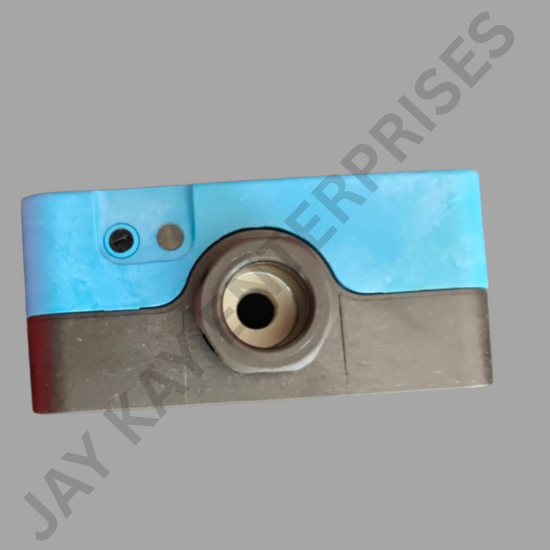

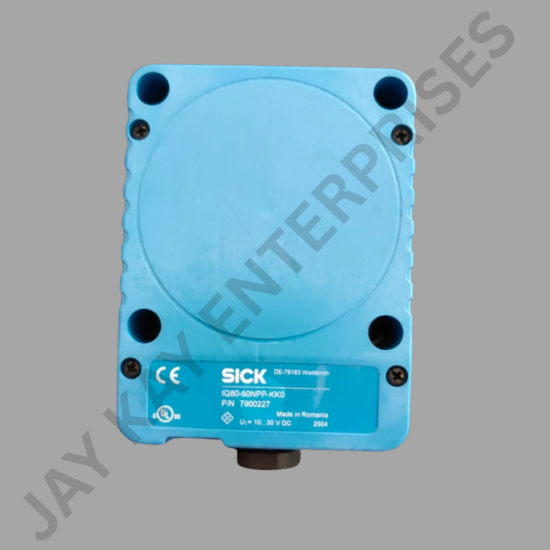

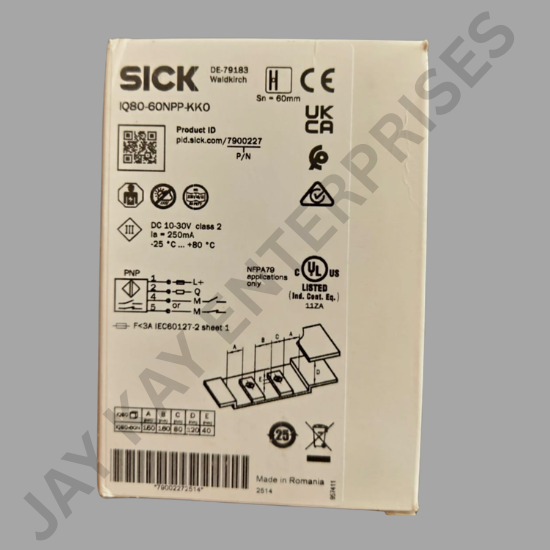

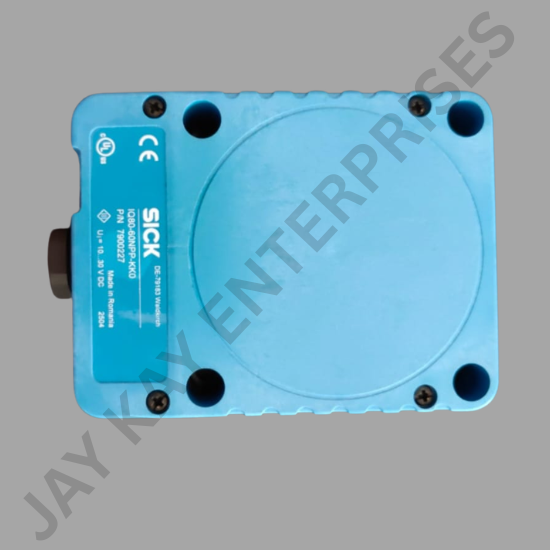

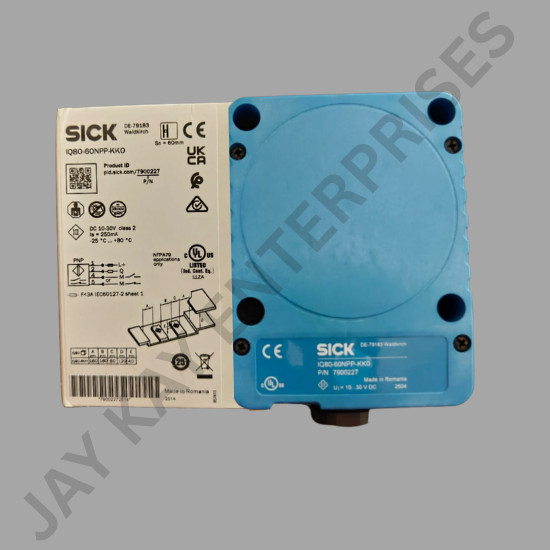

Send InquiryIQL INDUCTIVE PROXIMITY SENSORS
Price 10000.0 INR/ Piece
MOQ : 1 Piece
IQL INDUCTIVE PROXIMITY SENSORS Specification
- Operating Temperature
- 25 C ... +80 C Celsius (oC)
- Measurement Range
- 60 mm
- Application
- Fine positioning the body
- Housing Material
- Plastic, PPE
- IP Rating
- IP65
- Response Time
- 1 Days
- Spectral Range
- 60 mm
- Wireless
- No
- Signal Type
- Digital
- Features
- Standard design
- Cable Length
- 2.5 mm Millimeter (mm)
- Sensor Type
- IQ80-60NPP-KK0
- Power Rating
- IP65
- Product Type
- IQ80-60NPP-KK0
- Input
- INDUCTIVE PROXIMITY SENSORS
- Output
- PNP
- Function
- NC or NO
- Usage
- Fine positioning the body
- Accuracy
- 48.6 mm
- Resolution
- solutions in industrial automation
- Voltage
- 10 V DC ... 36 V DC Volt (v)
- Rated Voltage
- 10 V DC ... 36 V DC Volt (V)
- Usage & Applications
- Fine positioning the body
- Weight
- 0.427 Kilograms (kg)
- Cable Type
- Terminal connection with M20 gland
- Warranty
- 1 year
- Display Type
- INDUCTIVE PROXIMITY SENSORS
- Rated Current
- 250 mA Milliampere (mA)
- Frequency
- 100 Hertz (HZ)
- Material
- Plastic, PPE
IQL INDUCTIVE PROXIMITY SENSORS Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 1 Week
IQL INDUCTIVE PROXIMITY SENSORS About
PRODUCT DESCRIPTION
With an adjustable sensing range of up to 60 mm, the sensors of the IQL product family offer a high degree of detection ease. Thanks to the freely configurable N/O and N/C output function, they also reduce costs in new and existing applications. Due to installation from above and the extended sensing range, the IQL sensors are optimally suited for recessed floor mounting, as is often found in the automotive industry or storage and conveyor technology. The IQL is also the number one choice when it comes to other applications.
AT A GLANCE
- Type: 80 mm x 80 mm
- Longer sensing ranges: 50 mm to 60 mm
- Electrical configuration: DC 3-/4-wire, or AC/DC 2-wire
- Enclosure rating IP65 or IP67
- Temperature range: 25 C to +80 C
- Plastic housing
- Programmable N/O or N/C function
- Sensing range setting via potentiometer
YOUR BENEFITS
- Increase in machine availability
- Reduced mechanical damage
- Longer service life for reduced costs
- Quick and safe installation
ORDERING INFORMATION
- Product version: IQ80
- Sensing range Sn: 60 mm
- Cuboid shape (W x H x D): 80 mm x 105 mm x 40 mm
- Output function: NC or NO
- Installation type: non-flush
- Connection type: terminal connection with M20 gland
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Sick Inductive Proximity Sensor Category

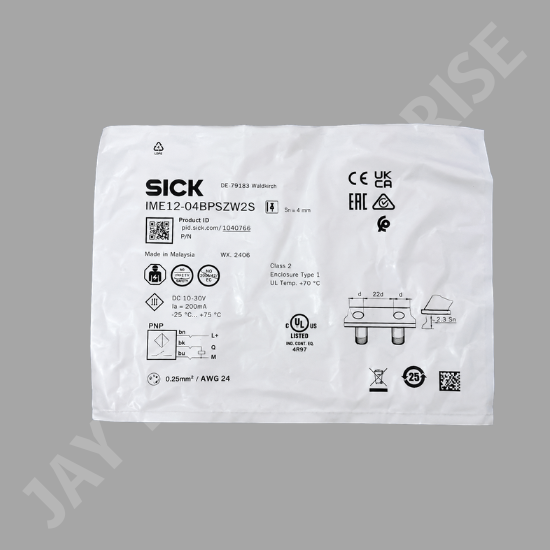

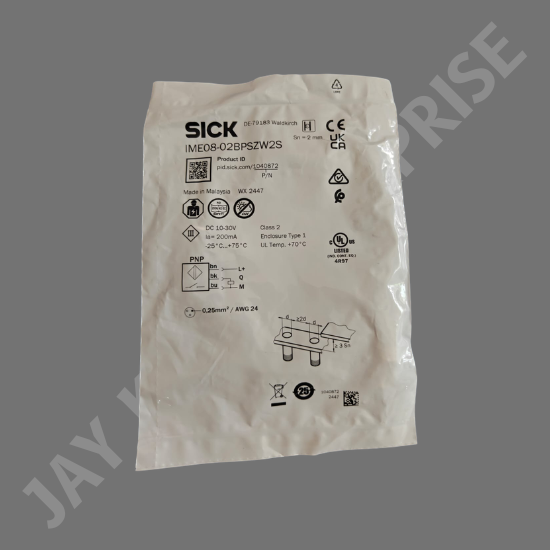

IME INDUCTIVE PROXIMITY SENSOR
