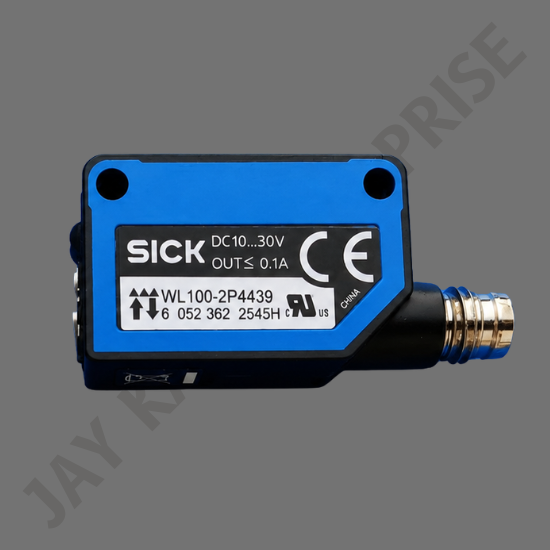

PHOTOELECTRIC SENSOR

Price 3700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

PHOTOELECTRIC SENSOR Specification

Mounting Thread
hole M3

Ingress Protection
A 6) B 7) D 8)

Operating Temperature
25 C ... +55 C Celsius (oC)

Application
Access monitoring for multi-order picking

Wireless
No

Power Consumption
30 mA Ampere

Cable Length
632 nm Nanometer (nm)

Response Time
1 Days

Sensor Type
WL100-2P4439

Sensitivity
Potentiometer

IP Rating
IP67

Housing Material
Plastic, ABS/PC/POM

Spectral Range
0.01 m ... 7.2 m

Measurement Range
0.01 m ... 5.5 m

Features
With minimum distance to reflector (dual lens system)

Signal Type
Digital

Product Type
WL100-2P4439

Power Rating
IP67

Input
photoelectric sensor

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
multi-order picking

Accuracy
280 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Access monitoring for multi-order picking

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Warranty
1 year

Cable Type
Visible red light

Material
Plastic, PMMA

Frequency
1,000 Hz Hertz (HZ)

Rated Current
30 mA Megaampere ( MA)

PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About PHOTOELECTRIC SENSOR

PRODUCT DECRIPTION

W100-2 miniature photoelectric sensors are compatible with all standard detection principles (through-beam photoelectric sensors, photoelectric retro-reflective sensors, photoelectric retro-reflective sensors for detecting transparent objects, energetic sensors, and sensors with background blanking), making them an ideal sensor family for detection applications. The housing design includes M3 threaded mounting holes, spaced one inch apart, that allows for straightforward, standardized, and inexpensive mounting. As a result, the W100-2 product family offers an economical photoelectric sensor solution with outstanding performance.

AT A GLANCE

Reliable detection behavior, rugged housing and immunity to ambient light.
WT100-2 photoelectric proximity sensor (energetic or with background blanking).
WL100-2 photoelectric retro-reflective sensor; variant available for detecting transparent objects.
WS/WE100-2 through-beam photoelectric sensor.
Various connection types available (standard: 2 m cable; M8 male connector, 3-pin; M8 male connector, 4-pin; male cable connector available on request).
Light/dark switching and sensitivity adjustment possible.

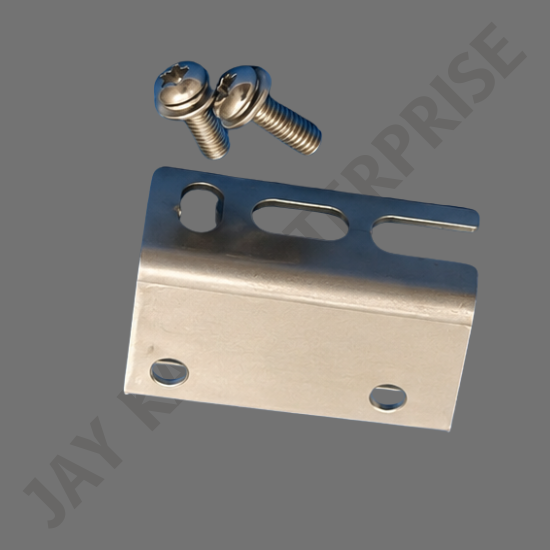

Wide range of accessories

YOUR BENEFITS

Reliable detection in standard applications.
Short downtime and high throughput thanks to reliable object detection.
Ability to handle a wide range of detection principles within a single standardized housing, reducing the number of model variants.
Simple commissioning thanks to easily visible display LEDs.
Easy to set up thanks to user-friendly potentiometer (dependent on model).
Standard housing that is compatible with many commonly used mounting systems.
Easy mounting thanks to 1-inch hole spacing.
High level of operating reserve minimizes susceptibility to contamination

FIELDS OF APPLICATION

Wide range of standard applications that require efficient miniature photoelectric sensors.
Storage and conveyor systems in the logistics industry.
Detection of a wide variety of objects in packaging processes.
Reliable detection of people in door and gate applications
