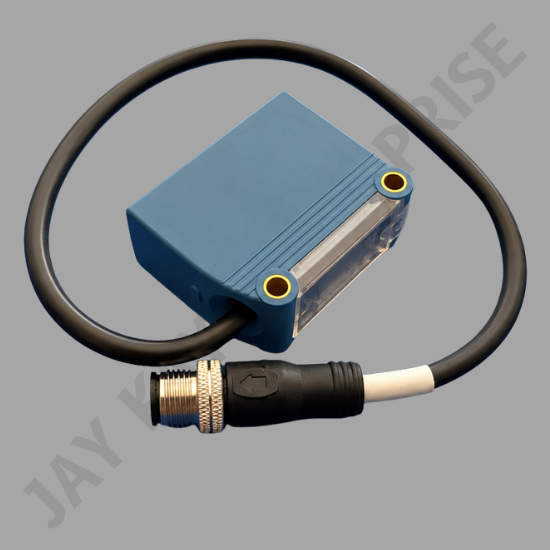

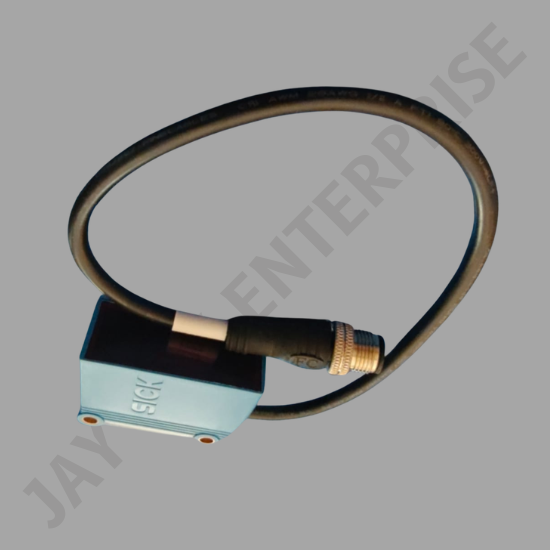

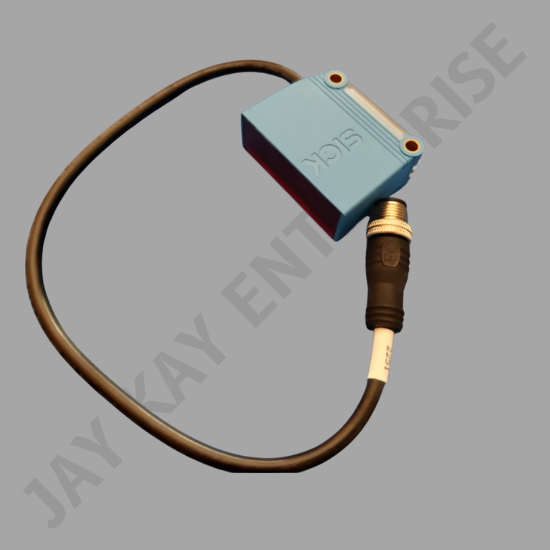

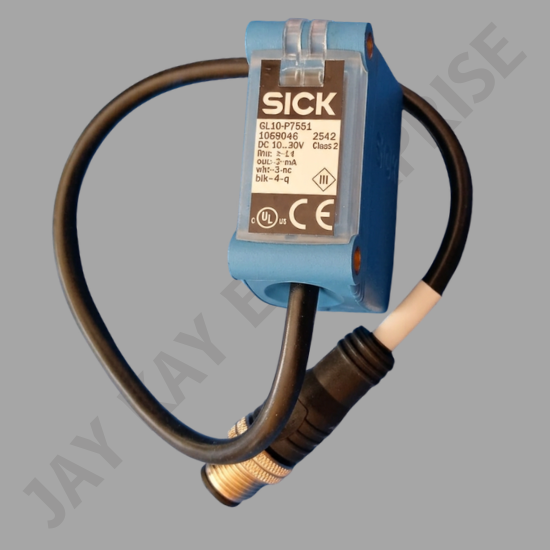

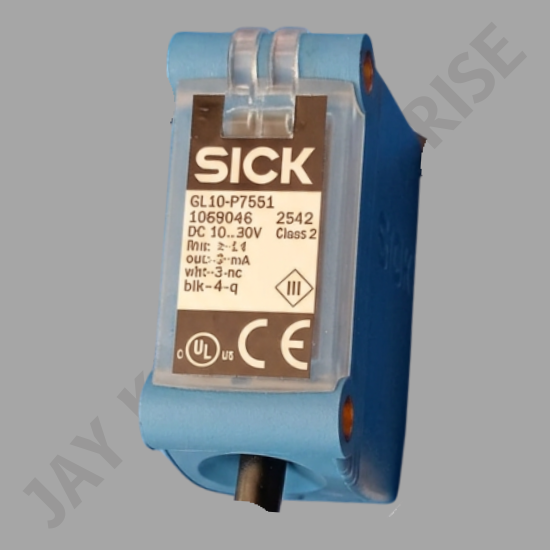

PHOTOELECTRIC SENSOR

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

PHOTOELECTRIC SENSOR Specification

Mounting Thread
hole, 4.2 mm

Application
Monitoring access barriers

Spectral Range
0.15 m ... 12 m

Power Consumption
20 mA Ampere

Ingress Protection
A 6) B 7) C 8) D 9)

Operating Temperature
30 C ... +60 C Celsius (oC)

Mounting Type
hole, 4.2 mm

Signal Type
Digital

Wireless
No

Sensor Type
GL10-P7551

Response Time
1 Days

Features
High functional reliability on foil-wrapped objects

Cable Length
300 mm Millimeter (mm)

Housing Material
Plastic, ABS/PMMA

IP Rating
IP67

Power Rating
IP67

Product Type
GL10-P7551

Input
PHOTOELECTRIC SENSORS

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
58 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
70 g Grams (g)

Cable Type

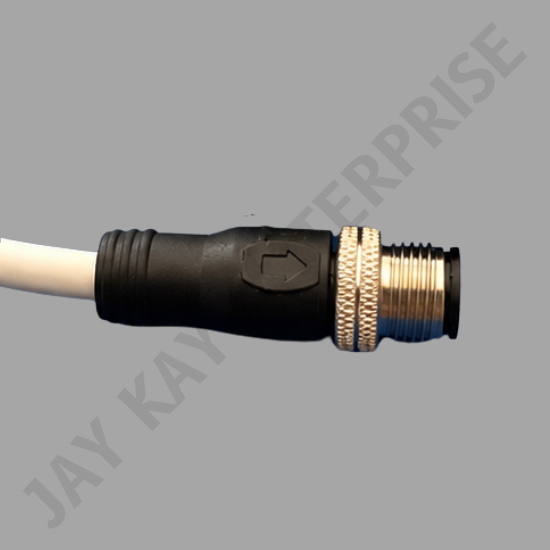

Cable with M12 male connector, 4-pin, 300 mm

Warranty
1 year

Display Type
PHOTOELECTRIC SENSORS

Rated Current
20 mA Milliampere (mA)

Conductor
4-pin

Frequency
500 Hz Hertz (HZ)

Material
plastic

PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About PHOTOELECTRIC SENSOR

PRODUCT DESCRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few seconds.

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors.
