PHOTOELECTRIC SENSORS

Price 4500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PHOTOELECTRIC SENSORS Specification

Features
With minimum distance to reflector (dual lens system)

Measurement Range
0.01 m ... 2.5 m

Power Consumption
30 mA Ampere

Sensitivity
Potentiometer

Wireless
Yes, No

Operating Temperature
25 C ... +55 C Celsius (oC)

Signal Type
Digital

Ingress Protection
A 6) B 7) D 8)

Application
Access monitoring for multi-order picking

IP Rating
IP67

Cable Length
632 Nanometer (nm)

Housing Material
Plastic, ABS/PC/POM

Spectral Range
0.01 m ... 2.5 m

Sensor Type
WL100-2P4429

Response Time
1 Days

Product Type
WL100-2P4429

Power Rating
IP67

Input

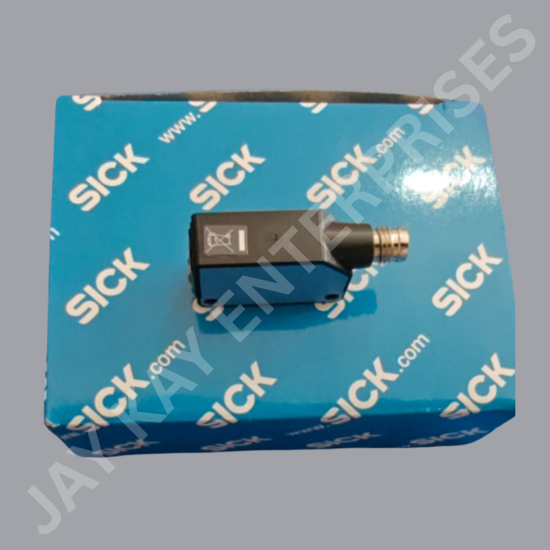

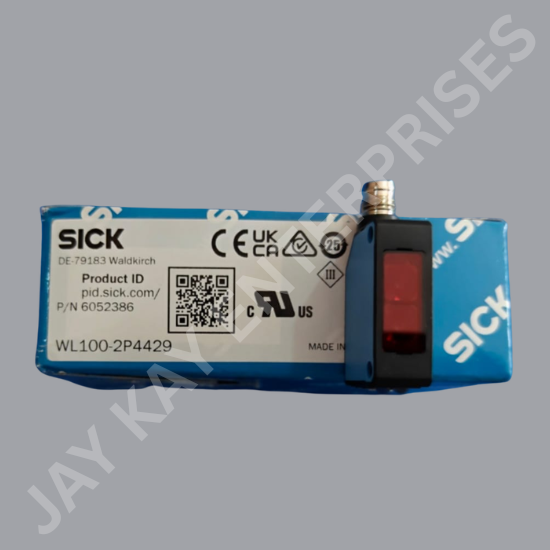

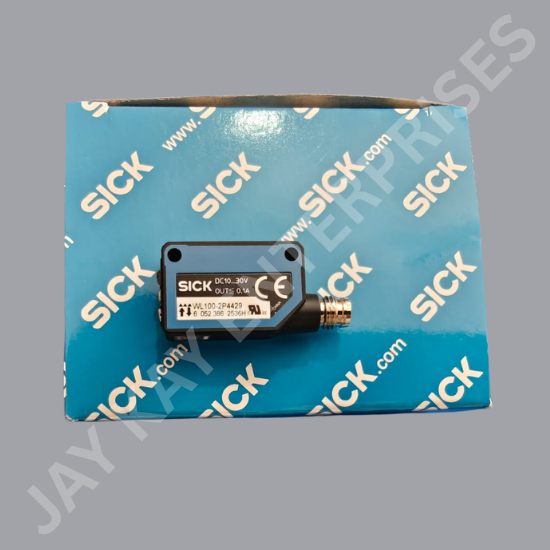

PHOTOELECTRIC SENSORS - WL100-2P4429

Output
PNP

Function
With minimum distance to reflector

Usage
Access monitoring for multi-order picking

Accuracy
140 mm mm

Resolution
solutions in industrial automation

Voltage
10 V DC ... 30 V DC Volt (v)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Usage & Applications
Access monitoring for multi-order picking

Weight
72 Grams (g)

Warranty
1 year

Cable Type

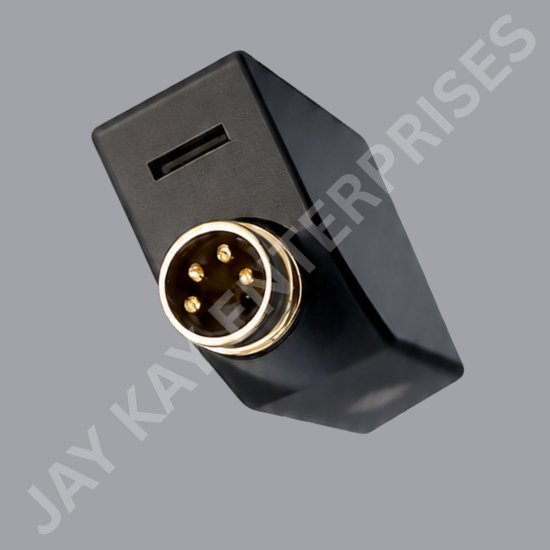

Male connector M8, 4-pin

Display Type
PHOTOELECTRIC SENSORS - WL100-2P4429

Frequency
1000 Hertz (HZ)

Rated Current
30 Milliampere (mA)

Material
Plastic, PMMA

PHOTOELECTRIC SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About PHOTOELECTRIC SENSORS

PRODUCT DESCRIPTION

W100-2 miniature photoelectric sensors are compatible with all standard detection principles (through-beam photoelectric sensors, photoelectric retro-reflective sensors, photoelectric retro-reflective sensors for detecting transparent objects, energetic sensors, and sensors with background blanking), making them an ideal sensor family for detection applications. The housing design includes M3 threaded mounting holes, spaced one inch apart, that allows for straightforward, standardized, and inexpensive mounting. As a result, the W100-2 product family offers an economical photoelectric sensor solution with outstanding performance.

AT A GLANCE

Reliable detection behavior, rugged housing and immunity to ambient light
WT100-2 photoelectric proximity sensor (energetic or with background blanking)
WL100-2 photoelectric retro-reflective sensor; variant available for detecting transparent objects
WS/WE100-2 through-beam photoelectric sensor
Various connection types available (standard: 2 m cable; M8 male connector, 3-pin; M8 male connector, 4-pin; male cable connector available on request)
Light/dark switching and sensitivity adjustment possible
Wide range of accessories

YOUR BENEFITS

Reliable detection in standard applications
Short downtime and high throughput thanks to reliable object detection
Ability to handle a wide range of detection principles within a single standardized housing, reducing the number of model variants
Simple commissioning thanks to easily visible display LEDs
Easy to set up thanks to user-friendly potentiometer (dependent on model)
Standard housing that is compatible with many commonly used mounting systems
Easy mounting thanks to 1-inch hole spacing
High level of operating reserve minimizes susceptibility to contamination

FIELDS OF APPLICATION

Wide range of standard applications that require efficient miniature photoelectric sensors
Storage and conveyor systems in the logistics industry
Detection of a wide variety of objects in packaging processes
Reliable detection of people in door and gate applications
