Send InquirySAFETY SWITCHES
Price 2100.0 INR/ Piece
MOQ : 1 Number
SAFETY SWITCHES Specification
- Response Time
- 1 Days
- Max. Current
- 400 Milliampere (mA)
- Rated Voltage
- 30 V DC Volt (V)
- Circuit Type
- Type 4 (EN ISO 14119)
- Protection Level
- Low coding level (EN ISO 14119)
- Finish Type
- RE11-SA03
- Temperature Range
- 30 C ... +60 C Celsius (oC)
- Product Type
- RE11-SA03
- Power Rating
- IP67
- Contact Resistance
- 1 Nanoohm (n)
- Max. Voltage
- 30 V DC Volt (V)
- Stoke
- 171
- Warranty
- 1 year
- Usage & Applications
- Access protection at the top loader
- Color
- yellow
- Operating Temperature
- 30 C ... +60 C Celsius (oC)
- Cable Type
- PVC
- Weight
- 0.190 Kilograms (kg)
- Display Type
- SAFETY SWITCHES
- Material
- VISTAL
- Frequency
- 1000 Hertz (HZ)
- Features
- Sensor with actuator
- Conductor
- Copper
- Rated Current
- 400 mA Milliampere (mA)
- Current Rating
- IP67
SAFETY SWITCHES Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 1 Week
About SAFETY SWITCHES
PRODUCT DESCRIPTION

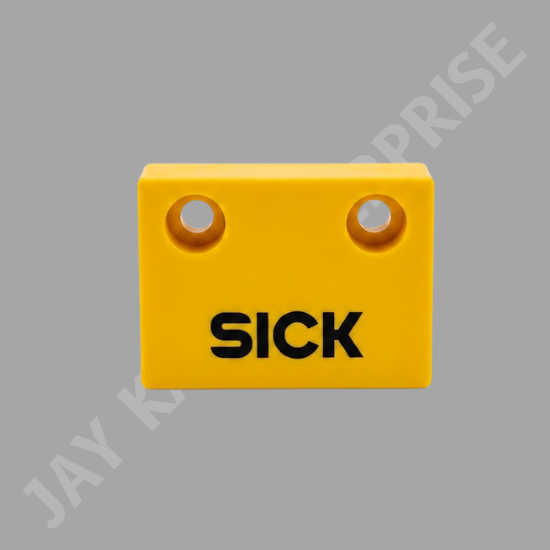

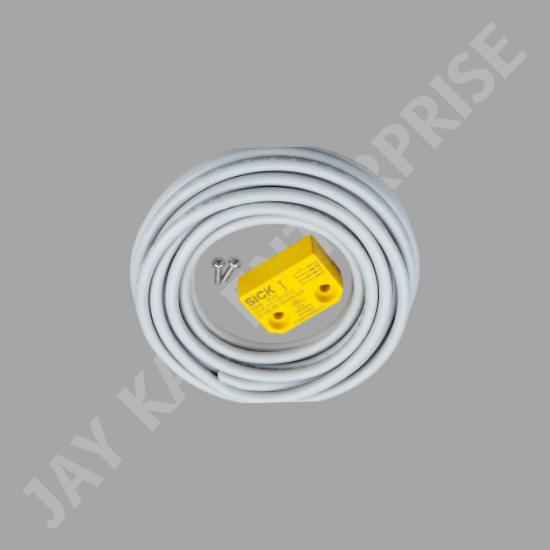

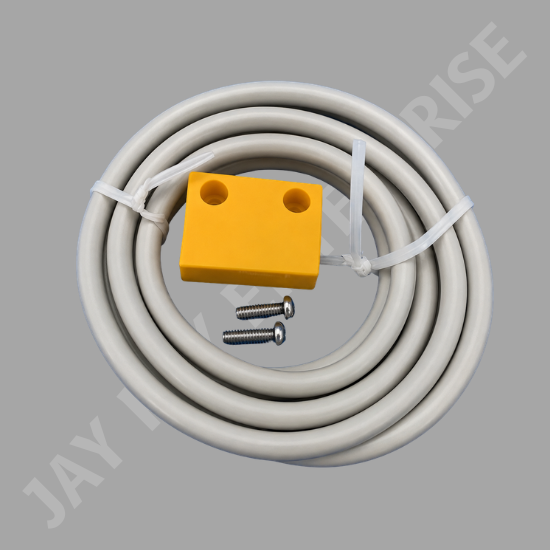

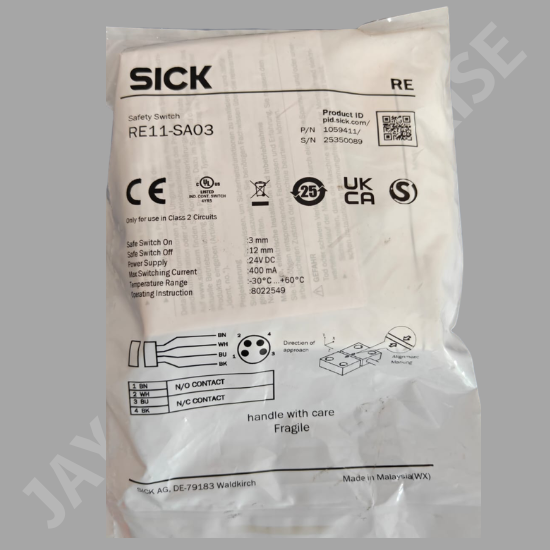

RE1 magnetic safety switches are equipped with either complementary NC/NO contacts or equivalent N/O contacts which are ad dressed directly with coded magnetic actuators. Magnetic safety switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them ideal for applications where precise guidance of the protective device is difficult.AT A GLANCE
- Response range up to 7 mm
- 2 or 3 contacts
- Up to performance level PL e (EN ISO 13849)
- Sensors with plug connector or connected cable
- Flexi Loop-compatible M12 plug connector (depending on variant)
YOUR BENEFITS
- Long service life due to durable and low-maintenance design.
- Space-saving mounting due to compact housing design.
- Just one safety switch in conjunction with a suitable safety module makes it possible to solve applications up to PL e and Cat. 4 (EN ISO 13849).
- High level of machine availability due to high tolerances for door misalignment.
- The devices are easy to clean, making them suitable for contaminated areas or environments with strict hygiene standards.
- Flexi Loop now enables a safe series connection with enhanced diagnostics capabilities and minimal wiring effort.
FIELDS OF APPLICATION
- Monitoring of safety doors and removable guards.
- Applications requiring a high standard of hygiene.
- Applications where precise guidance of the safety door is not possible
