Sick Encoder

• Accuracy
• 0.3 mm

• Application
• Industrial measurement, automation

• Cable Length
• 5 m

• Features
• Maintenance-free, robust design

• Ingress Protection
• IP65 / IP67

• Input
• Cable, 12-wire

• Interface
• SSI, PROFIBUS DP

• Material
• Metal housing

• Measurement Range
• Up to 1,700 m

• Mounting Type
• Panel or bracket mount

• Operating Temperature
• -20C to +70C

• Output
• SSI, PROFIBUS DP

• Power Consumption
• Max. 3 W

• Product Type
• Linear Draw Encoder

• Resolution
• 0.1 mm

• Sensor Type
• Magnetostrictive

• Voltage
• 32 V

• Weight
• Approx. 4 kg

• Accuracy
• <+- 2 mm

• Cable Length
• Customizable

• Function
• Position measurement

• Housing Material
• Aluminum alloy

• Ingress Protection
• IP65

• Interface
• Wired connection

• Material
• Metal housing

• Measurement Range
• Up to 20 m

• Mounting Type
• Threaded mounts

• Operating Temperature
• -20C to +70C

• Output
• Incremental signals

• Power Consumption
• < 0.8 W (without load)

• Product Type
• Linear and wire draw Encoder

• Resolution
• 0.05 mm

• Sensor Type
• Draw Wire

• Usage
• Industrial automation

• Voltage
• 32 V

• Weight
• 5.5 kg

• Application
• Industrial automation

• Cable Length
• 2 m

• Features
• Compact design

• Function
• Speed & position sensing

• Housing Material
• Metal

• IP Rating
• IP65

• Ingress Protection
• IP65

• Input
• Electric

• Interface
• Cable output

• Material
• Metal

• Measurement Range
• 50 mm

• Mounting Thread
• Standard metric thread

• Mounting Type
• Shaft mounting

• Operating Temperature
• -20C to +85C

• Output
• Incremental signals

• Power Consumption
• Low

• Product Type
• Incremental Encoder

• Resolution
• Up to 2500 lines

• Response Time
• Fast

• Sensitivity
• High precision

• Sensor Type
• Optical encoder

• Signal Type
• Other, TTL/HTL compatible

• Usage
• Industrial

• Voltage
• 5-30 V DC

• Weight
• Approx. 200 g

• Wireless
• No

• Accuracy
• High precision

• Application
• Motor feedback, Position control, Speed measurement

• Cable Length
• 2 meters

• Features
• Compact design, Robust construction, Easy installation

• Function
• Rotary position and speed feedback

• Housing Material
• Metal

• IP Rating
• IP54

• Ingress Protection
• IP54

• Input
• Shaft

• Interface
• Cable connection

• Material
• Aluminium housing

• Measurement Range
• 0 to 360 continuous

• Mounting Thread
• Servo flange

• Mounting Type
• Flange mounting, 36 mm housing diameter

• Operating Temperature
• -20 C to +85 C

• Output
• PUSH-PULL, TTL/RS422

• Power Consumption
• Max 0.6 W

• Product Type
• Incremental Encoder

• Resolution
• 1024 pulses per revolution (PPR)

• Response Time
• < 1 s

• Sensitivity
• Standard for industrial use

• Sensor Type
• Optical rotary encoder

• Signal Type
• Other, Incremental (A, B, Z channels), Other, A, B, Z (and /A, /B, /Z) Quadrature Signals

• Spectral Range
• Visible

• Usage
• Industrial automation

• Voltage
• 4.5 V DC to 5.5 V DC

• Weight
• Approx. 120 g

• Wireless
• No, No

• Accuracy
• 0.2 % %

• Cable Length
• 1.5 Meter (m)

• Cable Type
• Cable, radial, 1.5 m

• Display Type
• ABSOLUTE ENCODERS

• Housing Material
• AlMgSi

• IP Rating
• IP65

• Ingress Protection
• yes

• Input
• ABSOLUTE ENCODERS

• Material
• PVC

• Measurement Range
• 336

• Operating Temperature
• 30 C ... +80 C Celsius (oC)

• Output
• 4 ... 20 mA

• Power Consumption
• < 80 mA Ampere

• Power Rating
• IP65

• Product Type
• ACM36-K1K0-K01

• Rated Current
• 80 Milliampere (mA)

• Rated Voltage
• 19 ... 33 V DC Volt (V)

• Resolution
• 0.11 ... 1.93 1)

• Response Time
• 1 Days

• Sensor Type
• ACM36-K1K0-K01

• Signal Type
• Digital

• Spectral Range
• 336

• Voltage
• 19 ... 33 V DC Volt (v)

• Warranty
• 1 year

• Weight
• 0.1 kg Kilograms (kg)

• Wireless
• No

• Application
• Rotary valve operation for carbon and sinter supply

• Cable Type
• Male connector, 2x, M12, 5-pin, axial Female connector, 1x, M12, 5-pin, axial

• Display Type
• ABSOLUTE ENCODERS

• Frequency
• 8760 Hertz (HZ)

• Housing Material
• Aluminum

• IP Rating
• IP65

• Input
• ABSOLUTE ENCODERS

• Material
• Aluminum

• Measurement Range
• 40 C ... +100 C

• Operating Temperature
• 10 C ... +70 C Celsius (oC)

• Power Rating
• IP65

• Product Type
• A3M60B-S4PB013x13

• Rated Voltage
• 10 ... 32 V Volt (V)

• Resolution
• 8,192 (13 bit)

• Response Time
• 1 Days

• Signal Type
• Digital

• Spectral Range
• 40 C ... +100 C

• Usage
• Rotary valve operation for carbon and sinter supply

• Usage & Applications
• Rotary valve operation for carbon and sinter supply

• Voltage
• 10 ... 32 V Volt (v)

• Warranty
• 1 year

• Weight
• 0.28 kg Kilograms (kg)

• Wireless
• Yes

• Accuracy
• 0.05 C

• Application
• Industrial motion & position measurement

• Cable Type
• M23, 12-pin male connector, radial

• Conductor
• Not specified

• Display Type
• NONE

• Features
• 6 signal channels; reference signal; reverse-polarity protection

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Incremental position / rotary measurement

• Housing Material
• Aluminium

• IP Rating
• IP65 / IP67

• Ingress Protection
• IP65 / IP67

• Input
• 10 32 V DC

• Interface
• Incremental

• Material
• Aluminium

• Measurement Range
• Rotary, continuous

• Mounting Thread
• M5

• Mounting Type
• Flange mount

• Operating Temperature
• 40 C to +100 C Celsius (oC)

• Output
• TTL / RS-422

• Phase
• A, B + reference signal

• Power Consumption
• 0.5 Watt (W)

• Power Rating
• 0.5 W (without load)

• Product Type

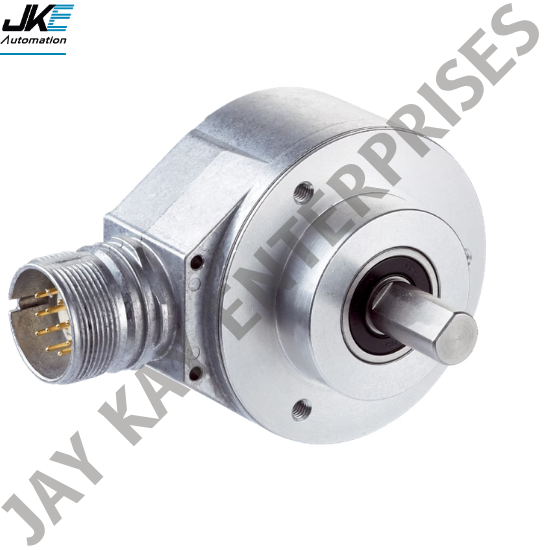

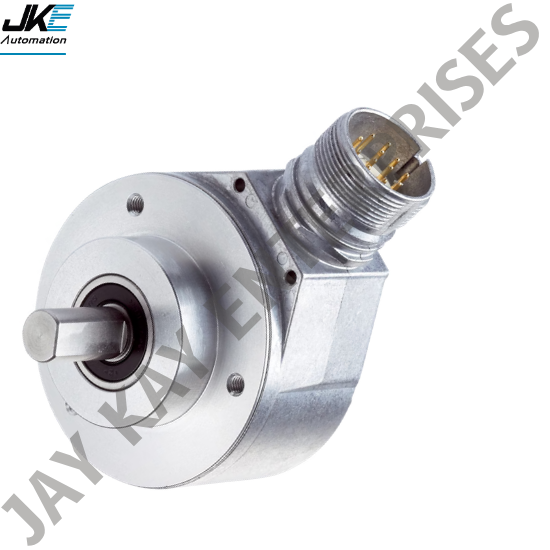

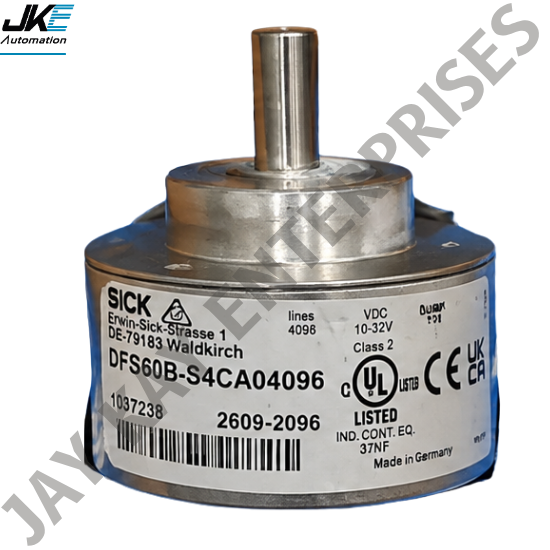

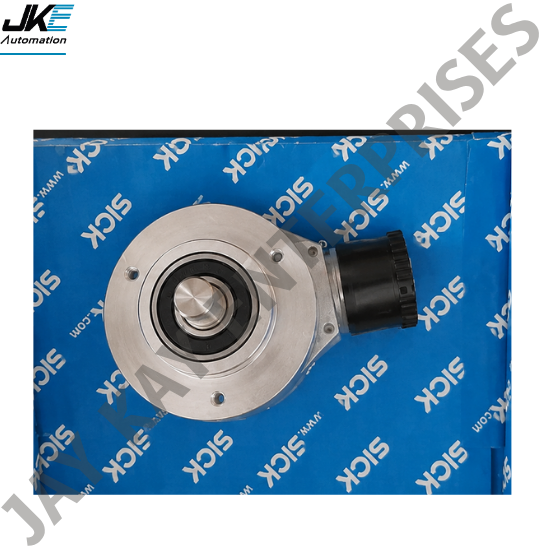

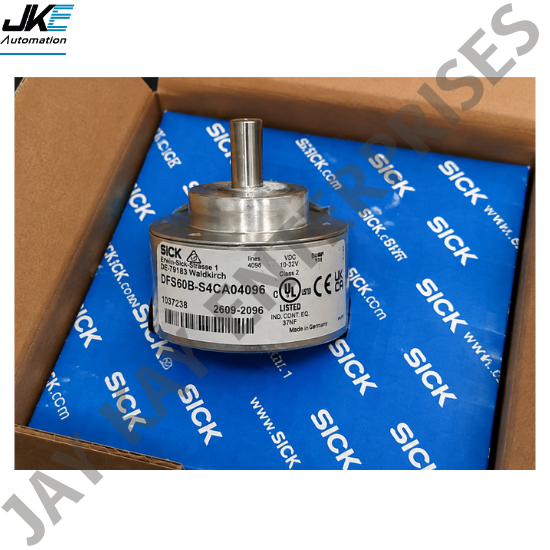

• DFS60B-S4CA04096 Incremental Encoder

• Rated Current
• 40 mA Milliampere (mA)

• Rated Voltage
• 10-32 Volt (V)

• Resolution
• 4,096 pulses/revolution

• Response Time
• 1 Hours

• Sensitivity
• Not specified

• Sensor Type
• Incremental rotary encoder

• Signal Type
• Digital

• Spectral Range
• Not applicable

• Usage
• Industrial automation / motion control

• Usage & Applications
• Industrial automation / motion control

• Voltage
• 10 32 Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.318 Kilograms (kg)

• Wireless
• No

• Accuracy
• 0.05 C

• Application
• Industrial position & speed measurement

• Cable Type
• M23, 12-pin male connector, radial

• Conductor
• Not specified

• Display Type
• None

• Features
• Programmable output voltage, zero-pulse position/width and pulse count

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Rotary / incremental position measurement

• Housing Material
• Aluminium

• IP Rating
• IP65 / IP67

• Ingress Protection
• IP65 (shaft side), IP67 (housing side)

• Input
• 10 32 V DC

• Interface
• Incremental, 6-channel

• Material
• ALUMINIUM

• Measurement Range
• 3,600 pulses/revolution

• Mounting Thread
• M4

• Mounting Type
• Face-mount flange, solid shaft

• Operating Temperature
• 30 C to +100 C Celsius (oC)

• Output
• HTL / Push-pull

• Phase
• A, B + reference signal

• Power Consumption
• 0.5 W (without load) Watt (W)

• Power Rating
• 0.5 W (without load)

• Product Type

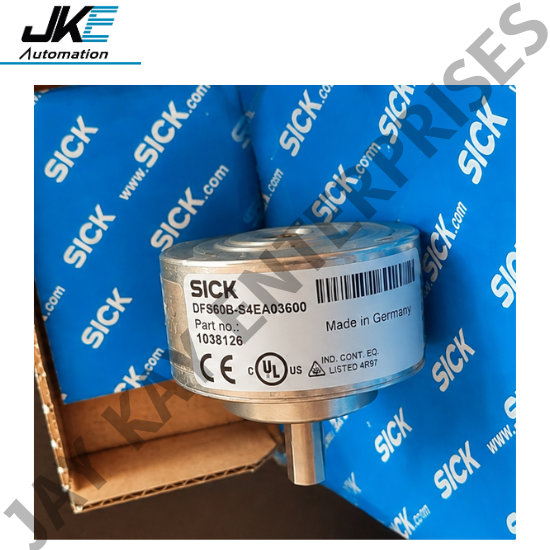

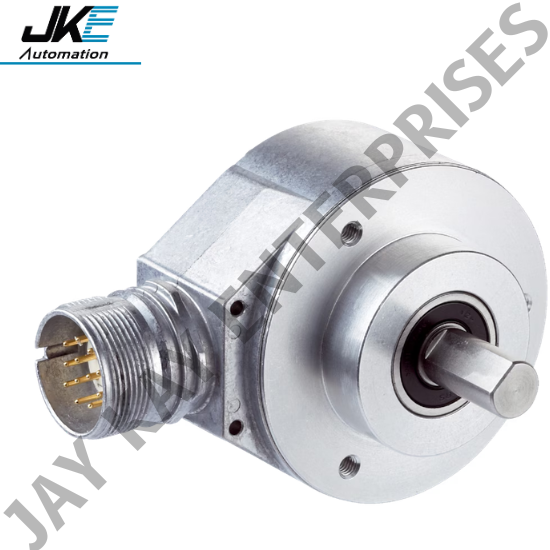

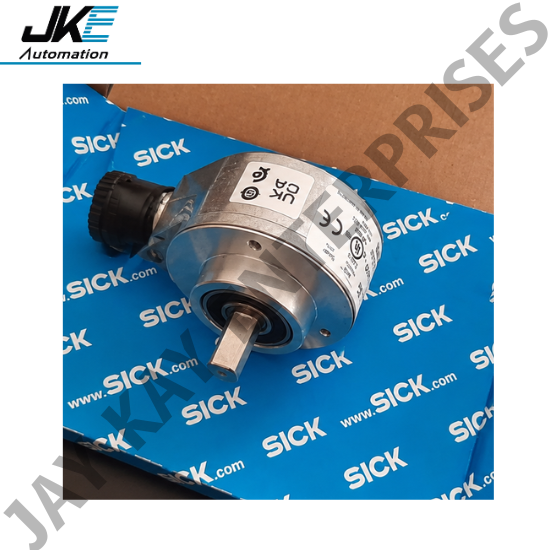

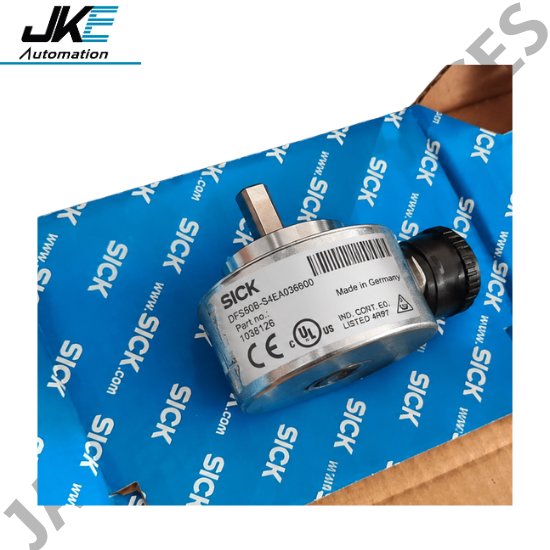

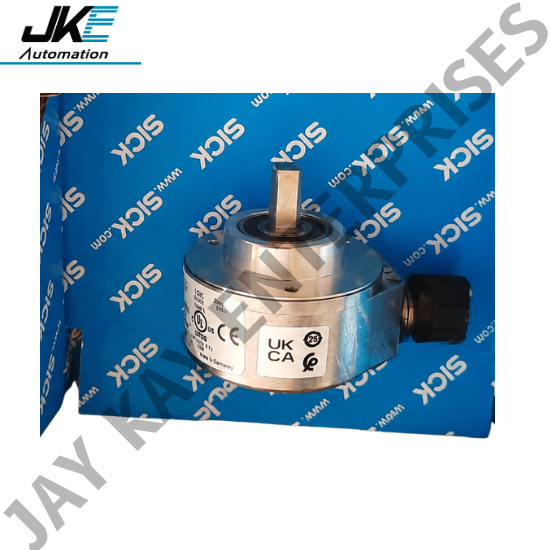

• DFS60B-S4EA03600 Incremental Encoder

• Rated Current
• 30 Milliampere (mA)

• Rated Voltage
• 10-32 Volt (V)

• Resolution
• 3,600 pulses/revolution

• Response Time
• 1 Hours

• Sensitivity
• Not specified

• Sensor Type
• Incremental rotary encoder

• Signal Type
• Digital

• Spectral Range
• Not applicable

• Usage
• Industrial automation & motion control

• Usage & Applications
• Factory automation, motion control, rotary position/speed measurement

• Voltage
• 10-32 Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.313 Kilograms (kg)

• Wireless
• No

• Application
• Industrial automation, motion control, positioning

• Cable Type
• M12, 8-pin radial male connector

• Conductor
• 8-pin

• Display Type
• INCREMENTAL ENCODERS

• Features
• 160 PPR, blind hollow shaft, 15 mm shaft, reverse-polarity & short-circuit protection

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Rotary position / motion feedback

• Housing Material
• Aluminum die cast

• IP Rating
• IP67 (housing side), IP65 (shaft side)

• Ingress Protection
• IP67

• Input
• 10 32 V DC

• Interface
• Push-Pull

• Material
• Aluminum die cast

• Measurement Range
• N/A

• Mounting Thread
• N/A

• Mounting Type
• Flange Mount

• Operating Temperature
• 40 C ... +100 C 1) 30 C ... +100 C 2 Celsius (oC)

• Output
• HTL / Push-Pull

• Phase
• N/A

• Power Rating
• 0.5 W

• Product Type

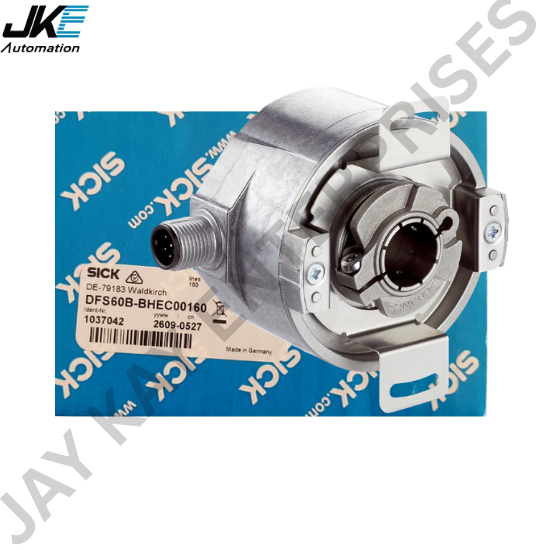

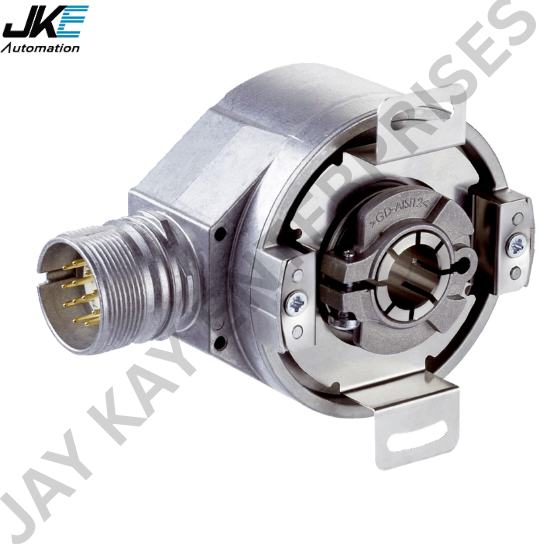

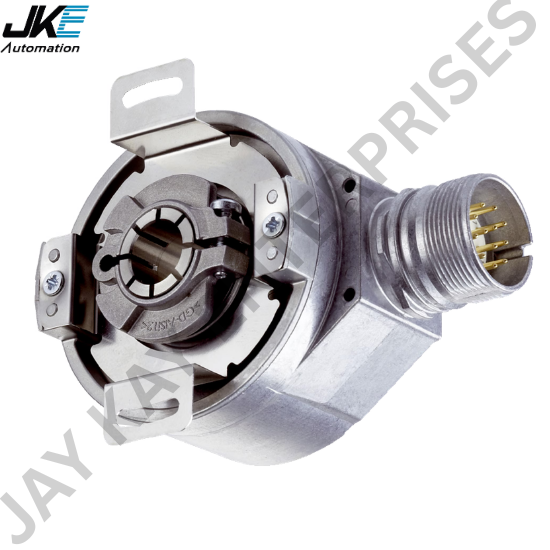

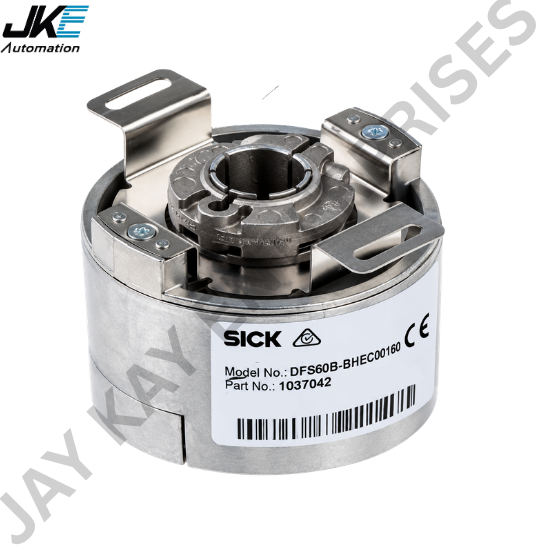

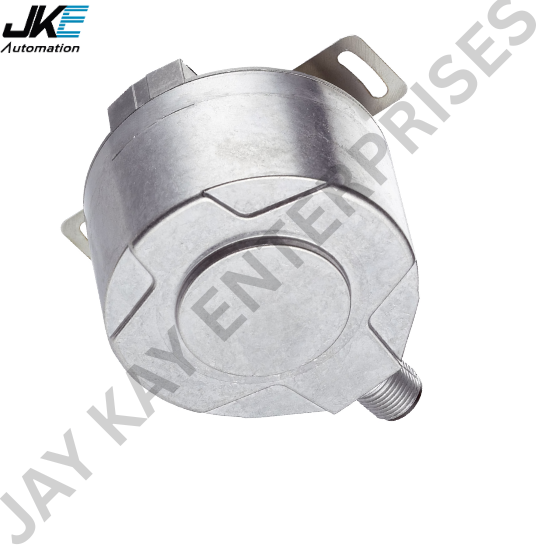

• SICK DFS60B-BHEC00160 Incremental Encoder

• Rated Current
• 30 Milliampere (mA)

• Rated Voltage
• 10 32 V DC Volt (V)

• Resolution
• 160 PPR

• Response Time
• 1 Hours

• Sensitivity
• N/A

• Sensor Type
• Incremental Encoder

• Signal Type
• Digital

• Spectral Range
• N/A

• Usage
• Industrial automation / motion control

• Voltage
• 10 32 V DC Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.292 Kilograms (kg)

• Wireless
• No

• Application
• Industrial Automation / Motion Control

• Cable Type
• M23, 12-pin radial male connector

• Conductor
• 12-pin

• Display Type
• DFS60B-TGAA02500

• Features
• High-resolution incremental encoder, programmable, remote zero set

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Rotary position / motion feedback

• Housing Material
• Aluminum

• IP Rating
• IP65 / IP67

• Ingress Protection
• IP65 / IP67

• Input
• 4.5 5.5 V DC

• Interface
• RS-422

• Material
• Aluminum

• Measurement Range
• N/A

• Mounting Thread
• N/A

• Mounting Type
• Through Hollow Shaft

• Operating Temperature
• 40 C ... +100 C 2) 30 C ... +100 C 3 Celsius (oC)

• Output
• TTL / RS-422

• Phase
• N/A

• Power Rating
• Without load

• Product Type

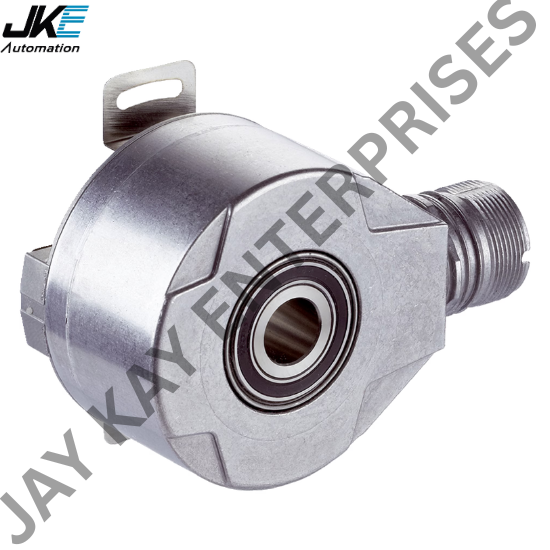

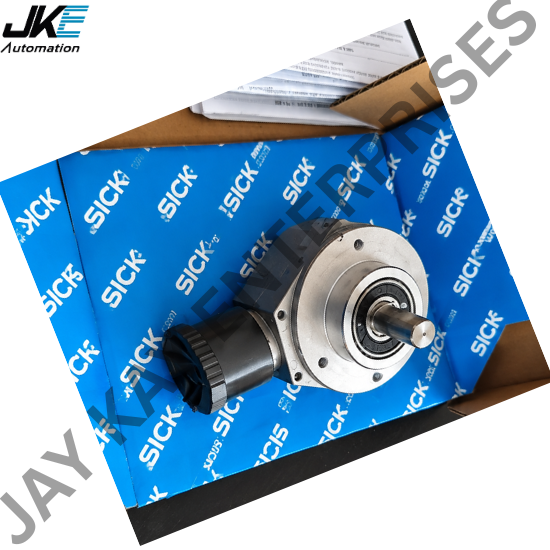

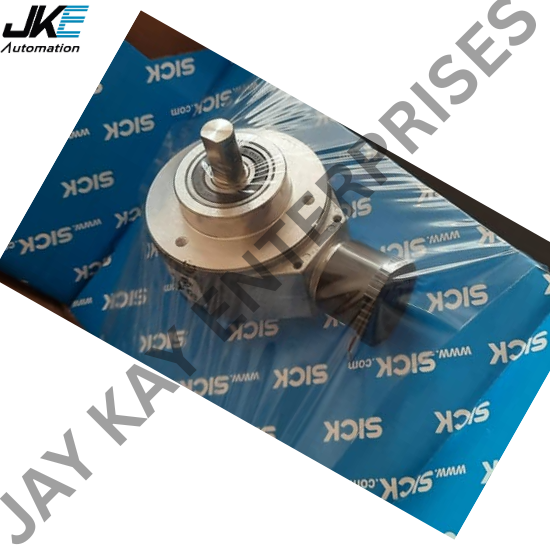

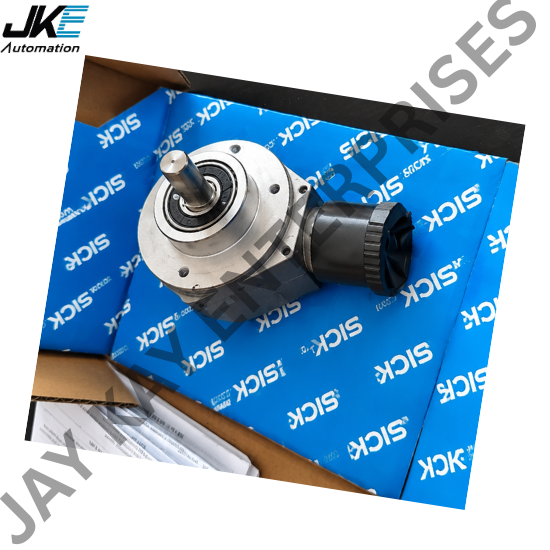

• SICK DFS60B-TGAA02500 Incremental Encoder

• Rated Current
• 40 Milliampere (mA)

• Rated Voltage
• 4.5 ... 5.5 V Volt (V)

• Resolution
• 2500 PPR

• Response Time
• 1 Hours

• Sensitivity
• N/A

• Sensor Type
• Incremental Encoder

• Signal Type
• Digital

• Spectral Range
• N/A

• Usage
• Industrial Automation

• Usage & Applications
• Factory Automation / Motion Control / Positioning

• Voltage
• 4.5 ... 5.5 V Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.317 Kilograms (kg)

• Wireless
• No

• Application
• Motor / Motion Control

• Cable Type
• Universal 8-wire cable, 1.5 m

• Conductor
• 8-wire

• Display Type
• N/A

• Features
• 2048 PPR, through hollow shaft, short-circuit protection

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Rotary Position / Motion Feedback

• Housing Material
• Aluminum die cast

• IP Rating
• IP65

• Ingress Protection
• IP65

• Input
• 4.5 5.5 V DC

• Interface
• TTL / RS-422

• Material
• Stainless steel shaft / Aluminum flange & housing

• Measurement Range
• N/A

• Mounting Thread
• N/A

• Mounting Type
• Front Clamp / Flange Mount

• Operating Temperature
• 40 C to +100 C Celsius (oC)

• Output
• TTL / RS-422

• Phase
• A, B, Z (with complementary signals)

• Power Rating
• 40 mA operating current

• Product Type
• Incremental Encoder

• Rated Current
• 40 Milliampere (mA)

• Rated Voltage
• 4.5 5.5 V DC Volt (V)

• Resolution
• 2048 PPR

• Response Time
• 1 Hours

• Sensitivity
• N/A

• Sensor Type
• SICK Incremental Encoder

• Signal Type
• Digital

• Spectral Range
• N/A

• Usage
• Industrial Automation

• Usage & Applications
• Motor feedback, motion control, industrial automation

• Voltage
• 4.5 5.5 V DC Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.361 Kilograms (kg)

• Wireless
• No

• Application
• Motor / Motion Control

• Cable Type
• Universal 8-wire Cable

• Conductor
• 8-wire

• Features
• 2500 PPR, 10 mm Blind Hollow Shaft, Short-Circuit Protection

• Frequency
• 600 Kilohertz ( KHZ )

• Function
• Rotary Position / Motion Feedback

• Housing Material
• Aluminum die cast

• IP Rating
• IP67

• Ingress Protection
• IP67

• Input
• 10 32 V DC

• Interface
• Incremental

• Material
• Aluminum Housing / Stainless Steel Shaft

• Mounting Thread
• N/A

• Mounting Type
• Blind Hollow Shaft / Front Clamp

• Operating Temperature
• 40 C to +100 C Celsius (oC)

• Output
• HTL / Push-Pull

• Phase
• A, B, Z

• Power Rating
• 40 mA operating current

• Product Type
• Incremental Encoder

• Rated Current
• 40 Milliampere (mA)

• Rated Voltage
• 10 32 V DC Volt (V)

• Resolution
• 2500 PPR

• Response Time
• 1 Hours

• Sensor Type
• Optical Incremental Encoder

• Signal Type
• Digital

• Usage
• Industrial Automation

• Usage & Applications
• Motor Feedback, Motion Control, Industrial Automation

• Voltage
• 10 32 V DC Volt (v)

• Warranty
• 1 YEAR

• Weight
• 0.377 Kilograms (kg)

• Wireless
• No
