SICK WIRE DRAW ENCODERSK

• Accuracy
• 0.5 %

• Application
• Pallet handling with narrow aisle forklifts at great heights

• Cable Length
• 1.5 m Meter (m)

• Cable Type
• Cable, radial, 1.5 m

• Conductor
• 3-wire

• Display Type
• WIRE DRAW ENCODERS - BCG08-K1KM03PP

• Features
• Robust wire-draw linear encoder with 0 3 m measuring range, 4 20 mA analog output, compact design, and IP65 protection.

• Function
• linear position/displacement measure

• Housing Material
• Plastic, Noryl

• IP Rating
• IP65

• Ingress Protection
• IP65

• Input
• WIRE DRAW ENCODERS - BCG08-K1KM03PP

• Interface
• 4 20 mA analog interface.

• Material
• plastic

• Measurement Range
• 0 3 meter (3000 mm).

• Mounting Thread
• hole M4.

• Mounting Type
• Flange mounting

• Operating Temperature
• 30 C ... +70 C Celsius (oC)

• Output
• 4 20 mA analog

• Power Consumption
• 80 Ampere

• Power Rating
• IP65

• Product Type
• BCG08-K1KM03PP

• Rated Current
• 80 mA Milliampere (mA)

• Rated Voltage
• 19 V DC ... 33 V DC Volt (V)

• Resolution
• 0.08 mm

• Response Time
• 1 Days

• Sensitivity
• 5.33 A/mm

• Sensor Type
• BCG08-K1KM03PP

• Signal Type
• Digital

• Usage
• Pallet handling with narrow aisle forklifts at great heights

• Usage & Applications
• Pallet handling with narrow aisle forklifts at great heights

• Voltage
• 19 V DC ... 33 V DC Volt (v)

• Warranty
• 1 year

• Weight
• 0.608 Kilograms (kg)

• Wireless
• No

• Accuracy
• 0.15% of full scale

• Application
• Position measurement in machinery, linear displacement feedback, factory automation

• Cable Length
• Up to 8 meters (sensing cable)

• Features
• Maintenance-free, robust housing, easy installation, compact design

• Function
• Position/Distance Measurement

• Housing Material
• Aluminum/Metal

• IP Rating
• IP65

• Ingress Protection
• IP65

• Input
• 24V DC

• Interface
• SSI, Analog, Incremental, CANopen (model dependent)

• Material
• Aluminum, Stainless Steel

• Measurement Range
• 0 - 8,000 mm

• Mounting Thread
• Standard Flange Mount

• Mounting Type
• Flange

• Operating Temperature
• -40C to +80C

• Output
• Incremental/Analog (depending on model)

• Power Consumption
• Typically <3W

• Product Type
• Wire Draw Encoder

• Resolution
• 0.08 mm

• Response Time
• 10 ms

• Sensor Type
• Draw-wire displacement sensor

• Signal Type
• Other, Incremental or Analog Output

• Usage
• Industrial Automation

• Voltage
• 24 VDC

• Weight
• Approx. 2.1 kg

• Wireless
• No

• Accuracy
• 0 2 m mm

• Application
• Industrial Automation / Position Measurement

• Cable Type
• M12, 5-pin connector

• Conductor
• 5-pin

• Display Type
• WIRE DRAW ENCODERS

• Features
• Programmable/configurable, absolute measurement, high-resolution

• Function
• Absolute Position Measurement

• Housing Material
• Aluminum die cast, nickel-plated / Aluminum (anodized)

• IP Rating
• IP64 (mechanism), IP67 (encoder)

• Ingress Protection
• IP64 (wire-draw mechanism)

• Input
• 10 32 V DC

• Interface
• PROFIBUS DP

• Material
• Highly flexible stranded stainless steel wire (1.4401 / V4A)

• Measurement Range
• 0 2 m

• Mounting Type
• Mechanical mounting / Wire-draw mounting

• Operating Temperature
• 10 C to +70 C Celsius (oC)

• Output
• 1.790

• Power Consumption
• 1.5 W Watt (W)

• Power Rating
• 1.5 W

• Product Type

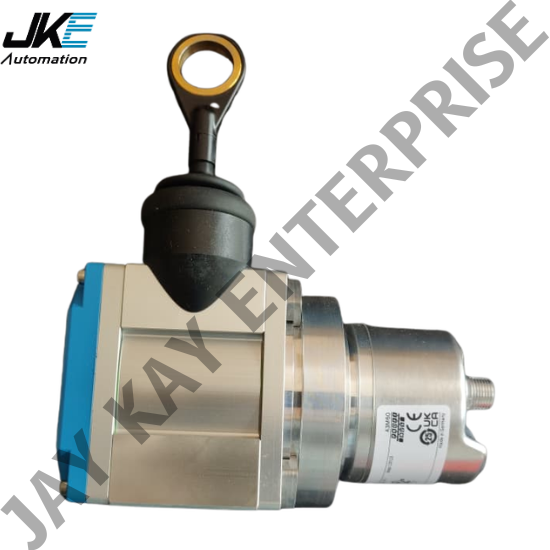

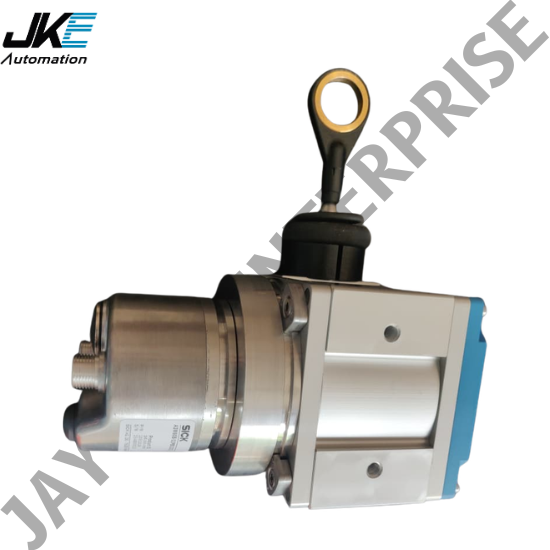

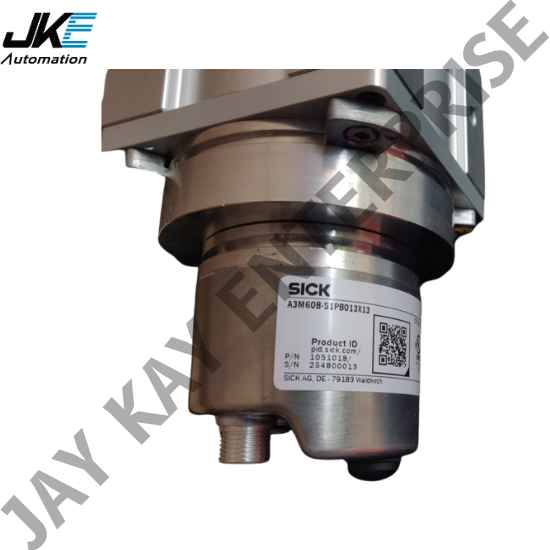

• BTF08-P1BM0241

• Rated Voltage
• 10 32 V DC Volt (V)

• Resolution
• 0.02 mm

• Response Time
• 1 Hours

• Sensitivity
• N/A

• Sensor Type
• Absolute Encoder

• Signal Type
• Digital

• Spectral Range
• N/A

• Usage
• Position Measurement / Industrial Automation

• Usage & Applications
• Position measurement, industrial automation, machine positioning

• Voltage
• 10 32 V DC Volt (v)

• Warranty
• 1 YEAR

• Weight
• 1.790 Kilograms (kg)

• Wireless
• No
