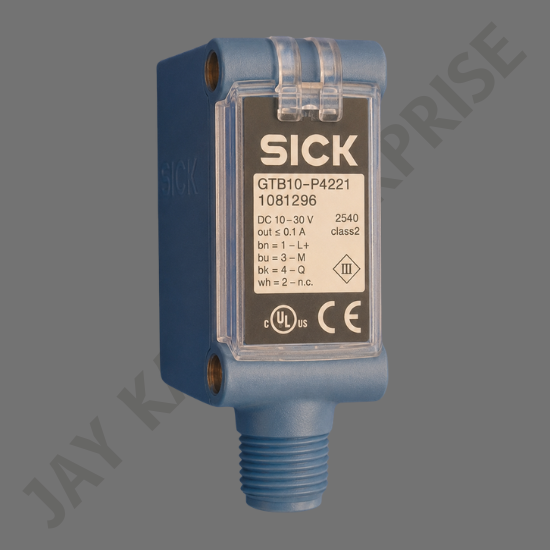

G10 PHOTOELECTRIC SENSOR

Name: G10 PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 3900.0 INR
Availability: InStock

Price 3900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G10 PHOTOELECTRIC SENSOR Specification

Cable Length
850 nm Nanometer (nm)

Mounting Type
hole, 4.2 mm

Operating Temperature
30 C ... +60 C Celsius (oC)

Signal Type
Digital

Wireless
No

Spectral Range
20 mm ... 1,200 mm

Power Consumption
20 mA Megawatt (MW)

Mounting Thread
hole, 4.2 mm

Sensor Type
GTB10-P4221

IP Rating
IP67

Features
Photoelectric proximity sensor

Response Time
1 Week

Measurement Range
20 mm

Ingress Protection
A 5) B 6) C 7) D 8)

Housing Material
Plastic, ABS/PMMA

Product Type
GTB10-P4221

Power Rating
IP67

Input
PNP

Output
PNP

Function
Photoelectric proximity sensor

Accuracy
20 mm

Voltage
10 V DC ... 30 V DC Volt (v)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
35 g Grams (g)

Cable Type
Infrared light

Warranty
1 year

Display Type
Photoelectric proximity sensor

Conductor
M12, 4-pin

Frequency
1,000 Hz Hertz (HZ)

Rated Current
100 mA Milliampere (mA)

Material
Plastic

G10 PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About G10 PHOTOELECTRIC SENSOR

PRODUCT DESRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot.
Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few seconds.

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors.

FIELDS OF APPLICATION

Logistics: Storage & Conveyor, especially pallet detection.
Machine builders (e.g. packaging, handling, wood processing, paper).
Automotive.
Automated car park systems.
Doors and gates.
Distribution

Versatile Detection and Rugged Design

Engineered to function in dynamic industrial environments, the GTB10-P4221 photoelectric sensor ensures reliable detection across a broad spectral range of 20 mm to 1,200 mm. Its IP67 housing and resilient plastic construction enable stable performance in areas exposed to dust and water. Flexible mounting with a 4.2 mm hole simplifies installation on various equipment types.

Efficient Operation and Connectivity

Supporting PNP input and output, the sensor features a M12, 4-pin cable for straightforward integration into automation systems. It operates from 10 V DC to 30 V DC, consuming only 20 mA of current, making it energy-efficient. The device can handle quick processes with a frequency of up to 1,000 Hz, beneficial in high-speed production lines.

FAQ's of PHOTOELECTRIC SENSOR:

Q: How does the GTB10-P4221 photoelectric sensor detect objects?

A: The GTB10-P4221 uses an infrared light beam to sense the presence of objects within a range of 20 mm to 1,200 mm. When the beam is interrupted or reflected by an object, the sensor outputs a digital signal, making it ideal for proximity detection.

Q: What environments is this sensor suitable for?

A: Thanks to its IP67 ingress protection rating and robust ABS/PMMA plastic housing, the GTB10-P4221 can be used in harsh industrial environments where exposure to dust and water is possible.

Q: Where can I mount the sensor for optimal performance?

A: The sensor is designed for easy installation using a 4.2 mm mounting hole. It can be installed on conveyor belts, packaging machinery, or any location where object detection within its range is required.

Q: What are the benefits of using a PNP digital output?

A: A PNP output ensures compatibility with most PLCs and automation equipment, providing reliable operation and easier system integration for industrial applications.

Q: What is the process for connecting this sensor to my control system?

A: Simply connect the M12, 4-pin cable to the corresponding input on your control system. Match the wiring according to the sensor's pinout for proper electrical connections and functionality.

Q: How accurate is the GTB10-P4221 sensor and what is its response time?

A: The sensor has an accuracy of 20 mm and a fast operating frequency of up to 1,000 Hz, making it capable of detecting objects quickly and precisely in fast-paced production environments.
