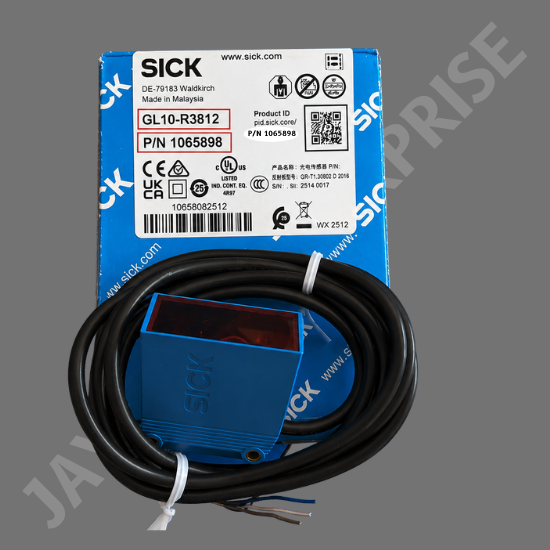

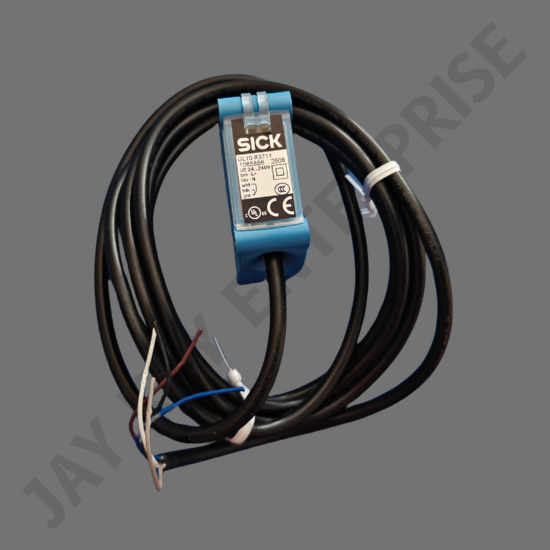

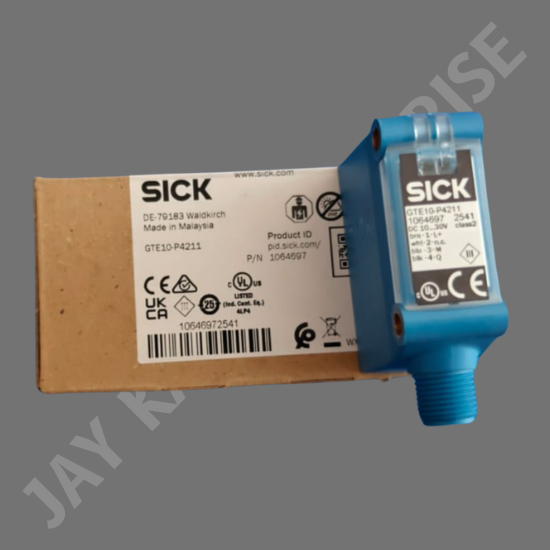

G10 Photoelectric Sensor Switch

Name: G10 Photoelectric Sensor Switch
Brand: JAY KAY ENTERPRISES
Price: 2700.0 INR
Availability: InStock

Price 2700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G10 Photoelectric Sensor Switch Specification

Ingress Protection
A 6) B 7) C 8) D 9

Features
Photoelectric retro-reflective sensor

Signal Type
Digital

Power Consumption
20 mA Ampere

Housing Material
Plastic, ABS/PMMA

Response Time
1 Days

Application
Monitoring access barriers

Operating Temperature
30 C ... +60 C Celsius (oC)

Wireless
No

Sensor Type
GL10-P7211

Mounting Type
hole, 4.2 mm

IP Rating
IP67

Measurement Range
0.08 m ... 15 m

Mounting Thread
hole, 4.2 mm

Spectral Range
0.08 m ... 15 m

Product Type
GL10-P7211

Power Rating
IP67

Input
PHOTOELECTRIC SENSORS

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
58 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
70 Grams (g)

Cable Type
Cable with M12 male connector, 4-pin, 300 mm

Warranty
1 year

Display Type
PHOTOELECTRIC SENSORS

Frequency
1,000 Hz Hertz (HZ)

Material
plastic

Rated Current
20 mA Milliampere (mA)

Conductor
4-pin

G10 Photoelectric Sensor Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

G10 Photoelectric Sensor Switch About

PRODUCT DESCRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot.
Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few seconds.

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors

FIELDS OF APPLICATION

Logistics: Storage & Conveyor, especially pallet detection.
Machine builders (e.g. packaging, handling, wood processing, paper).
Automotive.
Automated car park systems.
Doors and gates.
Distribution.

ORDERING INFORMATION

Functional principle: Photoelectric proximity sensor.
Functional principal detail: Background suppression.
Light source: LED.
Voltage type: DC.
Switching mode: Light/dark switching.
Type of light: Infrared light.

Reliable Performance in Diverse Environments

With an IP67 rating and a wide operating temperature range of -30C to +60C, the G10 Photoelectric Sensor Switch ensures consistent operation in challenging surroundings. The robust ABS/PMMA plastic housing enhances durability, while the compact design allows flexible installation. Its digital signal type and sensitivity to a 15-meter range make it highly dependable for access control and safety monitoring in industrial and commercial settings.

Easy Setup and Versatile Mounting

The sensor's cable with an M12 male connector simplifies wiring and connectivity. Installation is straightforward thanks to the 4.2 mm mounting hole, fitting various setups. This makes it suitable for new projects and system upgrades where hassle-free integration is essential.

Efficient and Accurate Detection

Boasting a 1,000 Hz response frequency and an accuracy of 58 mm, the G10 ensures rapid detection and reliable operation. Low power consumption (20 mA) reduces energy costs while delivering efficient monitoring, ideal for automation systems where swift response and precise barrier monitoring are vital.

FAQ's of G10 Photoelectric Sensor Switch:

Q: How do I install the G10 Photoelectric Sensor Switch for monitoring access barriers?

A: To install the G10 Photoelectric Sensor Switch, use the 4.2 mm mounting hole to securely fasten the sensor in position. Connect it via the included 300 mm cable with an M12 male connector and ensure the power supply is within the 10-30 V DC range. Proper alignment is important for optimal retro-reflective sensing.

Q: What applications is the G10 Photoelectric Sensor Switch most suitable for?

A: This sensor is primarily designed for monitoring access barriers in industrial and commercial environments, ensuring secure and controlled entry points. Its robust build, accuracy, and extended detection range make it suitable for both indoor and outdoor installations.

Q: When should I use a photoelectric retro-reflective sensor like the G10?

A: Use the G10 when you need to detect objects or interruptions over distances up to 15 meters, especially where fast response (1,000 Hz) and high accuracy are required. It's particularly effective in automated gate systems, safety barriers, and entrance monitoring.

Q: Where can the G10 Photoelectric Sensor Switch be installed?

A: It can be installed in locations exposed to dust, water jets, and varying temperatures, thanks to its IP67 ingress protection and durable housing. Common sites include factory floors, warehouse entry points, and outdoor gateways.

Q: What is the process for connecting the G10 sensor to existing control systems?

A: Connect the sensor's M12 four-pin cable to your control system's PNP-compatible digital input. Make sure the wiring complies with your system's voltage (10-30 V DC) and current (20 mA) specifications. Ensure mounting is stable for uninterrupted sensor operation.

Q: How does using the G10 Photoelectric Sensor Switch benefit my automation setup?

A: The sensor provides fast and accurate detection with low power consumption. Its durable build reduces maintenance needs, while the simplicity of installation and integration helps minimize downtime and deployment effort, enhancing overall system efficiency.
