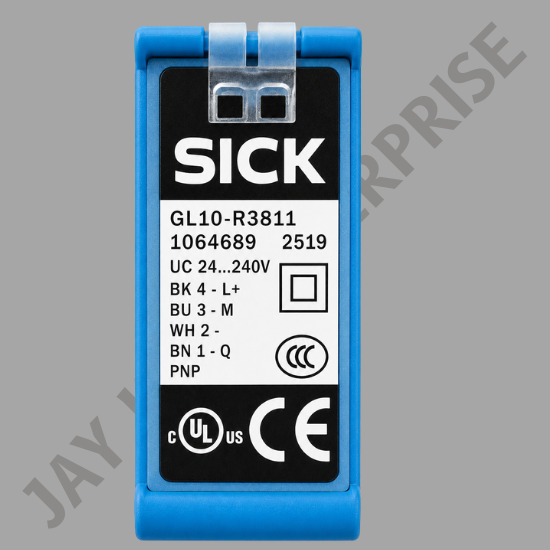

G10 Photoelectric Switch

Name: G10 Photoelectric Switch
Brand: JAY KAY ENTERPRISES
Price: 3000.0 INR
Availability: InStock

Price 3000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G10 Photoelectric Switch Specification

Power Consumption
20 mA Ampere

Features
High functional reliability on foil-wrapped objects

Ingress Protection
A 6) B 7) C 8) D 9)

Application
Monitoring access barriers

Operating Temperature
30 C ... +60 C Celsius (oC)

Mounting Thread
hole, 4.2 mm

Wireless
No

Sensor Type
GL10-P7551

IP Rating
IP67

Signal Type
Digital

Response Time
1 Days

Spectral Range
0.15 m ... 12 m

Housing Material
Plastic, ABS/PMMA

Cable Length
300 mm Millimeter (mm)

Mounting Type
hole, 4.2 mm

Product Type
GL10-P7551

Power Rating
IP67

Input
PHOTOELECTRIC SENSORS

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
58 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Weight
70 g Grams (g)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Cable Type
Cable with M12 male connector, 4-pin, 300 mm

Warranty
1 year

Display Type
PHOTOELECTRIC SENSORS

Conductor
4-pin

Rated Current
20 mA Milliampere (mA)

Frequency
500 Hz Hertz (HZ)

Material
plastic

G10 Photoelectric Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About G10 Photoelectric Switch

PRODUCT DESCRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few seconds.

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors.

FIELDS OF APPLICATION

Logistics: Storage & Conveyor, especially pallet detection.
Machine builders (e.g. packaging, handling, wood processing, paper).
Automotive.
Automated car park systems.
Doors and gates.
Distribution.

Ordering information

Other models and accessories www.sick.
com/G10.Functional principle: Photoelectric proximity sensor.
Functional principal detail: Background suppression.
Light source: LED.
Voltage type: DC.
Switching mode: Light/dark switching.
Type of light: Infrared light.

Versatile Monitoring and Reliability

The G10 Photoelectric Switch is expertly engineered for applications involving the monitoring of access barriers. Its high reliability, especially on challenging surfaces such as foil-wrapped objects, ensures uninterrupted operation. Its retro-reflective function and robust construction provide consistent and precise detection in various industrial settings.

Durability Meets Efficiency

With an IP67 rating, the G10 Photoelectric Switch withstands dust, water, and tough environments. Operating between -30C and +60C, it is suitable for a wide temperature range. The ABS/PMMA housing ensures longevity, while its low power consumption and efficient digital signaling optimize performance without compromising sensor integrity.

FAQ's of G10 Photoelectric Switch:

Q: How does the G10 Photoelectric Switch function in access barrier monitoring?

A: The G10 Photoelectric Switch uses retro-reflective photoelectric sensing to detect the presence or absence of objects, making it ideal for monitoring access barriers to ensure controlled entry and exit.

Q: What makes the G10 Photoelectric Switch suitable for use with foil-wrapped or glossy surfaces?

A: Its advanced sensing technology is designed for high functional reliability, enabling accurate detection even when objects are foil-wrapped or have reflective surfaces, reducing false triggers.

Q: Where can the G10 Photoelectric Switch be installed?

A: Thanks to its IP67 rating and rugged ABS/PMMA plastic housing, it can be installed in both indoor and outdoor environments, including locations exposed to moisture, dust, or temperature extremes.

Q: What is the process for installing the G10 Photoelectric Switch?

A: Installation involves mounting the sensor through a 4.2 mm threaded hole and connecting it via the integrated M12 4-pin cable. It supports easy integration with existing systems due to its standardized connector and mounting options.

Q: When should the G10 Photoelectric Switch be used over other sensor types?

A: This switch is best suited for applications requiring long-range object detection (0.15-12 meters), digital output (PNP), and resistance to environmental factors, such as access control or automated door systems.

Q: What are the key benefits of using the G10 Photoelectric Switch?

A: Key benefits include robust IP67 protection, reliable performance on challenging surfaces, straightforward installation, energy efficiency, and a 1-year warranty for peace of mind.

Q: How does the warranty and support work for this product?

A: The G10 Photoelectric Switch comes with a 1-year warranty covering manufacturing defects, providing assurance and support for replacement or repair during the warranty period.
