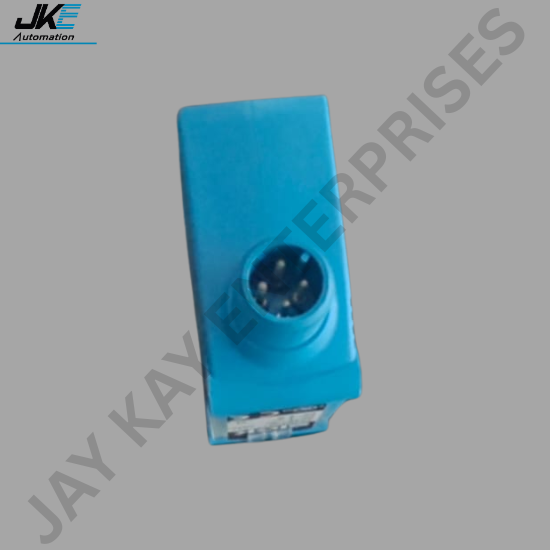

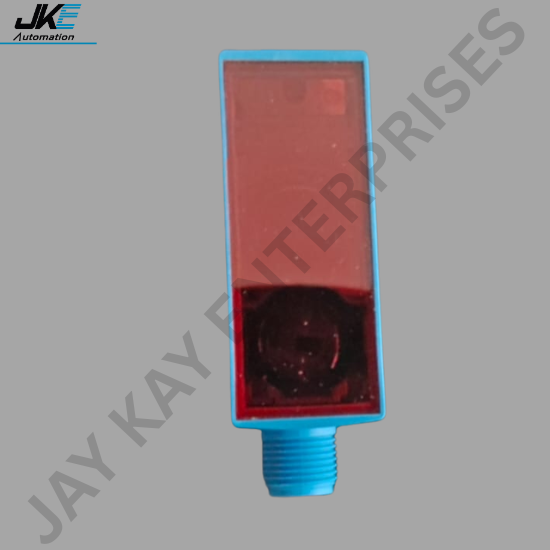

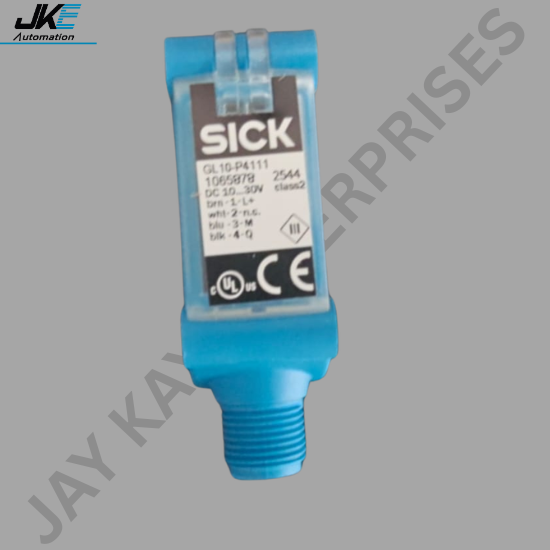

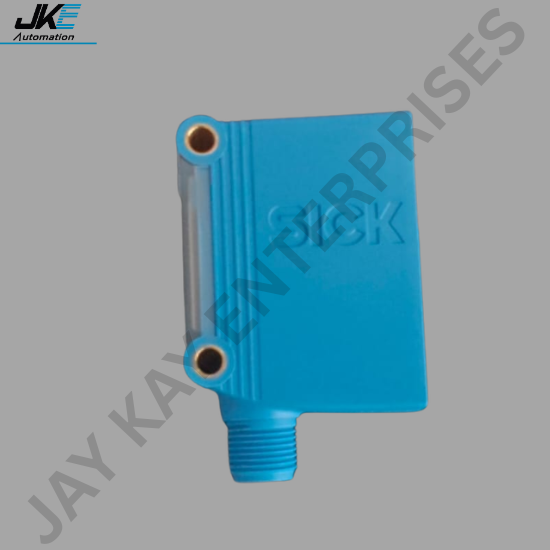

G10 PHOTOELECTRIC SENSORS

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G10 PHOTOELECTRIC SENSORS Specification

Cable Length
625 Nanometer (nm)

Measurement Range
0.08 m ... 15 m

Housing Material
Plastic, ABS/PMMA

Operating Temperature
30 C ... +60 C Celsius (oC)

IP Rating
IP67

Wireless
Yes

Signal Type
Digital

Spectral Range
0.08 m ... 15 m

Ingress Protection
A 5) B 6) C 7) D 8)

Sensor Type
GL10-P4112

Application
Monitoring access barriers

Mounting Thread
hole, 4.2 mm

Features
With minimum distance to reflector (dual lens system)

Mounting Type
hole, 4.2 mm

Response Time
1 Days

Power Consumption
20 Ampere

Product Type
GL10-P4112

Power Rating
IP67

Input
PHOTOELECTRIC SENSORS - GL10-P4112

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
58 mm

Resolution
solutions in industrial automation

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
35 Grams (g)

Cable Type
Male connector M12, 4-pin

Warranty
1 YEAR

Display Type
PHOTOELECTRIC SENSORS - GL10-P4112

Rated Current
20 Milliampere (mA)

Frequency
1000 Hertz (HZ)

Material
Plastic, ABS/PMMA

G10 PHOTOELECTRIC SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About G10 PHOTOELECTRIC SENSORS

Product description

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

At a glance

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector
Pinpoint LED with bright and precise light spot
Small housing design
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output
Rugged sensor housing with metal-reinforced holes for assembly
Q-Lock assembly system for mounting the sensor within a few seconds

Your benefits

Long sensing ranges for maximum operating reserves
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors
A single sensor family for all industrial and commercial fields of application
Universal DC or AC/DC power supply for even greater application flexibility
Highly reliable and durable despite optical interference or mechanical loads
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors
