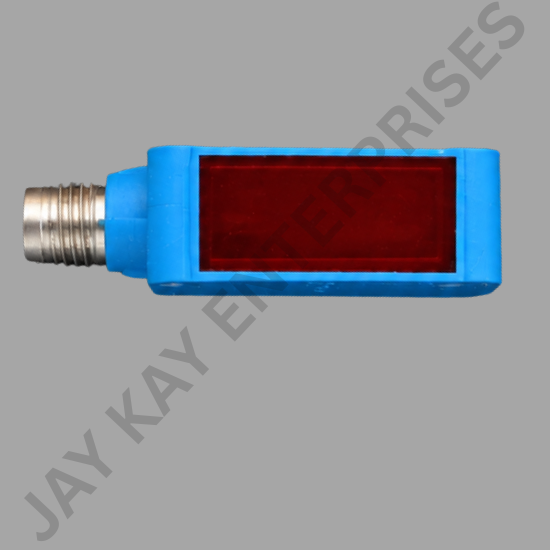

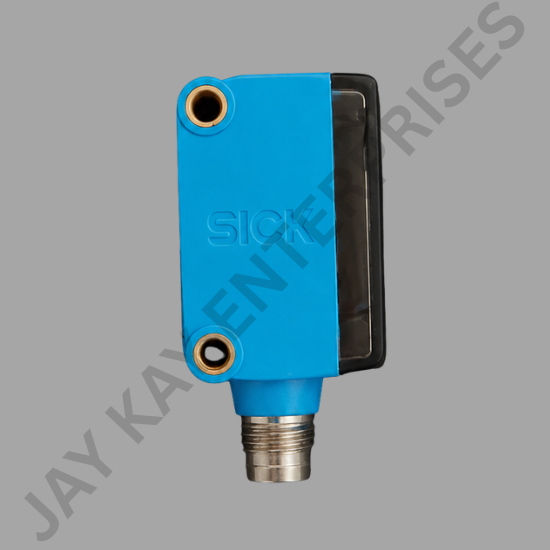

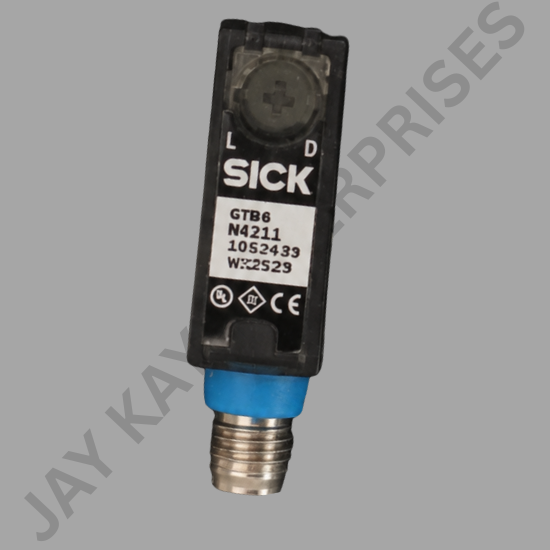

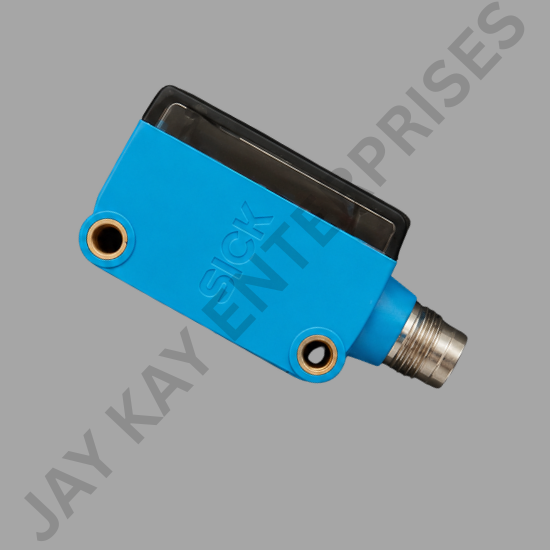

G6 PHOTOELECTRIC SENSOR

Name: G6 PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 2350.0 INR
Availability: InStock

Price 2350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G6 PHOTOELECTRIC SENSOR Specification

Ingress Protection
III

Mounting Thread
holes M3

Wireless
No

Sensor Type
GTB6-N4212

Mounting Type
holes M3

Housing Material
Plastic, ABS/PC

Signal Type
Digital

Response Time
1 Days

IP Rating
IP67

Power Consumption
30 mA Ampere

Features
Background suppression

Measurement Range
35 mm ... 140 mm

Application
Leading edge detection and presence checking

Spectral Range
5 mm ... 250 mm

Cable Length
650 Nanometer (nm)

Operating Temperature
25 C ... +55 C Celsius (oC)

Power Rating
IP67

Product Type
GTB6-N4212

Input
PHOTOELECTRIC SENSORS - GTB6-N4212

Output
NPN

Function
Photoelectric proximity sensor

Usage
Leading edge detection and presence checking

Accuracy
6 mm

Resolution
solutions in industrial automation

Voltage
10 V DC ... 30 V DC Volt (v)

Weight
20 Grams (g)

Usage & Applications
Leading edge detection and presence checking

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Cable Type
Male connector M8, 4-pin

Warranty
1 YEAR

Display Type
PHOTOELECTRIC SENSORS - GTB6-N4212

Material
Plastic, PMMA

Rated Current
30 mA Milliampere (mA)

Frequency
1000 Hertz (HZ)

G6 PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

G6 PHOTOELECTRIC SENSOR About

Product description

The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With Pinpoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.

At a glance

Pinpoint LED and class 1 laser variants
SICK ASIC, the result of decades of experience with photoelectric sensors
Photoelectric proximity sensors with background suppression, energetic photoelectric proximity sensors, and through-beam photoelectric sensors
ABS plastic housing and V4A stainless-steel 1.4404 (316L) housing
Enclosure ratings IP67 and IP69K

Your benefits

Pinpoint LEDs (with visible red light and infrared light) or variants with a laser light spot enable objects to be detected reliably and are therefore suitable for a broad range of applications
Superior optical performance and robustness thanks to the ASIC from SICK
Quick and easy mounting and high durability thanks to the metal inserts with M3 thread
Easy installation and adjustment with user friendly potentiometer and highly visible indicator LEDs
Variants with a stainless-steel housing and IP69K enclosure rating ensure a long sensor service life in demanding washdown ap plications

Fields of application

Industries with high cleaning requirements (e.g. food and beverage)
Harsh environments requiring tough metal housing. e.g. due to mechanical impacts
Applications with high aesthetic standards
