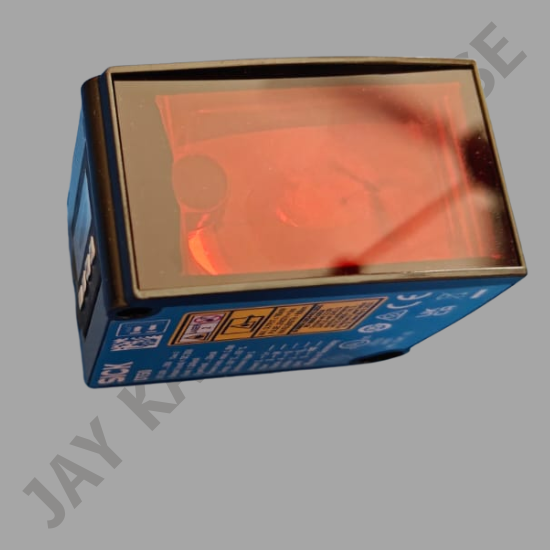

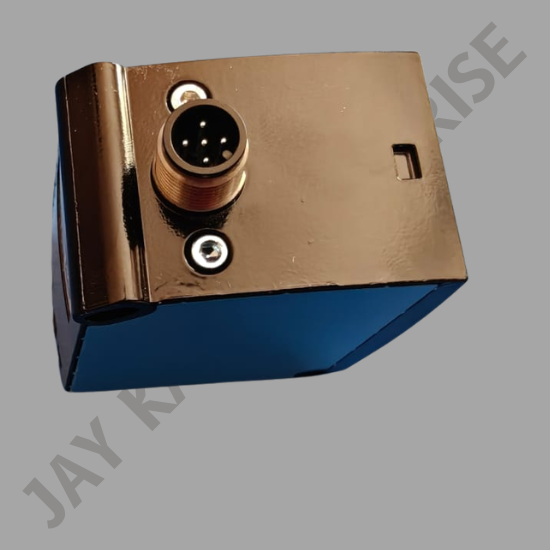

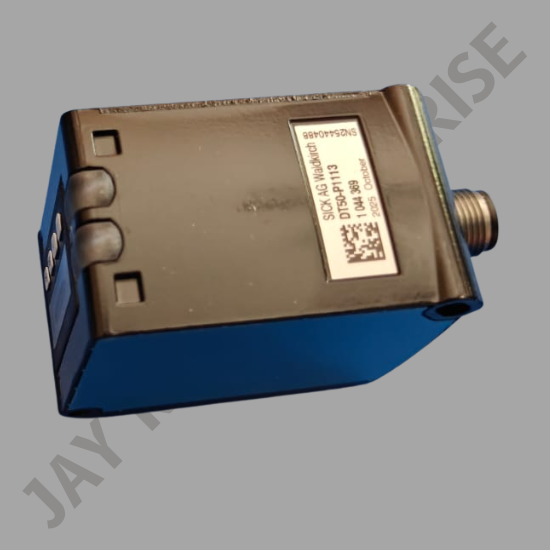

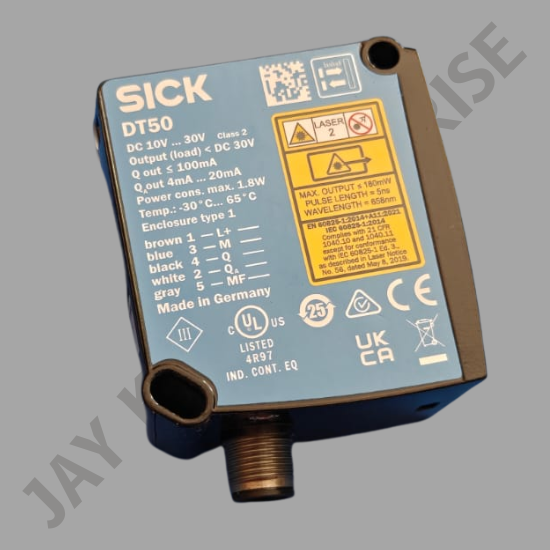

LASER DISTSNCR SENSOR

Price 23000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LASER DISTSNCR SENSOR Specification

Wireless
Yes

Sensor Type
DT50-P111

Response Time
1 Days

Measurement Range
200mm

Application
Collision protection on rail-mounted crane systems

Housing Material
Metal (zinc diecast)

Power Consumption
2.1 Watt (W)

Features
Visible red light

Signal Type
Digital

Interface
Current output

Spectral Range
200 mm

Cable Length
658 nm Nanometer (nm)

Operating Temperature
30 C ... +65 C Celsius (oC)

IP Rating
IP65

Ingress Protection
III

Power Rating
IP65

Product Type
DT50-P111

Input
TIME-OF-FLIGHT SENSORS

Output
PNP

Function
Switch-off display

Usage
Collision protection on rail-mounted crane systems

Accuracy
10 mm mm

Resolution
1,000 m

Voltage
DC 10 V ... 30 V Volt (v)

Weight
200 Grams (g)

Usage & Applications
Collision protection on rail-mounted crane systems

Rated Voltage
DC 10 V ... 30 V Volt (V)

Warranty
1 year

Display Type
TIME-OF-FLIGHT SENSORS

Conductor
95 %

Rated Current
100 mA Milliampere (mA)

Frequency
50 Hz / 10 Hz Hertz (HZ)

Material
metal

LASER DISTSNCR SENSOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About LASER DISTSNCR SENSOR

PRODUCT DESCRIPTION

The Dx50 is a common distance sensor platform, offering multiple performance levels. With measurement ranges of up to 10 m or 20 m on objects or even up to 50 m when measuring on reflector, the Dx50 is suitable for many different applications. Based on a switching, analog or serial interface being available the Dx50 can easily be integrated in any application environment. Also, the intuitive operating concept and a visible red laser allow a fast installation of the sensors. Thanks to the innovative HDDM technology the Dx50 provides excellent reliability, immunity to ambient light and precision when being in use. Offering an extremely good price/performance ratio the Dx50 is the right solution in many cases.

AT A GLANCE

Highest reliability, ambient light immunity and price/performance ratio thanks to HDDM technology.
Measuring ranges of 10 m or 20 m directly on the object or 50 m on the reflector.
Different performance levels depending on the product and laser class.
Various interfaces: Digital, analog or serial.

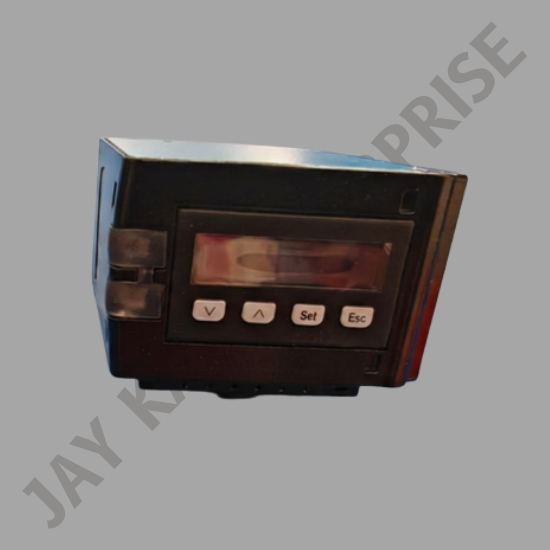

Display with intuitive and consistent operating concept.
Rugged zinc diecast housing.
Wide operating temperature ranges from 30 C to +65 C

YOUR BENEFITS

Wide measurement ranges up to 10, 20 or 50 m in combination with different interfaces allow an easy and fast integration in any production environment.
Highly reliable and precise measurement helps to increase process quality and stability.
High measurement or switching frequencies enable a fast material flow.
Dx50 product family is based on a common platform, offering multiple performance levels, making it easy to accommodate future changes.
Intuitive setup via display or remote teach reduces installation time and costs.
Temperature range from 30 C to +65 C allows for outdoor use without additional cooling or heating.
Up to 40klx ambient light immunity allows for use in optically challenging environments.

ORDERING INFORMATION

Measuring range: 200 mm ... 10,000 mm, 90% remission factor, 200 mm ... 6,500 mm, 18% reflection factor, 200 mm ... 4,000 mm, 6% remission factor.
Laser class: 2
