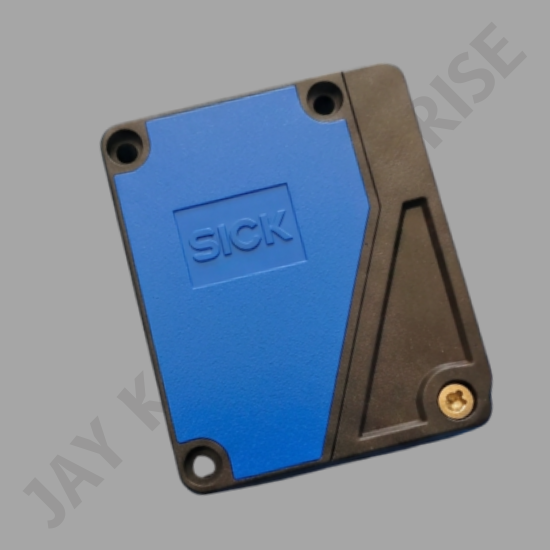

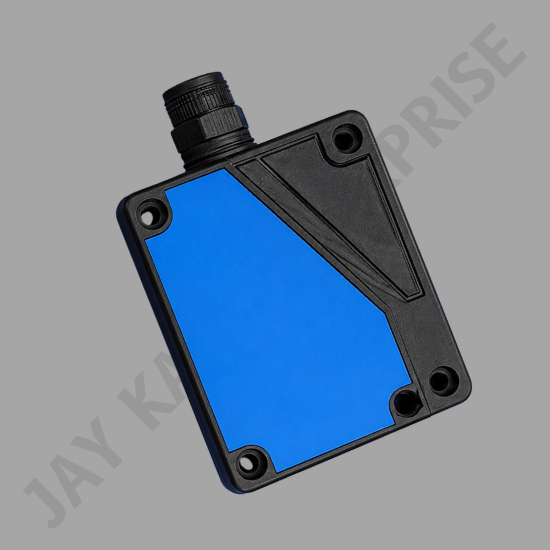

PHOTOELECTRIC SENSOR W280-2

Price 9100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

PHOTOELECTRIC SENSOR W280-2 Specification

Measurement Range
0.01 m ... 13 m 1) 0.01 m ... 11 m 2)

Power Consumption
5 VA Volt-Ampere (VA)

Cable Length
< 30 m. Millimeter (mm)

Spectral Range
0.01 m ... 15 m 1) 0.01 m ... 12 m 2)

Sensitivity
potentiometer

Housing Material
Plastic, ABS

IP Rating
IP66 IP67

Sensor Type
photoelectric sensor

Operating Temperature
25 C ... +55 C Celsius (oC)

Application
Monitoring access barriers

Response Time
1 Days

Signal Type
Digital

Features
Photoelectric retro-reflective sensor

Ingress Protection
A 4) C 5)

Power Rating
IP66 IP67

Product Type
WL280-2H4331

Input
photoelectric sensor

Output
Change-over contacts

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
260 mm (8 m) mm

Voltage
24 V DC ... 240 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Weight
150 g Grams (g)

Rated Voltage
24 V DC ... 240 V DC Volt (V)

Warranty
1 year

Display Type
WL280-2H4331

Rated Current
3 A (240 V AC) Volt (v)

Material
Plastic, PMMA

Frequency
33 Hz Hertz (HZ)

PHOTOELECTRIC SENSOR W280-2 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About PHOTOELECTRIC SENSOR W280-2

PRODUCT DECRIPTION

The W280-2 consists of three high-performance sensor types energetic photoelectric proximity sensor, photoelectric retro-reflective sensor and through-beam photoelectric sensor. The AC/DC devices (-2Hxxxx) are compliant with EN 61000-6-3 (electromagnetic interference for residential, commercial and light-industrial environments) which makes the sensor especially suitable for door and gates areas. In other branches the fast install kit provides a rotatable M12 connector, cable or screw terminal connection which offer a quick and easy setup even in space-restricted conditions. Devices with potentiometer and light/dark switching provide application flexibility. In addition, these sensors are available in DC and AC/DC versions.

AT A GLANCE

Easily visible red light thanks to bright Light LED.
Potentiometer for adjusting the sensing range/sensitivity.
Light/dark switching (DC devices only).
Rotatable male connector, cable connection or terminal connection.
Versions for 10 30 V DC or 24 240 V DC/AC voltage supply.
AC/DC devices (-2Hxxxx) are compliant with EN-61000-6-3 (electromagnetic interference for "residential, commercial and light industrial environments).

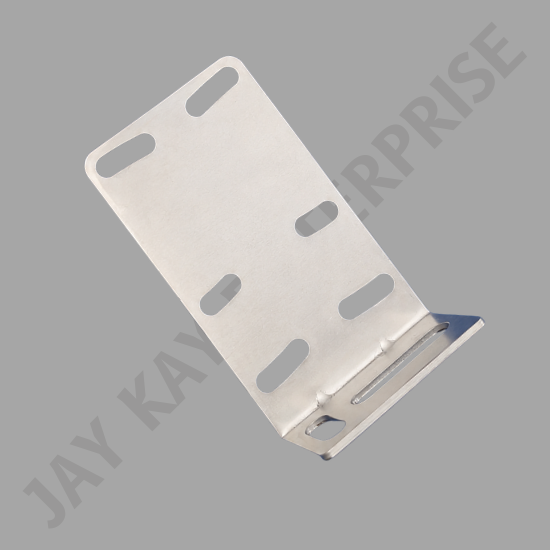

BEF-W280 mounting bracket made of stainless steel (1.4301) included in delivery

YOUR BENEFITS

Simple and fast commissioning with the highly visible light spot of the Bright Light LED.
Simple operation via potentiometer.
Light/dark switching provides application flexibility.
All necessary mounting and operating accessories are included in delivery, enabling quick and easy setup: since mounting Bracket (stainless steel 1.4301) is included in delivery scope .
DC devices and AC/DC devices available in the same housing, allowing electrical flexibility.
Less contamination due to high operating reserves, reducing downtime
