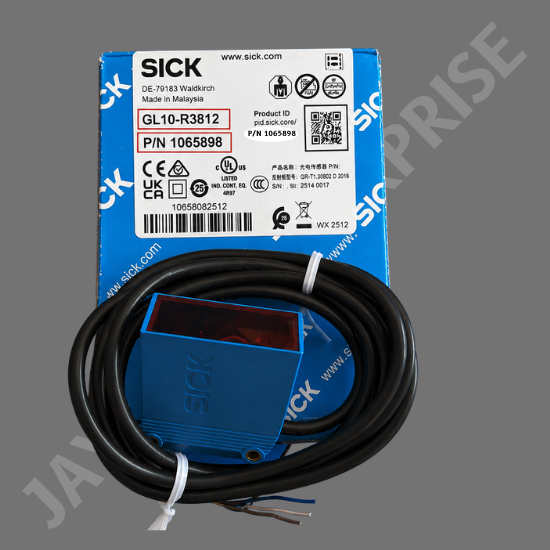

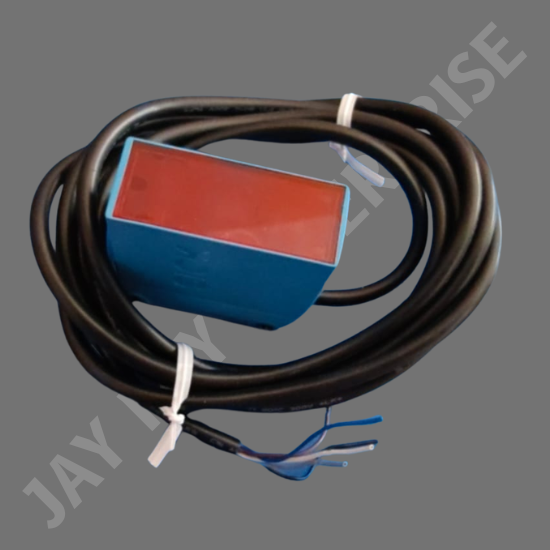

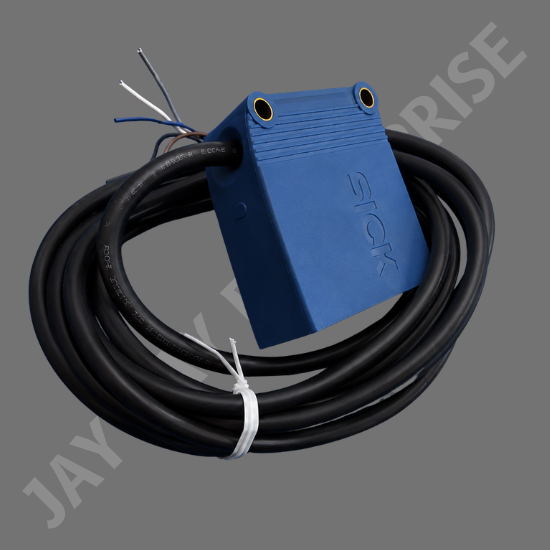

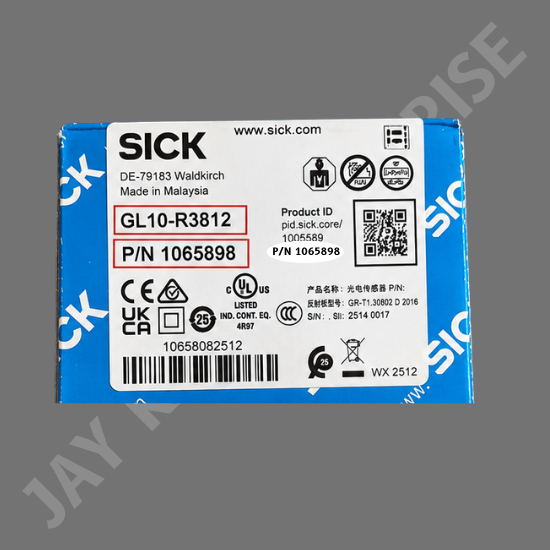

PHOTOELECTRIC SENSORS

Price 4000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

PHOTOELECTRIC SENSORS Specification

Mounting Thread
hole, 4.2 mm

Housing Material
Plastic, ABS/PMMA

Response Time
1 Days

Operating Temperature
30 C ... +60 C Celsius (oC)

Measurement Range
0.15 m ... 12 m

Application
Monitoring access barriers

Ingress Protection
II

Mounting Type
Mounting bracket BEF-G10UC01, Reflector P250

Wireless
No

Interface
EN 61000-6-3 (2011-09)

Spectral Range
0.15 m ... 12 m

Power Consumption
2.5 VA Volt-Ampere (VA)

Features
With minimum distance to reflector (dual lens system)

Signal Type
Digital

Cable Length
625 nm Nanometer (nm)

IP Rating
IP67

Sensor Type
GL10-R3812

Product Type
GL10-R3812

Power Rating
IP67

Input
PHOTOELECTRIC SENSORS - GL10-R3812

Output
Relay, SPDT, electrically isolated

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
58 mm mm

Resolution
industrial automation

Voltage
24 V AC/DC ... 240 V AC/DC Volt (v)

Usage & Applications
Monitoring access barriers

Weight
115 Grams (g)

Rated Voltage
24 V AC/DC ... 240 V AC/DC Volt (V)

Warranty
1 year

Cable Type
Cable, 5-wire, 2 m

Display Type
PHOTOELECTRIC SENSORS - GL10-R3812

Material
Plastic, ABS/PMMA

Rated Current
0.11 A (250 V DC) Volt (v)

Frequency
20 Hertz (HZ)

Conductor
0.25 mm

PHOTOELECTRIC SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About PHOTOELECTRIC SENSORS

PRODUCT DESCRIPTION

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

AT A GLANCE

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector.
Pinpoint LED with bright and precise light spot.
Small housing design.
10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output.
Rugged sensor housing with metal-reinforced holes for assembly.
Q-Lock assembly system for mounting the sensor within a few seconds.

YOUR BENEFITS

Long sensing ranges for maximum operating reserves.
Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors.
A single sensor family for all industrial and commercial fields of application.
Universal DC or AC/DC power supply for even greater application flexibility.
Highly reliable and durable despite optical interference or mechanical loads.
Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors.
