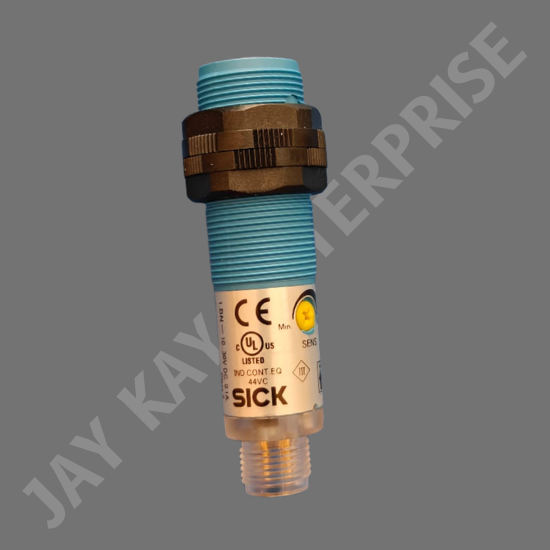

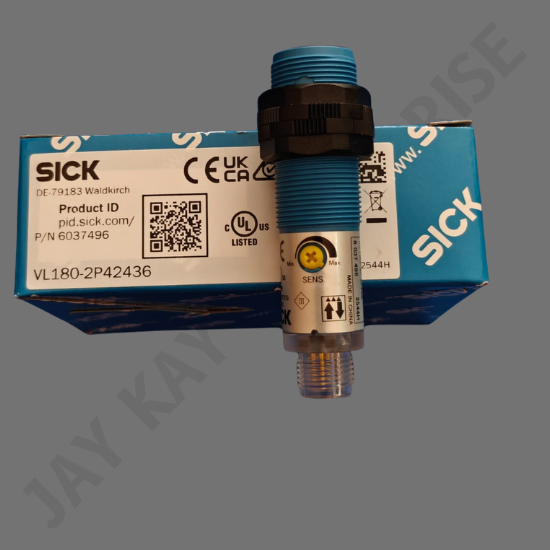

The V180 sensors were developed to be able to offer a maximum scanning range. The cost-effective cylindrical sensors are easy to operate and simple to install and maintain. This minimizes the installation time and maintenance costs. The V180 sensors are available both in a plastic and metal housing. The bright red-light LED with easily visible light spot simplifies installation. In addition, the highly visible status indicator makes troubleshooting quick and easy. The V180 therefore provides an economical solution for many universal applications such as product detection, positioning in pack aging machines, manufacturing automation, and material and conveying technology.

• Low-cost M18 housing sensor on the market.
• Long sensing distances: 100 mm, 400 mm, 800 mm (proximity sensor), 300 mm (proximity sensor with BGS), 6 m (retro-reflective sensor) and 20 m (through-beam sensor).
• Bright power and signal LEDs with 360 visibility.
• Wide product portfolio solves a broad range of applications.
• High switching frequencies up to 1000 Hz.
• Available in a metal housing for applications in harsh environments.
• Optical axis selectively axial or radial (90)

• Cost-effective cylindrical M18 sensor lowers installation costs.
• Brightly lit red emitter LED simplifies alignment and saves mounting time.
• Bright status display with 360 visibility enables quick and easy troubleshooting and thus reduces maintenance costs and time.

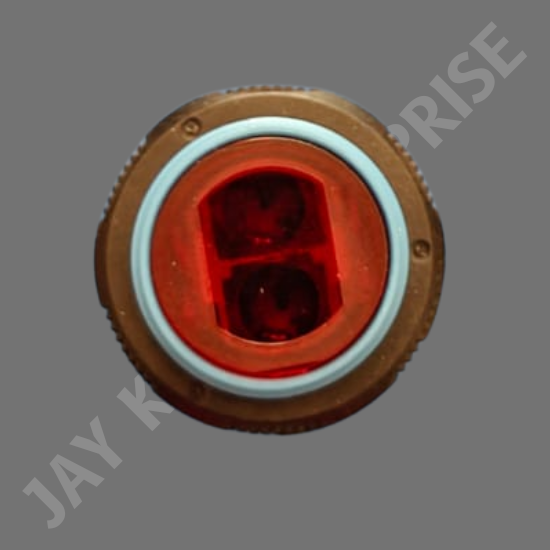

• The flat, smooth front screen reduces the accumulation of dust and dirt. This ensures reliable operation and reduces both maintenance and costs

•  Other models and accessories www.sick.com/V180.
• Functional principle: Photoelectric proximity sensor.
• Functional principal detail: Energetic.
• Light source: LED.
• Voltage type: DC.
• Switching mode: Light/dark switching.
• Type of light: visible red light
