Send InquiryRZT7 CYLINDER SENSORS
Price 700.0 INR/ Piece
MOQ : 1 Piece
RZT7 CYLINDER SENSORS Specification
- Cable Length
- 5 Meter (m)
- Housing Material
- Plastic, Grilamid LVX-65H SST
- Operating Temperature
- 30 C ... +70 C Celsius (oC)
- Signal Type
- Digital
- Sensor Type
- RZT7-03ZRS-KWB
- Ingress Protection
- III
- IP Rating
- IP65 1) IP67
- Response Time
- 1 Days
- Features
- T-slot
- Wireless
- No
- Product Type
- RZT7-03ZRS-KWB
- Power Rating
- IP65 1) IP67
- Input
- CYLINDER SENSORS
- Output
- Reed
- Function
- NO
- Accuracy
- 2.9 mm
- Resolution
- solutions in industrial automation.
- Voltage
- 5 V AC/DC ... 30 V AC/DC Volt (v)
- Weight
- 71 Grams (g)
- Rated Voltage
- 5 V AC/DC ... 30 V AC/DC Volt (V)
- Warranty
- 1 year
- Cable Type
- Cable, 3-wire, stripped, 5 m
- Display Type
- CYLINDER SENSORS
- Frequency
- 400 Hertz (HZ)
- Material
- PVC
- Rated Current
- 500 mA Milliampere (mA)
- Conductor
- 0.12 mm
RZT7 CYLINDER SENSORS Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 1 Week
About RZT7 CYLINDER SENSORS
Product description

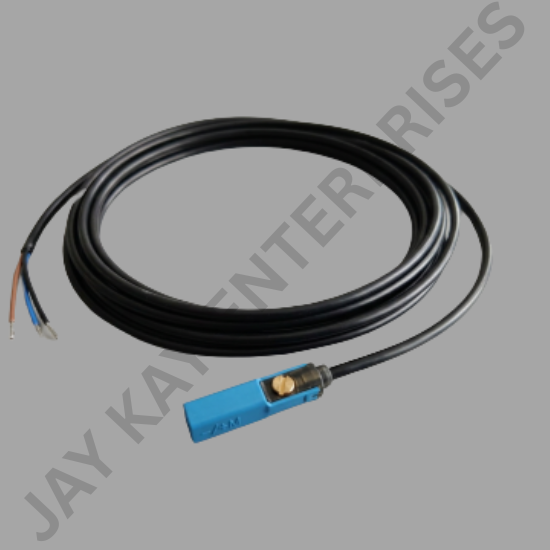

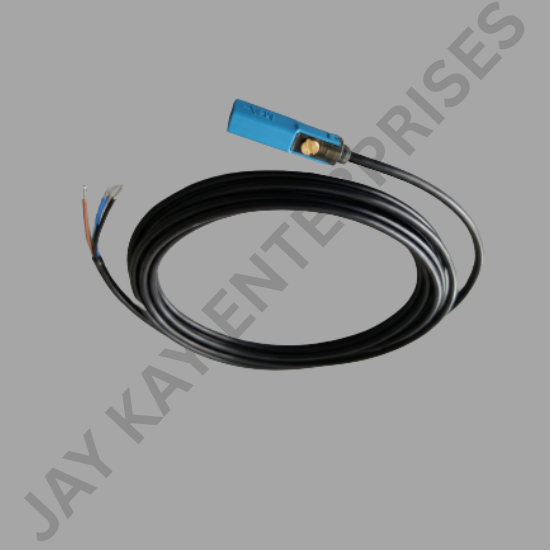

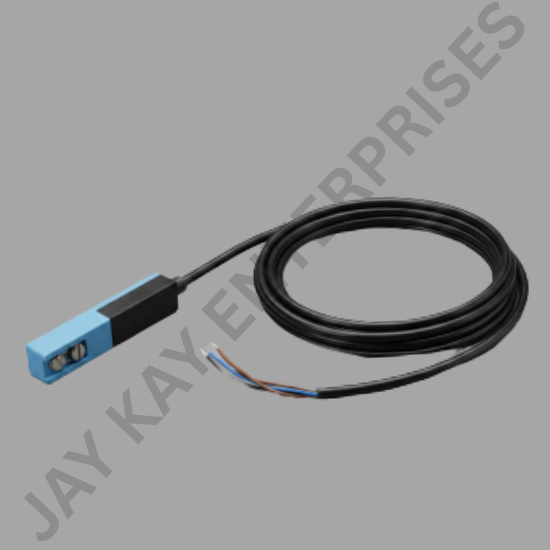

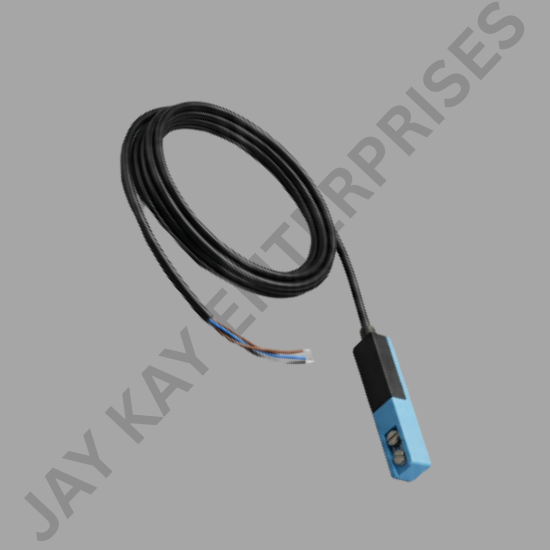

The SICK RZT7 cylinder sensor with reed contact reliably detects the piston position in pneumatic drives. The RZT7 can be mount ed directly into all cylinders with standard T-slots. SICK also has an extensive range of adapters which enable the RZT7 to be used with other cylinder types. The RZT7 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder
At a glance
- Can be used in all standard cylinders, linear slides, and grippers using the T-slot and with the help of adapters in round rod, tie-rod, and profile cylinders, and cylinders with a dovetail groove
- Drop-in mounting from above simplifies handling and assembly
- Combined fixing screw (hexagon socket screw and slotted screw)
- LED for indicating the output state (depending on type)
- Enclosure rating: IP 67
- Supply voltage up to 230 V
Your benefits
- A sensor for a wide range of applications: The sensor design fits into all standard T-slots used around the world, regardless of the cylinder profile or make
- Simple mounting: Thanks to the retaining ribs on the side, the sensor holds its position even before the screw is tightened, ensuring that it does not fall out
- Fast mounting: The sensor is fixed quickly and securely in the slot simply by rotating the fixing screw a quarter turn
- The rugged fixing screw holds the sensor in the required position, even when exposed to shock and vibration
- It is easy to replace the sensor during servicing without removing the end caps
Fields of application
- End position detection in pneumatic cylinders
Ordering information
- Overrun distance, typ.: 10 mm
- Enclosure rating: IP65, IP67
