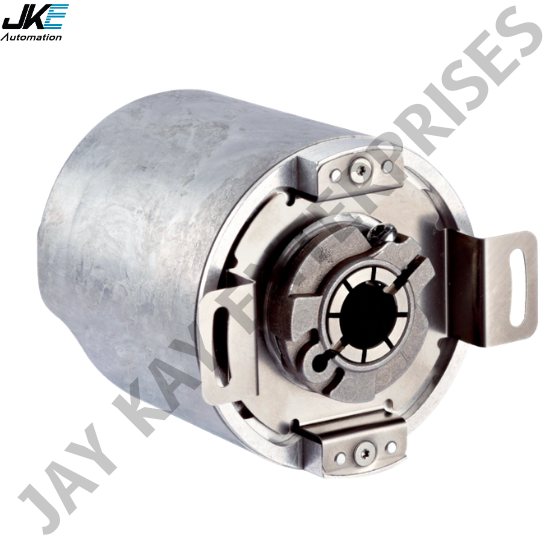

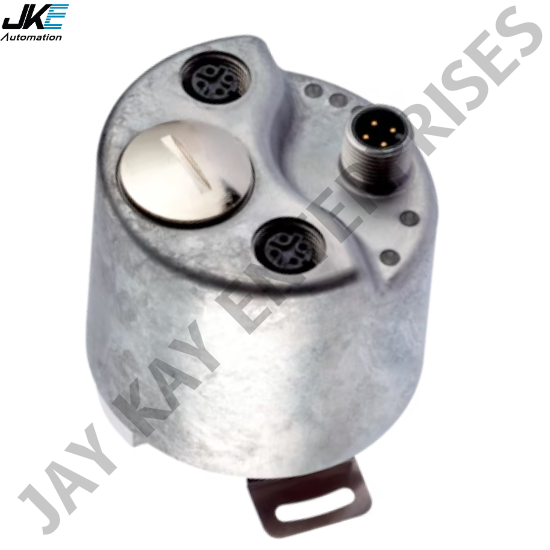

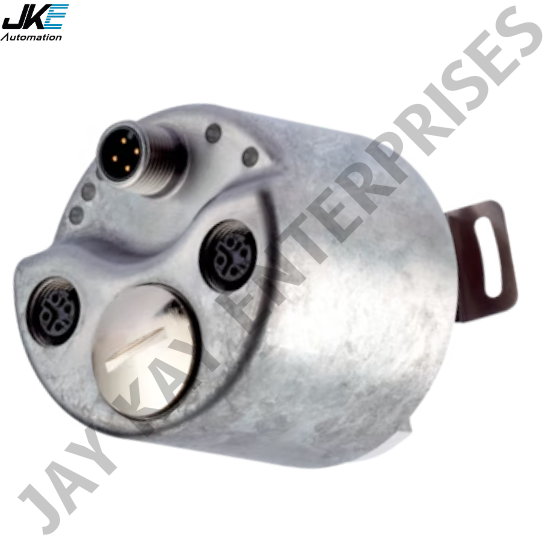

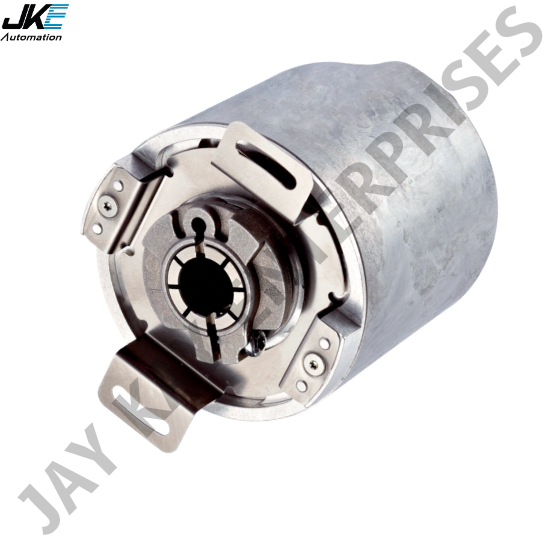

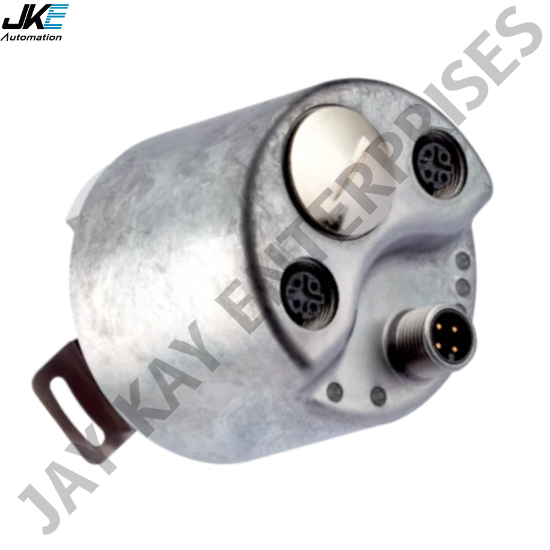

SICK AFM60A-BENB018x12 ABSOLUTE ENCODERS

Price 56200.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

SICK AFM60A-BENB018x12 ABSOLUTE ENCODERS Specification

Power Consumption
3 W (without load) Watt (W)

Mounting Type
Blind Hollow Shaft

Features
Multiturn, programmable, round-axis functionality, diagnostic functions

IP Rating
IP65 / IP67

Application
Industrial automation, machinery and motion-control systems

Response Time
1 Week

Measurement Range
360 single-turn; 4,096 revolutions multi-turn

Housing Material
Aluminum

Operating Temperature
-40 C to +85 C Celsius (oC)

Signal Type
Digital

Sensor Type
SICK AFM60A-BENB018x12 Absolute Encoder

Ingress Protection
IP65 (shaft side), IP67 (housing side)

Interface
PROFINET

Wireless
No

Product Type
SICK ABSOLUTE ENCODERS

Input
10 30 V DC

Output
PROFINET

Function
Absolute angular position measurement

Usage
Industrial automation, motion control, position feedback

Accuracy
0.03 °C

Resolution
18 bit single-turn 12 bit multi-turn

Voltage
10-30 Volt (v)

Weight
0.320 Kilograms (kg)

Rated Voltage
10-30 Volt (V)

Usage & Applications
Position feedback, machine automation, robotics, motion-control applications

Cable Type
CAT-5e cable

Warranty
1 YEAR

Display Type
AFM60A-BENB018x12

Material
ALUMINIUM

Conductor
PROFINET CAT-5e

SICK AFM60A-BENB018x12 ABSOLUTE ENCODERS Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Week

About SICK AFM60A-BENB018x12 ABSOLUTE ENCODERS

PRODUCT DESCRIPTION

The high-resolution AFS/AFM60 Ethernet absolute encoders take high-precision measurements of the absolute position and speed. Comprehensive smart functions for diagnosing parameters such as temperature or operating time and for early error detection increase the machine and plant availability. Various configuration options for example, modifying the resolution simplify installation and enable customized adjustment to each application. SICK pro vides function blocks for the encoders with a PROFINET and Ether Net/IP interface, and the AFS/AFM60 EtherNet/IP variants also come with an active web server. Their compact design also makes AFS/AFM60 Ethernet absolute encoders suitable for applications where space is at a premium.

BENEFITS

> Their high resolution and measurement accuracy enable them to be used in demanding applications > Application-specific solutions thanks to a variety of mechanical interfaces > Smart diagnostics functions for increasing the availability of the overall system > Easy installation due to various configuration options and function blocks (type-dependent) > Fully scalable for binary, non-binary, and non-integer resolutions thanks to round axis functionality > Compact and cost-efficient design > Integrated web server for easy parameterization without the need for specialized interface knowledge (type-de pendent).

FEATURES

> High-resolution absolute encoder with up to 30 bits (AFM60) or 18 bits (AFS60) > Face mount flange, servo flange, blind hollow shaft > Connection type: 3 x M12 axial plug > Communication interfaces: PROFINET, EtherNet/IP, EtherCAT > Round axis functionality > Diagnostic functions > Status display via 5 LEDs
