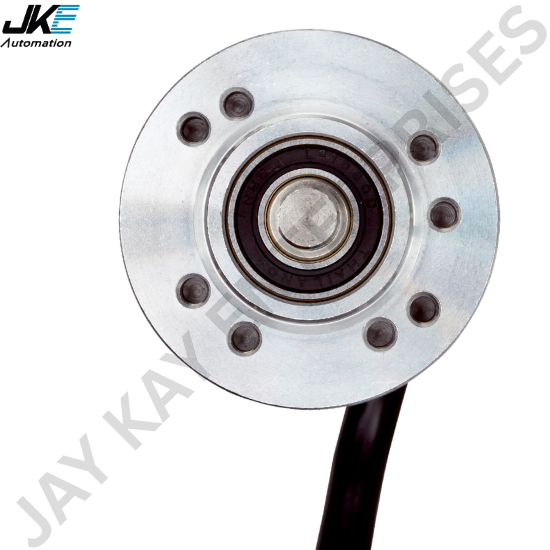

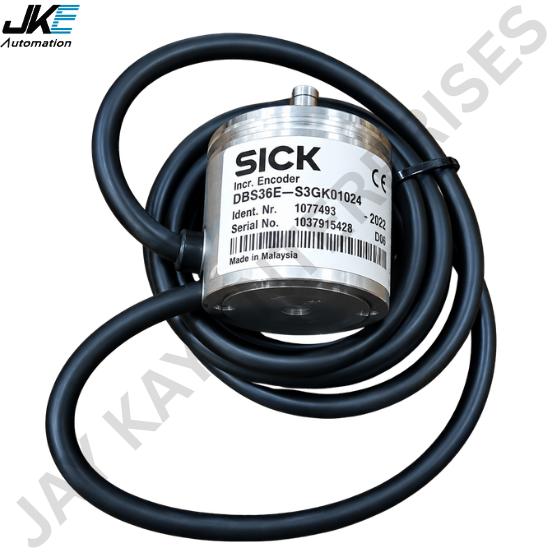

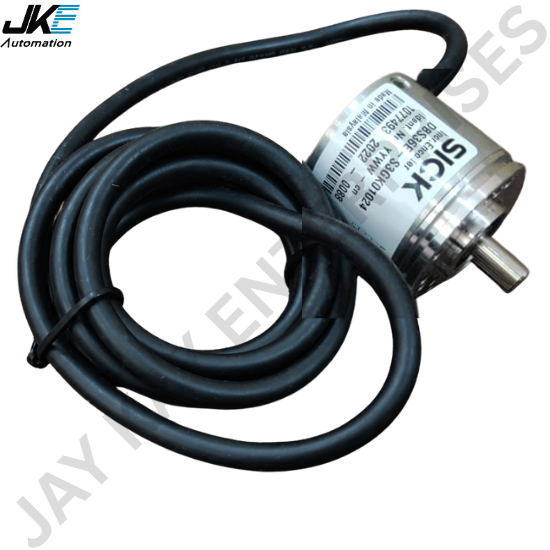

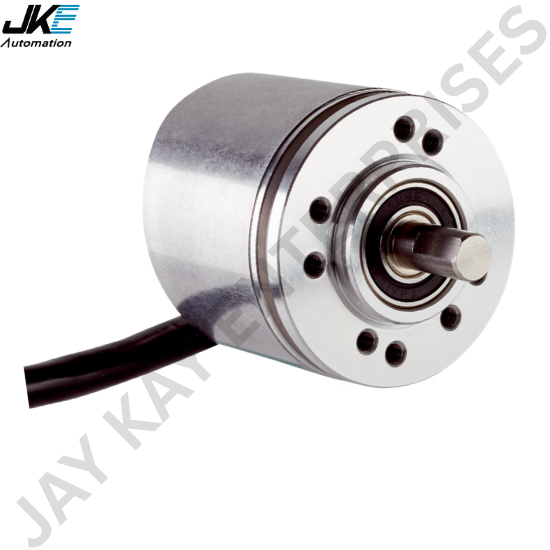

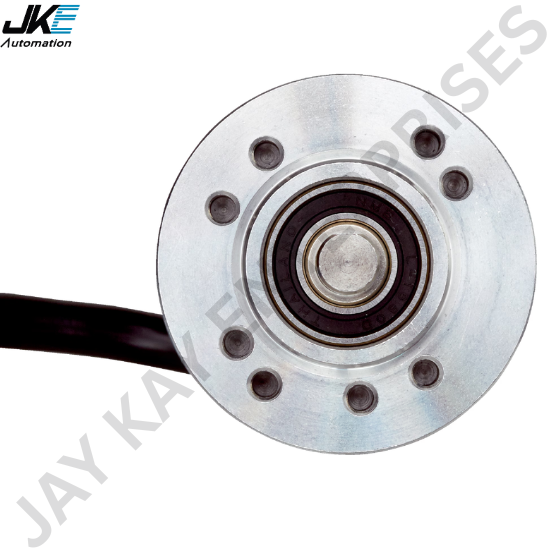

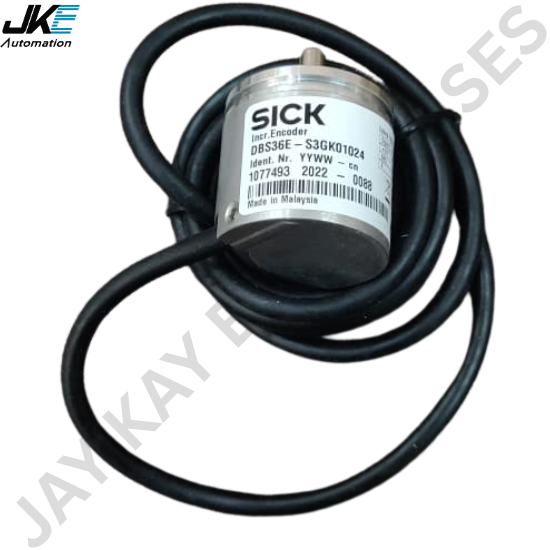

Send InquirySick Dbs36e-s3gk01024 Incremental Encoders
Price 7900.0 INR/ Piece
MOQ : 10 Pieces
Sick Dbs36e-s3gk01024 Incremental Encoders Specification
- Sensor Type
- SICK DBS36E-S3GK01024
- Wireless
- No
- Operating Temperature
- 20 C to +70 C Celsius (oC)
- Signal Type
- Digital
- Ingress Protection
- IP65
- Cable Length
- 1.5 m Meter (m)
- Features
- 6 mm shaft, reverse-polarity protection
- Interface
- Incremental
- Housing Material
- Aluminum
- Power Consumption
- 0.5 Watt (W)
- Mounting Type
- Solid shaft, face-mount flange
- Application
- Motor feedback, shaft rotation and position monitoring
- IP Rating
- IP65
- Measurement Range
- 1,024 pulses per revolution
- Response Time
- 1 Hours
- Power Rating
- 0.5 W, without load
- Product Type
- SICK Incremental Rotary Encoder
- Input
- 7 27 V DC
- Output
- HTL / Push-pull
- Function
- Rotary position and speed measurement
- Usage
- Rotary position and speed measurement
- Accuracy
- 54 °C
- Resolution
- 1,024 pulses per revolution (PPR)
- Voltage
- 7-27 Volt (v)
- Usage & Applications
- 6 mm shaft, reverse-polarity protection
- Rated Voltage
- 7-27 Volt (V)
- Weight
- 0.227 Kilograms (kg)
- Warranty
- 1 YEAR
- Cable Type
- PVC
- Display Type
- SICK DBS36E-S3GK01024
- Rated Current
- 30 Milliampere (mA)
- Frequency
- 300 Kilohertz ( KHZ )
- Material
- PVC
Sick Dbs36e-s3gk01024 Incremental Encoders Trade Information
- Minimum Order Quantity
- 10 Pieces
- Delivery Time
- 1 Week
About Sick Dbs36e-s3gk01024 Incremental Encoders
PRODUCT DESCRIPTION
The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings, the DBS36/50 devices offer comprehensive mounting options. All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.
BENEFITS
> The flexible cable connection makes installation flexible and easy especially when space is limited
> Tailorable to the application: Many mounting options due to various flanges and universal stator couplings
> Can be used internationally thanks to shafts in both metric and inch sizes
> The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications
> The compact housing diameter saves valuable space
> The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and storage life
FEATURES
> Pulses per revolution: Up to 2,500
> Housing diameter: 36 mm or 50 mm
> Solid shaft and blind hollow shaft
> Enclosure rating: IP65
> Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
> Connection type: Cable, cable with M12 or M23 male connector
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Sick Encoder Category
SICK DBS60E-S4EK01024 INCREMENTAL ENCODERS
Price 14000.0 INR / Piece
Minimum Order Quantity : 25 Pieces
Voltage : 10 27 V DC Volt (v)
Signal Type : Digital
Ingress Protection : IP65 / IP67
Sensor Type : SICK Incremental Encoder

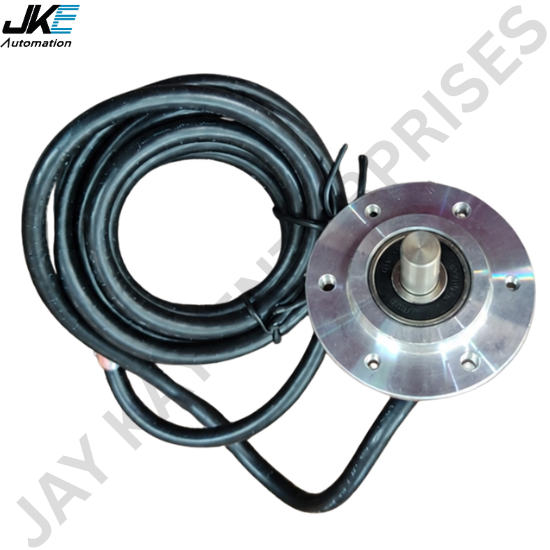

SICK DBS50E-S5CK01000 INCREMENTAL ENCODERS
