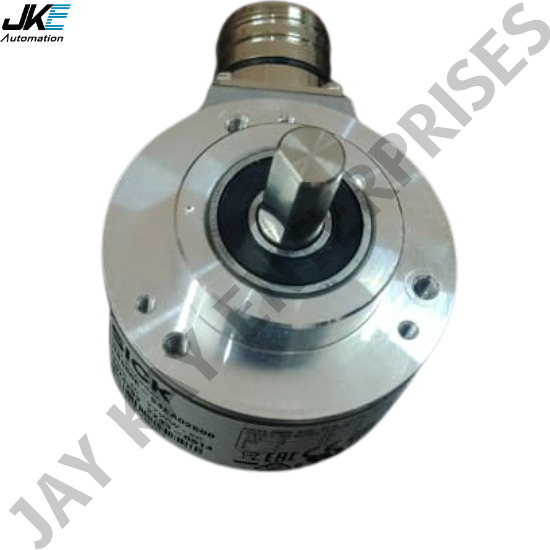

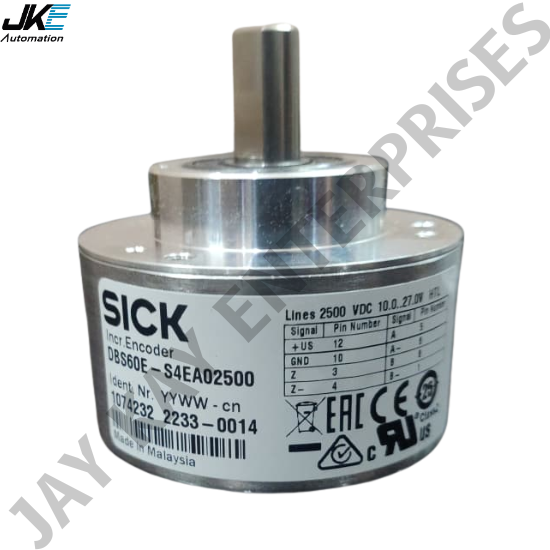

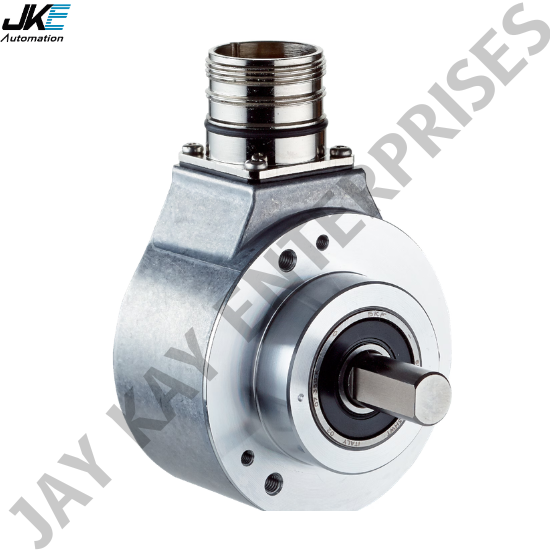

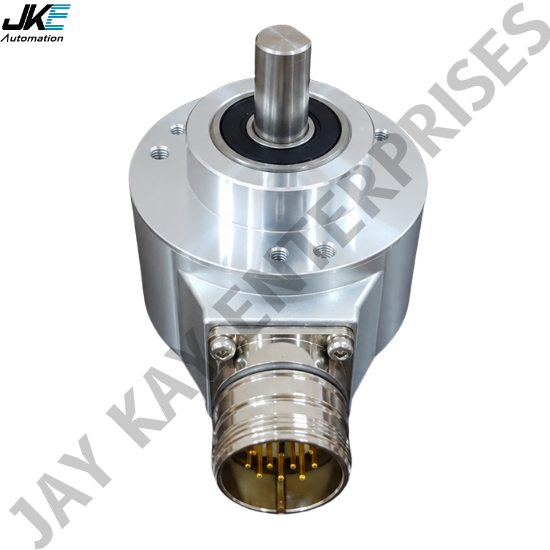

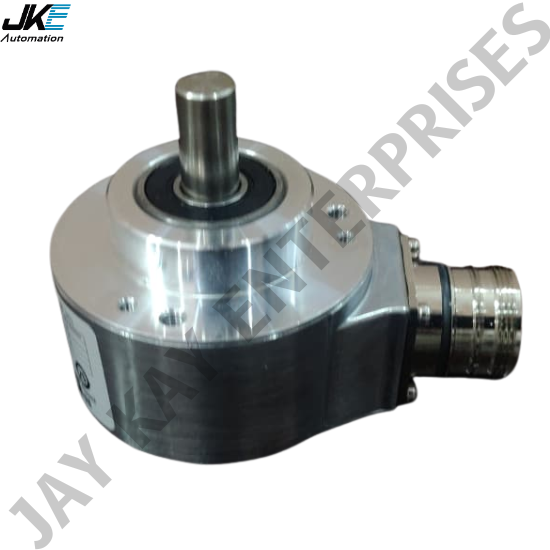

About Sick Dbs60 Incremental Encoders

PRODUCT DESCRIPTION

The DBS60 is a rugged incremental encoder with a 60 mm diameter and small installation depth The device comes in an aluminum or stainlesssteel housing and offers lots of mechanical interfaces The DBS60 Inox variants can even withstand harsh ambient conditions due their fully stainlesssteel design and rugged shaft seal The IP69K DBS60IW variant with its patented deflector screen is the ideal solution for applications in washdown environments In addition to the interfaces for TTL and HTL the DBS60 also offers two universal interfaces with a wide voltage range Due to the high enclosure rating rugged design and a resolution of up to 10000 pulses per resolution the DBS60 is suitable for applications in many different industries

BENEFITS

 Various installation options and connection types allow flexible cabling

 Compact housing dimensions save valuable space

 With its insulated hollow shafts the encoder is protect ed against damage from any eddy currents or higher temperatures transmitted by the shaft

 Stainless steel housing provides corrosion protection against environmental influences

 Protection against water ingress with IP enclosure rating up to IP69K  Reliable operation in harsh washdown environments with hot water and high pressure in the food and bever ages industry

FEATURES

 Pulses per revolution Up to 10000

 Housing diameter 60 mm

 Solid shaft blind hollow shaft and through hollow shaft

 Enclosure rating IP67 IP69K

 Communication interfaces TTLRS422 HTLPush Pull universal interface TTL HTL

 Connection type M12 or M23 male connector cable cable with M12 or M23 male connector

 Stainless steel or aluminum housing
