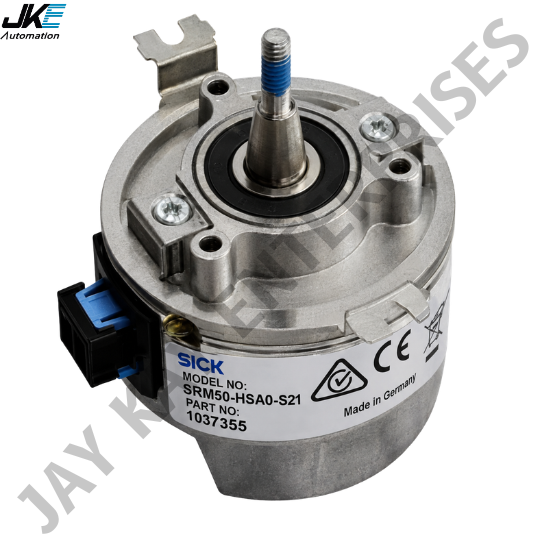

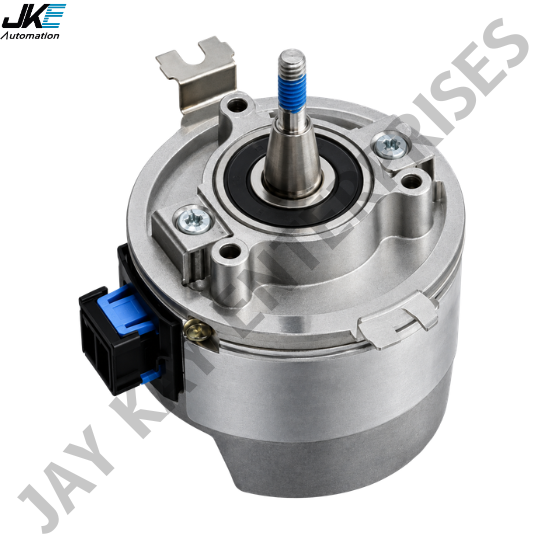

SICK SRM50-HSA0-S21 MOTOR FEEDBACK SYSTEMS

Price 48700.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

SICK SRM50-HSA0-S21 MOTOR FEEDBACK SYSTEMS Specification

Sensor Type
SICK Absolute Multiturn Encoder

Measurement Range
4,096 Revolutions

Ingress Protection
IP40

Interface
HIPERFACE

Housing Material

Signal Type
Digital

Features
Absolute Multiturn, Tapered Shaft

Operating Temperature
20 C ... +115 C Celsius (oC)

Response Time
1 Hours

Wireless
No

Mounting Type
Spring Mounting Plate

IP Rating
IP40

Application
Industrial Automation

Power Rating
IP40, with mating plug inserted (IEC 60529)

Product Type
SICK Motor Feedback System

Input
7 12 V DC

Output
Sine/Cosine Signals

Function
Motor Position Feedback

Usage
Servo Motor Feedback

Resolution
1,024 Sine/Cosine Periods per Revolution

Voltage
7 12 V DC Volt (v)

Usage & Applications
Servo Motors, Position and Speed Feedback

Weight
0.144 Kilograms (kg)

Rated Voltage
7 12 V DC Volt (V)

Cable Type
Male connector, 8-pin, radial

Warranty
1 YEAR

Display Type
SRM50-HSA0-S21

Frequency
200 Kilohertz ( KHZ )

SICK SRM50-HSA0-S21 MOTOR FEEDBACK SYSTEMS Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Week

About SICK SRM50-HSA0-S21 MOTOR FEEDBACK SYSTEMS

PRODUCT DESCRIPTION

The SRS/SRM50 motor feedback systems offer very high performance for high-precision and safe servo drives. The communication via HIPERFACE is compatible with the leading frequency inverters and supports the operator with automated commissioning of the application. Functionally safe applications are easy to implement thanks to safe speed detection. This means the SRS/SRM50 can be used simultaneously for controlling the motor and for safe ty-related monitoring, which saves on components and cabling. The universal attachment design and the reliable and maintenance-free mechatronic multiturn are further features of the SRS/SRM50.

BENEFITS

> Motor feedback system with HIPERFACE interface > High shock/vibration resistance thanks to built-in metal code disk > Consistent motor design due to identical size of single and multiturn design > To use of a motor feedback system certified to SIL2/ PL d makes it easier to have your system certified. > Very smooth running thanks to maximum ball bearing distance

FEATURES

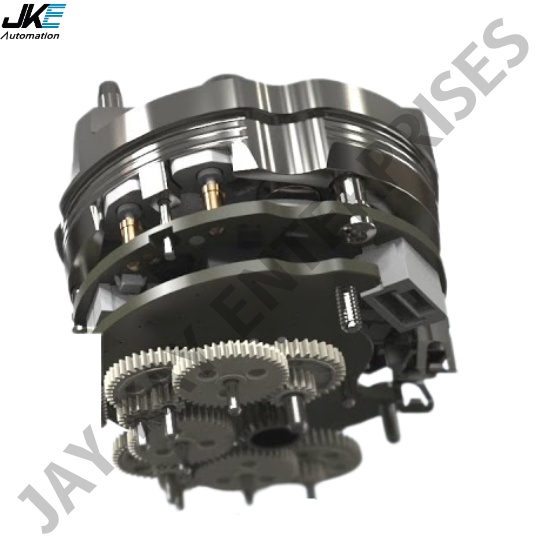

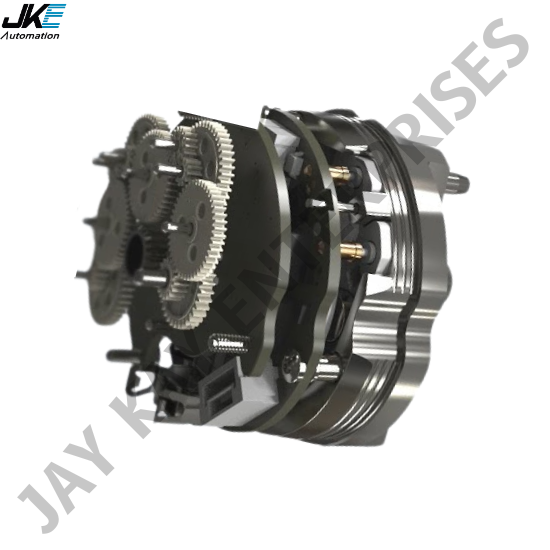

> Motor feedback systems for the top performance range > 1,024 sine/ cosine periods per revolution > Absolute position with a resolution of 32,768 increments per revolution and 4,096 revolutions with the multiturn system > HIPERFACE interface: Programming of the position value and electronic type label > Insert shaft or tapered shaft with various torque sup ports > Integrated version, mounted version or stand-alone de sign > Certified according to SIL2/PL d (only valid for SRS50S/SRM50S...) > Conforms to RoHs
