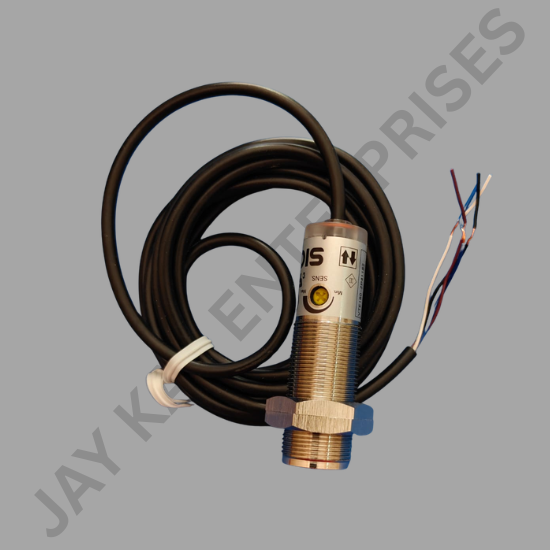

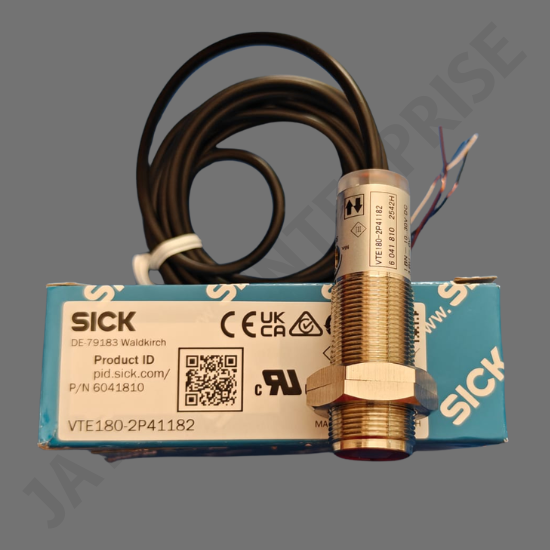

V180 PHOTOELECTRIC SENSOR

Name: V180 PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

V180 PHOTOELECTRIC SENSOR Specification

Operating Temperature
25 C ... +55 C Celsius (oC)

Wireless
No

IP Rating
IP67

Ingress Protection
A 8) B 9) D 10)

Cable Length
645 Nanometer (nm)

Response Time
1 Days

Housing Material
Metal, Nickel-plated brass and PC

Mounting Type
M18 x 1

Sensor Type
PHOTOELECTRIC SENSORS - VTE180-2P41182

Spectral Range
1 mm ... 1,100 mm

Mounting Thread
M18 x 1

Features
Energetic

Signal Type
Digital

Measurement Range
1 mm ... 1,100 mm

Power Consumption
30 mA Ampere

Application
Application know-how is the basis for everything

Power Rating
IP67

Product Type
VTE180-2P41182

Input
PHOTOELECTRIC SENSORS - VTE180-2P41182

Output
PNP

Function
Photoelectric proximity sensor

Usage
Application know-how is the basis for everything

Accuracy
30 mm mm

Resolution
There is a solution for every application. Together we will find yours.

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Application know-how is the basis for everything

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
95 g Grams (g)

Cable Type
Cable, 4-wire, 2 m

Warranty
1 year

Display Type
PHOTOELECTRIC SENSORS - VTE180-2P41182

Rated Current
30 mA Milliampere (mA)

Frequency
1,000 Hertz (HZ)

Material
Plastic, PMMA

Conductor
0.18 mm

V180 PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About V180 PHOTOELECTRIC SENSOR

PRODUCT DESCRIPTION

The V180 sensors were developed to be able to offer a maximum scanning range. The cost-effective cylindrical sensors are easy to operate and simple to install and maintain. This minimizes the installation time and maintenance costs. The V180 sensors are available both in a plastic and metal housing. The bright red-light LED with easily visible light spot simplifies installation. In addition, the highly visible status indicator makes troubleshooting quick and easy. The V180 therefore provides an economical solution for many universal applications such as product detection, positioning in pack aging machines, manufacturing automation, and material and conveying technology.

AT A GLANCE

Low-cost M18 housing sensor on the market.
Long sensing distances: 100 mm, 400 mm, 800 mm (proximity sensor), 300 mm (proximity sensor with BGS), 6 m (retro-reflective sensor) and 20 m (through-beam sensor).
Bright power and signal LEDs with 360 visibility.
Wide product portfolio solves a broad range of applications.
High switching frequencies up to 1000 Hz.
Available in a metal housing for applications in harsh environments.
Optical axis selectively axial or radial (90).

YOUR BENEFITS

Cost-effective cylindrical M18 sensor lowers installation costs.
Brightly lit red emitter LED simplifies alignment and saves mounting time.
Bright status display with 360 visibility enables quick and easy troubleshooting and thus reduces maintenance costs and time.
The flat, smooth front screen reduces the accumulation of dust and dirt. This ensures reliable operation and reduces both maintenance and costs.

ORDERING INFORMATION

Other models and accessories www.sick.com/V180.
Functional principle: Photoelectric proximity sensor.
Functional principal detail: Energetic.
Light source: LED.
Voltage type: DC.
Switching mode: Light/dark switching.
Type of light: visible red light.

Durable and Versatile Construction

Built with a combination of high-grade plastic PMMA and metal housing, the V180 Photoelectric Sensor is engineered to withstand both demanding industrial environments and daily operational wear. Its IP67 rating ensures exceptional protection against dust and water ingress, making it ideal for various applications requiring reliability and longevity.

Advanced Sensing Performance

With a wide spectral range of 1 mm to 1,100 mm and precision accuracy at 30 mm, the V180 adapts seamlessly to diverse industrial tasks. Its 1,000 Hz operating frequency and energetic mode of operation guarantee fast, reliable detection, even for challenging targets. Installation is straightforward thanks to its M18 x 1 mounting thread and 2-meter cable, simplifying process integration.

FAQ's of V180 PHOTOELECTRIC SENSOR:

Q: How do I install the V180 Photoelectric Sensor?

A: The V180 Photoelectric Sensor is designed for straightforward installation using an M18 x 1 mounting thread. Simply secure the sensor onto the designated fixture, connect the 4-wire, 2-meter cable as per wiring instructions, and ensure proper alignment for optimal sensing.

Q: What are the primary applications for the V180 Photoelectric Sensor?

A: This sensor is suited for a broad range of industrial automation tasks, particularly where high-speed and accurate object detection is essential. Its robust construction and IP67 rating allow use in environments where dust and water may be present, such as packaging, production lines, and logistics.

Q: What are the sensor's benefits in an industrial environment?

A: The V180 Photoelectric Sensor offers quick response times, reliable detection over a broad measurement range, and robust ingress protection, ensuring consistent performance and reduced downtime in demanding industrial conditions.

Q: When should I consider using this specific model?

A: The V180 is ideal when applications demand precision detection within 1 mm to 1,100 mm, high durability, and operation under variable temperatures-from -25C to +55C. Use it when reliable and speedy detection is paramount for your process.

Q: Where can the V180 sensor be mounted?

A: The V180 sensor is flexible in mounting thanks to its M18 x 1 threaded design. It can be attached to any compatible bracket or surface within your automation system, ensuring optimal sensor placement for your specific application needs.

Q: What maintenance is required for this photoelectric sensor?

A: Minimal maintenance is necessary owing to its rugged design and protective housing. Periodic checks for lens cleanliness and secure cable connections help guarantee consistent performance over its operational life.

Q: What is included in the warranty for this sensor?

A: The V180 Photoelectric Sensor comes with a one-year warranty, providing coverage against potential manufacturing defects and ensuring reliable support from the manufacturer during the coverage period.
