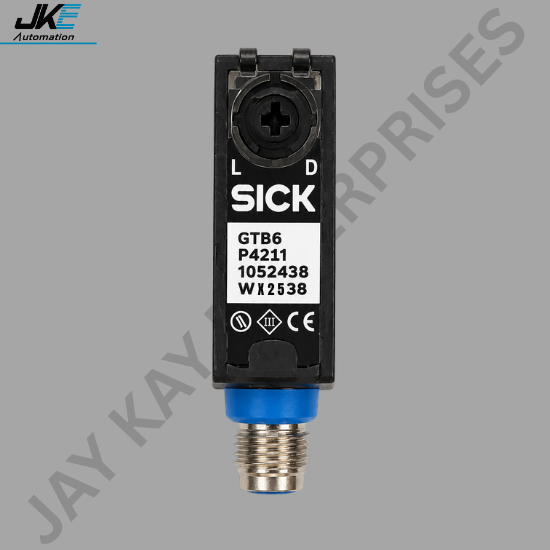

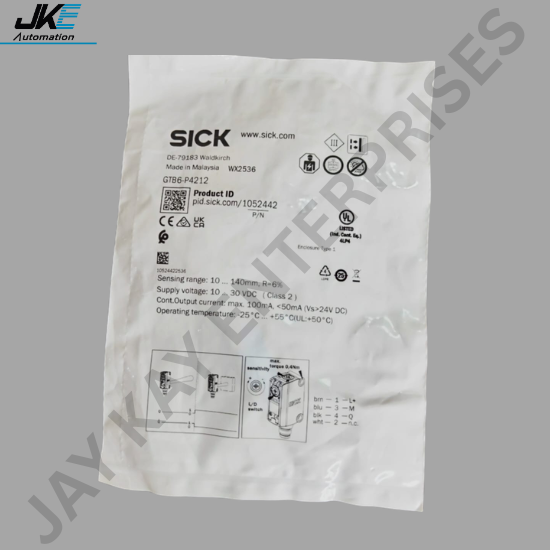

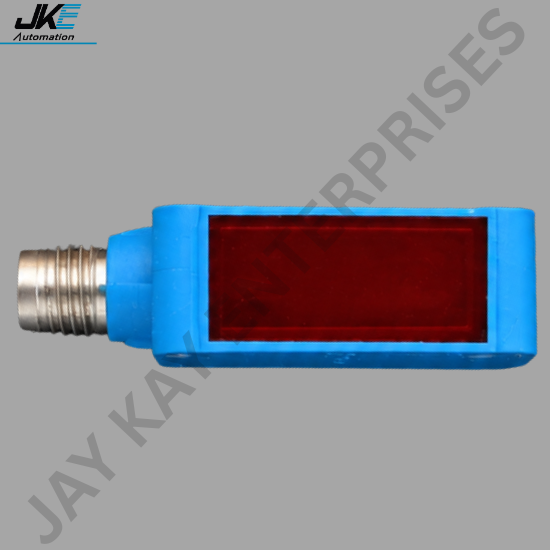

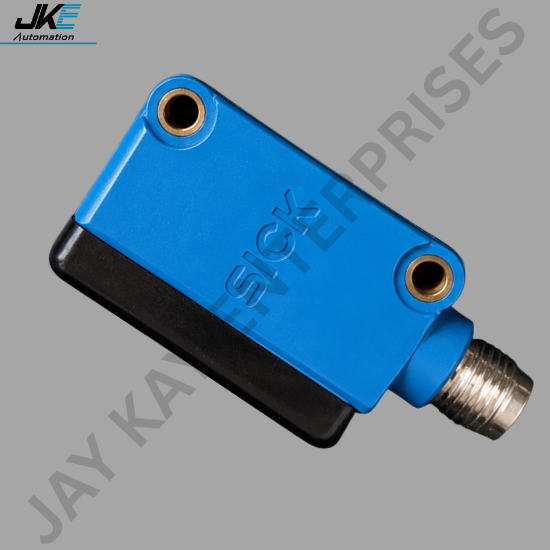

G6 PHOTOELECTRIC SENSOR

Name: G6 PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 2350.0 INR
Availability: InStock

Price 2350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

G6 PHOTOELECTRIC SENSOR Specification

Mounting Type
holes M3

Features
Background suppression

Mounting Thread
holes M3

Ingress Protection
A 7) B 8) D 9)

Response Time
1 Days

Sensor Type
GTB6-P4212

Wireless
No

Measurement Range
5 mm ... 250 mm

Power Consumption
30 Ampere

Application
Leading edge detection and presence checking

Operating Temperature
25 C ... +55 C Celsius (oC)

IP Rating
IP67

Spectral Range
5 mm ... 250 mm

Signal Type
Digital

Cable Length
650 Nanometer (nm)

Housing Material
Plastic, ABS/PC

Product Type
GTB6-P4212

Power Rating
IP67

Input
PHOTOELECTRIC SENSORS

Output
PNP

Function
Photoelectric proximity sensor

Usage
Leading edge detection and presence checking

Accuracy
6 mm

Resolution
solutions in industrial automation

Voltage
10 V DC ... 30 V DC Volt (v)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Weight
27.00 Grams (g)

Usage & Applications
Leading edge detection and presence checking

Cable Type
Male connector M8, 4-pin

Warranty
1 year

Display Type
SICK G6 PHOTOELECTRIC SENSORS

Material
Plastic, PMMA

Frequency
1000 Hertz (HZ)

Rated Current
30 Milliampere (mA)

G6 PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Main Domestic Market
All India

G6 PHOTOELECTRIC SENSOR About

Product description

The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With Pinpoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.

At a glance

Pinpoint LED and class 1 laser variants
SICK ASIC, the result of decades of experience with photoelectric sensors
Photoelectric proximity sensors with background suppression, energetic photoelectric proximity sensors, and through-beam photoelectric sensors
ABS plastic housing and V4A stainless-steel 1.4404 (316L) housing
Enclosure ratings IP67 and IP69K

Your benefits

Pinpoint LEDs (with visible red light and infrared light) or variants with a laser light spot enable objects to be detected reliably and are therefore suitable for a broad range of applications
Superior optical performance and robustness thanks to the ASIC from SICK
Quick and easy mounting and high durability thanks to the metal inserts with M3 thread
Easy installation and adjustment with user friendly potentiometer and highly visible indicator LEDs
Variants with a stainless-steel housing and IP69K enclosure rating ensure a long sensor service life in demanding washdown ap plications

Fields of application

Industries with high cleaning requirements (e.g. food and beverage)
Harsh environments requiring tough metal housing. e.g. due to mechanical impacts
Applications with high aesthetic standards
