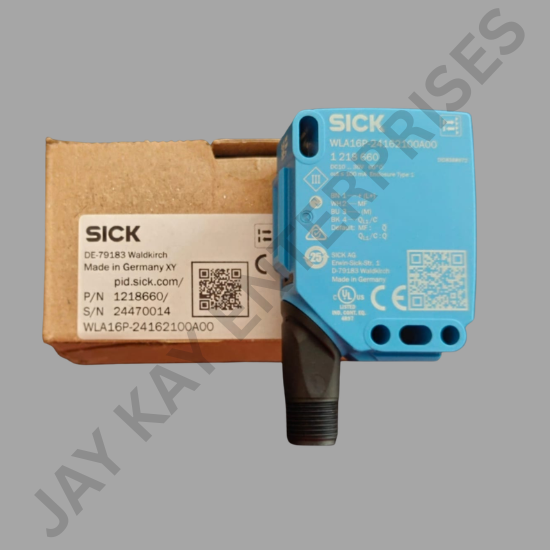

W16 PHOTOELECTRIC SENSORS

Name: W16 PHOTOELECTRIC SENSORS
Brand: JAY KAY ENTERPRISES
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

W16 PHOTOELECTRIC SENSORS Specification

Mounting Type
4.1 mm

Application
Counting of products at the infeed

Cable Length
635 nm Nanometer (nm)

Signal Type
Digital

Mounting Thread
4.1 mm

Ingress Protection
III

IP Rating
IP66

Response Time
1 Days

Operating Temperature
40 C ... +60 C Celsius (oC)

Wireless
No

Sensor Type
WLA16P-24162100A00

Housing Material
Plastic, VISTAL

Spectral Range
0 m ... 10 m

Measurement Range
0 m ... 10 m

Power Consumption
30 mA Ampere

Power Rating
IP66

Product Type
WLA16P-24162100A00

Input
PHOTOELECTRIC SENSORS

Output
PNP/NPN

Function
Photoelectric retro-reflective sensor

Usage
Counting of products at the infeed

Accuracy
80 mm mm

Resolution
solutions for industrial applications.

Voltage
10 V DC ... 30 V DC Volt (v)

Usage & Applications
Counting of products at the infeed

Weight
50 Grams (g)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Warranty
1 year

Cable Type
M12 male connector, 4-pin

Display Type
PHOTOELECTRIC SENSORS

Rated Current
100 mA Milliampere (mA)

Features
Without reflector minimum distance

Frequency
1000 Hertz (HZ)

Material
Plastic, PMMA

W16 PHOTOELECTRIC SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

W16 PHOTOELECTRIC SENSORS About

PRODUCT DESCRIPTION

Depending on the variant, the W16 is equipped with new technologies such as Twin Eye, Line Spot and Clear Sens for reliable object detection. It can be quickly and conveniently adjusted via the Blue Pilot operating and display concept. Every W16 can be configured for the specific application via IO-Link and also offers diagnostic functions. Well-visible red Pinpoint LEDs and infrared LEDs serve as the light source. The W16 sensors deliver reliable detection thereby reducing unplanned machine downtimes. Ready-to-install variants with metal housings are available for explosion-hazardous areas that meet the requirements of device categories 3D and 3G according to ATEX.

AT A GLANCE

Twin Eye, Line Spot, Clear Sens, Spot Size Recognition
Two independent switching points, fast distance value output, Dust Alert
Powerful, highly visible LEDs: Pinpoint-Pro, Pinpoint; infrared
Optical alignment aid, Teach-Turn adjustment, IO-Link
40 C ... +60 C, sensor variants according to category 3D and 3G

YOUR BENEFITS

Fault-free system operation thanks to rugged and reliable object detection with Optical Experts
The all-in-one photoelectric proximity sensor, WTM16F, for various applications reduces storage and handling effort, saves costs and simplifies processes
Solution for challenging detection tasks thanks to different light sources
Intuitive and quick commissioning, alignment and adjustment
Protection from disruptive environmental influences

FIELDS OF APPLICATION

Packaging
Food and beverage
Handling and assembly
Machine tools
Storage and conveyor
Rubber and plastics
Wood
Textile

ORDERING INFORMATION

Sensing range min. / max.: 0.25 m / 14 m
Functional principle: Photoelectric retro-reflective sensor
Functional principal detail: With minimum distance to reflector (dual lens system)
Switching mode: Light/dark switching
Switching output: push-pull: PNP/NPN
Light source: Pinpoint LED
Type of light: visible red light
Housing: rectangular
