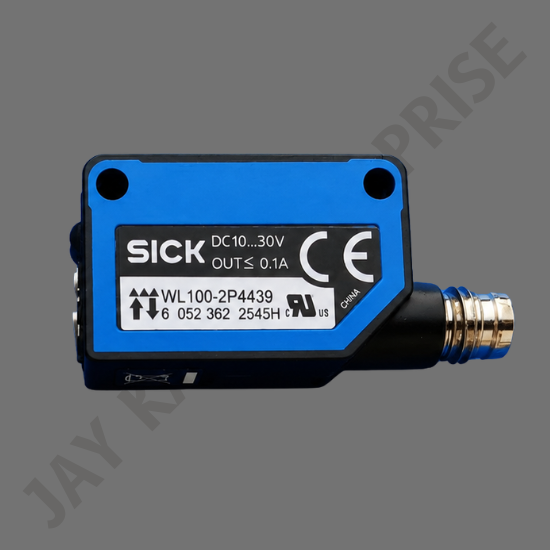

W100-2 SICK PHOTOELECTRIC SENSOR

Name: W100-2 SICK PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 3700.0 INR
Availability: InStock

Price 3700.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

W100-2 SICK PHOTOELECTRIC SENSOR Specification

IP Rating
IP67

Ingress Protection
A 6) B 7) D 8)

Housing Material
Plastic, ABS/PC/POM

Power Consumption
30 mA Ampere

Spectral Range
0.01 m ... 7.2 m

Signal Type
Digital

Measurement Range
0.01 m ... 5.5 m

Application
Access monitoring for multi-order picking

Sensor Type
WL100-2P4439

Wireless
No

Features
With minimum distance to reflector (dual lens system)

Response Time
1 Days

Operating Temperature
25 C ... +55 C Celsius (oC)

Mounting Thread
hole M3

Sensitivity
Potentiometer

Cable Length
632 nm Nanometer (nm)

Product Type
WL100-2P4439

Power Rating
IP67

Input
photoelectric sensor

Output
PNP

Function
Photoelectric retro-reflective sensor

Usage
multi-order picking

Accuracy
280 mm mm

Voltage
10 V DC ... 30 V DC Volt (v)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Usage & Applications
Access monitoring for multi-order picking

Cable Type
Visible red light

Warranty
1 year

Frequency
1,000 Hz Hertz (HZ)

Rated Current
30 mA Megaampere ( MA)

Material
Plastic, PMMA

W100-2 SICK PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1 Week

About W100-2 SICK PHOTOELECTRIC SENSOR

PRODUCT DECRIPTION

W100-2 miniature photoelectric sensors are compatible with all standard detection principles (through-beam photoelectric sensors, photoelectric retro-reflective sensors, photoelectric retro-reflective sensors for detecting transparent objects, energetic sensors, and sensors with background blanking), making them an ideal sensor family for detection applications. The housing design includes M3 threaded mounting holes, spaced one inch apart, that allows for straightforward, standardized, and inexpensive mounting. As a result, the W100-2 product family offers an economical photoelectric sensor solution with outstanding performance.

AT A GLANCE

Reliable detection behavior, rugged housing and immunity to ambient light.
WT100-2 photoelectric proximity sensor (energetic or with background blanking).
WL100-2 photoelectric retro-reflective sensor; variant available for detecting transparent objects.
WS/WE100-2 through-beam photoelectric sensor.
Various connection types available (standard: 2 m cable; M8 male connector, 3-pin; M8 male connector, 4-pin; male cable connector available on request).
Light/dark switching and sensitivity adjustment possible.
Wide range of accessories

YOUR BENEFITS

Reliable detection in standard applications.
Short downtime and high throughput thanks to reliable object detection.
Ability to handle a wide range of detection principles within a single standardized housing, reducing the number of model variants.
Simple commissioning thanks to easily visible display LEDs.
Easy to set up thanks to user-friendly potentiometer (dependent on model).
Standard housing that is compatible with many commonly used mounting systems.
Easy mounting thanks to 1-inch hole spacing.
High level of operating reserve minimizes susceptibility to contamination

FIELDS OF APPLICATION

Wide range of standard applications that require efficient miniature photoelectric sensors.
Storage and conveyor systems in the logistics industry.
Detection of a wide variety of objects in packaging processes.
Reliable detection of people in door and gate applications

Precision Sensing for Access Monitoring

The WL100-2P4439 utilises a sophisticated retro-reflective, dual lens system to accurately detect objects within 0.01-5.5 meters, making it ideal for multi-order picking environments. Its visible red light simplifies sensor calibration and alignment, ensuring your workflow remains streamlined and efficient.

Durability and Robust Engineering

Constructed from Plastic, PMMA, and reinforced with ABS/PC/POM, the W100-2 is designed to endure harsh environments. Its IP67 ingress protection rating ensures resistance to dust and water, supporting reliable operation even in demanding warehouse settings.

FAQ's of W100-2 SICK PHOTOELECTRIC SENSOR:

Q: How does the W100-2 SICK Photoelectric Sensor function in access monitoring?

A: This sensor uses a photoelectric retro-reflective system, emitting visible red light to detect objects or individuals as they pass between the sensor and the reflector, triggering an output for automated access monitoring in multi-order picking systems.

Q: What are the primary benefits of the dual lens system in this sensor?

A: The dual lens system minimizes the required distance to the reflector, enhancing detection accuracy, reducing blind spots, and allowing for more compact installation in tight spaces.

Q: Where is the optimal installation environment for the W100-2 sensor?

A: It is best installed in warehouse facilities requiring precise access monitoring, especially for multi-order picking, where its IP67 rating and wide operating temperature tolerance offer superior reliability.

Q: When should you consider using this photoelectric sensor in your operation?

A: Employ this sensor when you need accurate object detection over distances up to 5.5 meters, especially for automating or optimizing picking or access operations in logistics environments.

Q: What is the process for adjusting sensitivity on the W100-2 sensor?

A: Sensitivity can be fine-tuned via the integrated potentiometer, allowing operators to calibrate detection parameters for different objects or environmental conditions.

Q: What type of signal output does the W100-2 provide, and what does it mean for integration?

A: The sensor offers a PNP digital output, making it compatible with most industrial automation systems for seamless integration and reliable signal transmission.

Q: How durable is the W100-2 sensor in demanding environments?

A: With an IP67 rating, robust housing materials, and a wide temperature range, the sensor is built to withstand dust, moisture, and temperature variations commonly found in industrial and warehouse settings.
