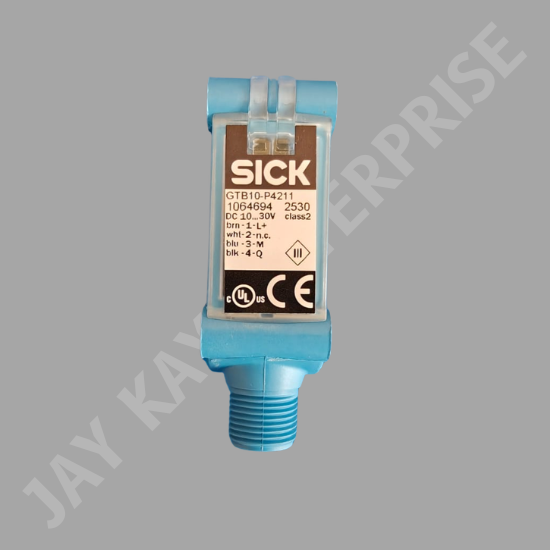

G10 Photoelectric proximity sensor

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

• Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector
• PinPoint LED with bright and precise light spot
• Small housing design
• 10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output
• Rugged sensor housing with metal-reinforced holes for assembly
• Q-Lock assembly system for mounting the sensor within a few seconds

YOUR BENEFITS

Long sensing ranges for maximum operating reserves

Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multi Ple sensors A single sensor family for all industrial and commercial fields of application

Universal DC or AC/DC power supply for even greater application flexibility

Highly reliable and durable despite optical interference or mechanical loads

Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors

Q: How does the G10 Photoelectric Proximity Sensor function in access barrier monitoring?

A: The sensor detects objects by using a light/dark switching mechanism within a spectral range of 20 to 950 mm. When an object interrupts its light beam, the sensor quickly sends a digital PNP output signal, making it ideal for monitoring access barriers.

Q: What installation options are available for the G10 sensor?

A: The G10 sensor offers flexible mounting with a 4.2 mm mounting hole and thread, allowing secure attachment to various surfaces. Its compact and lightweight build (35 g) simplifies installation, suitable for tight or limited spaces.

Q: Where is the G10 Photoelectric Proximity Sensor typically used?

A: This sensor is primarily used in environments requiring barrier monitoring, such as industrial entry points, warehouse aisles, and automated picking systems, thanks to its robust IP67 protection and versatile application range.

Q: What process should I follow to maintain optimal sensor performance?

A: Ensure the sensor is kept clean, particularly the optical surface, and inspect wiring connections regularly. Operating within the specified voltage (10 V DC to 30 V DC) and temperature range (-40C to +70C) is essential for consistent performance.

Q: What are the key benefits of using this photoelectric sensor?

A: Benefits include high detection accuracy (0.5 mm), rapid response (up to 1,000 Hz), durability with IP67 rating, and ease of installation. These features contribute to reliable, maintenance-friendly operation in demanding environments.

Q: When should the G10 sensor be considered for use?

A: Use the G10 sensor whenever you require precise and swift detection of objects for access control, object counting, or pick verification in automation processes, especially where longevity and resilience are priorities.

Q: What warranty coverage is provided with the G10 Photoelectric Proximity Sensor?

A: The sensor is supplied with a 1-year warranty, offering assurance against manufacturing defects and supporting reliable long-term operation.
