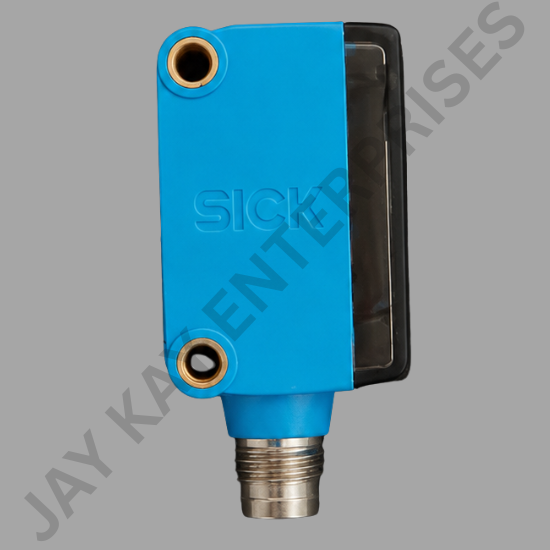

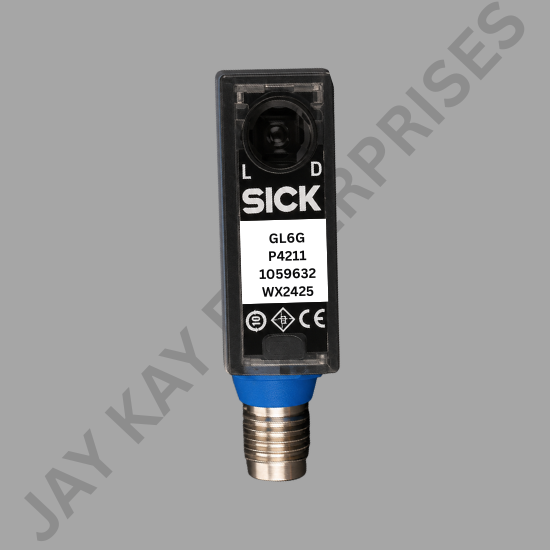

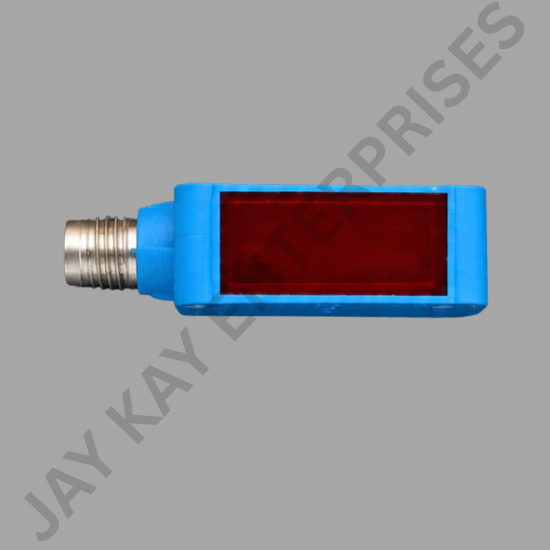

Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm 15 mm x 44 mm x 22 mm 12 mm x 31.6 mm x 21 mm Functional principle detail Energetic Background suppression With minimum distance to reflector (dual lens system) (depends on variant) Light source Pinpoint LED. LED Laser(depends on variant) Type of light Visible red light / Infrared light(depends on variant) Enclosure rating IP67 / IP67 / IP69K(depends on variant) Housing material Plastic / metal(depends on variant) Adjustment Potentiometer / none(depends on variant) The photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With Pinpoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.

•  LED and class 1 laser variants
• SICK ASIC, the result of decades of experience with photoelectric sensors
• Photoelectric proximity sensors with background suppression, energetic photoelectric proximity sensors, and through-beam photoelectric sensors
• ABS plastic housing and V4A stainless-steel 1.4404 (316L) housing
• Enclosure ratings IP67 and IP69K

Your benefits
