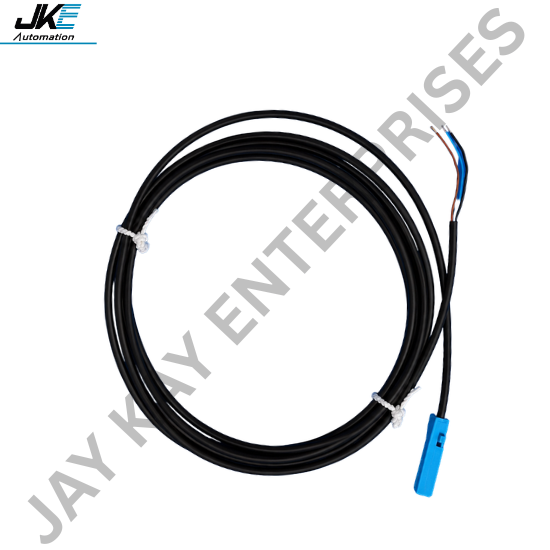

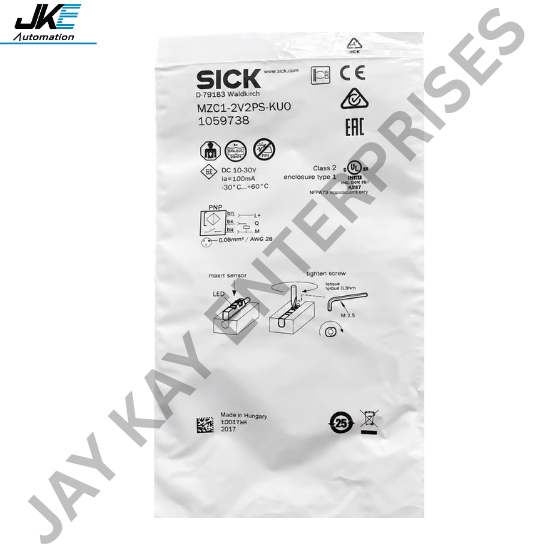

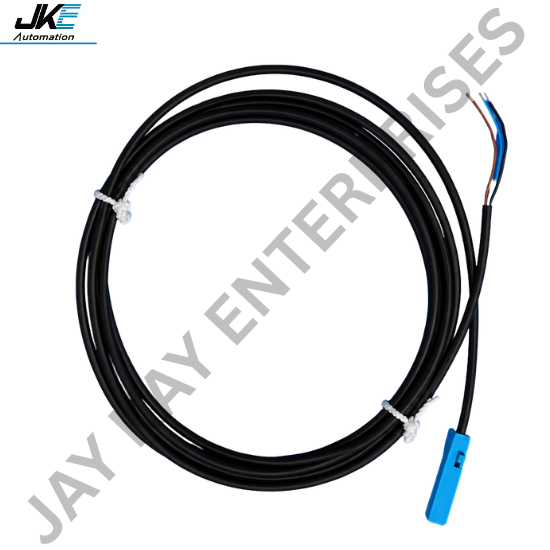

MZC1 CYLINDER SENSORS

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MZC1 CYLINDER SENSORS Specification

Cable Length
23.7 Millimeter (mm)

Sensor Type
CYLINDER SENSORS

IP Rating
IP68 1) IP69K

Features
NO

Wireless
No

Signal Type
Digital

Power Consumption
8 Ampere

Sensitivity
2.2

Operating Temperature
30 C ... +80 C Celsius (oC)

Ingress Protection
III

Response Time
1 Days

Application
Monitoring of clamping cylinders

Housing Material
Plastic

Power Rating
IP68 1) IP69K

Product Type
MZC1-2V2PS-KU0

Input
CYLINDER SENSORS - MZC1-2V2PS-KU0

Output
PNP

Function
NO

Usage
Monitoring of clamping cylinders

Accuracy
2.2 mm

Resolution
solutions in industrial automation

Voltage
10 V DC ... 30 V DC Volt (v)

Rated Voltage
10 V DC ... 30 V DC Volt (V)

Usage & Applications
Monitoring of clamping cylinders

Weight
20 Grams (g)

Warranty
1 year

Cable Type
Cable, 3-wire, stripped, 2 m

Display Type
CYLINDER SENSORS

Rated Current
100 Milliampere (mA)

Frequency
1000 Hertz (HZ)

Conductor
0.09mm

Material
plastic

MZC1 CYLINDER SENSORS Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About MZC1 CYLINDER SENSORS

Product description

The MZC1 cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators. The MZC1 can be mounted directly into all cylinders with standard C-slots. SICK also has an extensive range of adapters which enable the MZC1 to be used with other cylinder types. The MZC1 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder. Furthermore, the MZC1 is available in a range of variants up to an enclosure rating of IP 69K. This ensures the sensor has a long service life and reduces maintenance costs.

At a glance

Can be used in all standard cylinders, linear slides, and grippers using the C-slot and with the help of adapters in round rod, tie-rod, and profile cylinders
Insertion of the sensor into the slot from above makes mounting quick and easy
Combined fixing screw (hexagon socket screw and slotted screw
LED for indicating the output state
Enclosure ratings: IP 67, IP 68, IP 69K

Your benefits

A sensor for a wide range of applications: The sensor design fits into all standard C-slots used around the world, regardless of the cylinder profile or make
Quick and easy mounting using an Allen key or flat-head screwdriver
Low maintenance costs as the sensor is resistant to shock and vibration, meaning it does not slide about in the slot
Saves time on initial installation and when replacing devices as the sensor can be easily inserted into the slot from above. The end caps of the cylinder do not have to be removed
Very rugged housing with enclosure rating IP 67, IP 68, or IP 69K extends the service life of the sensor
