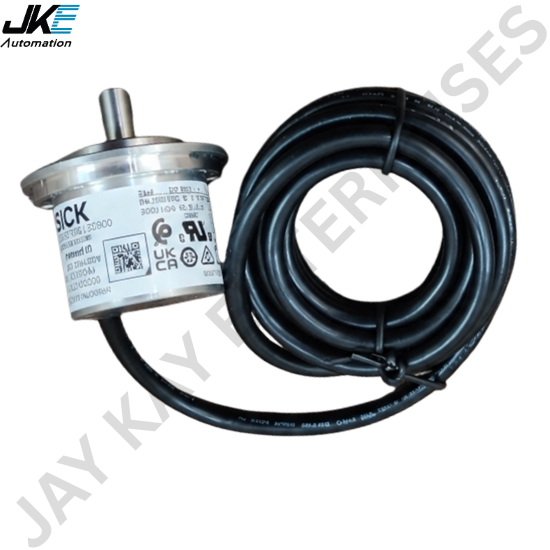

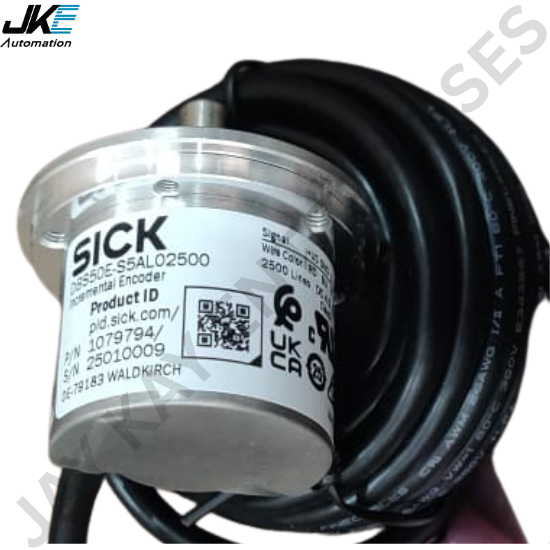

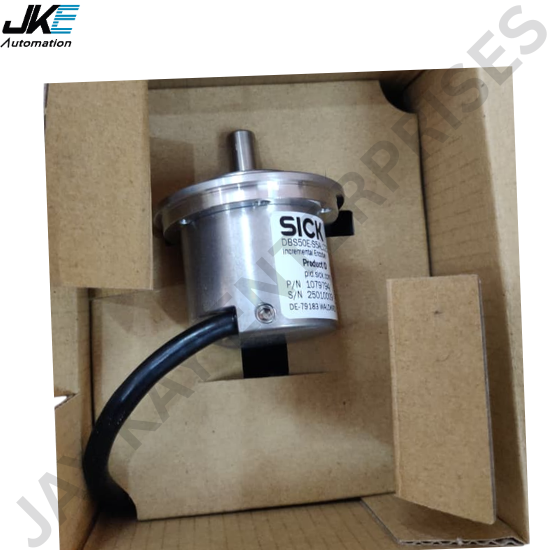

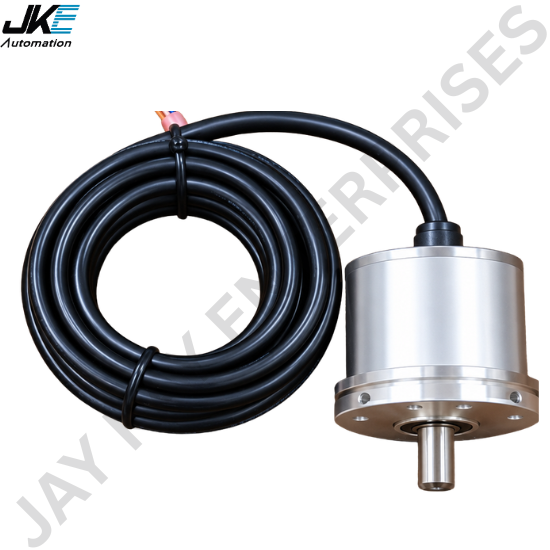

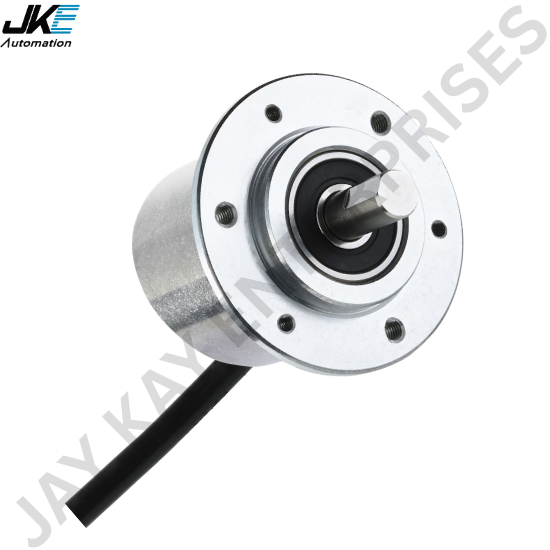

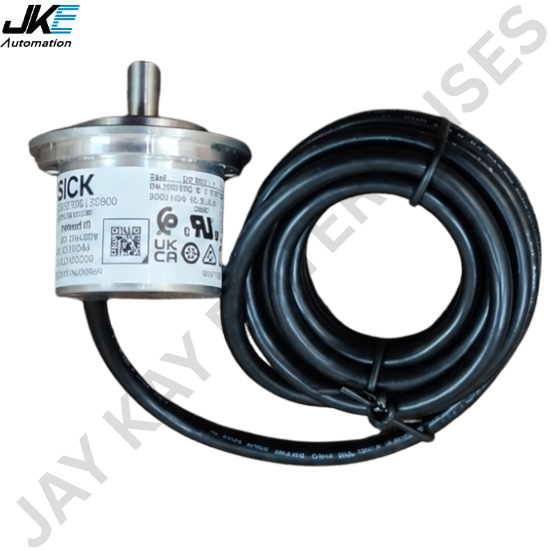

Send InquirySick Dbs50e-s5al02500 Incremental Encoders
Price 9300.0 INR/ Piece
MOQ : 10 Pieces
Sick Dbs50e-s5al02500 Incremental Encoders Specification
- Operating Temperature
- 20 C to +85 C Celsius (oC)
- Application
- Industrial Machinery
- Response Time
- 1 Hours
- Interface
- TTL / RS-422
- Features
- Solid Shaft, 8 mm diameter
- Cable Length
- 3 Meter (m)
- Signal Type
- Digital
- Ingress Protection
- IP65
- Mounting Type
- Face Mount Flange
- Measurement Range
- Continuous 360 rotation
- Housing Material
- Aluminum
- Sensor Type
- SICK DBS50E-S5AL02500 Incremental Encoder
- IP Rating
- IP65
- Wireless
- No
- Product Type
- SICK Incremental Encoder
- Power Rating
- IP65
- Material
- Aluminum
- Input
- Rotational Motion
- Output
- TTL / RS-422
- Function
- Speed and Position Measurement
- Usage
- Industrial Automation
- Accuracy
- 54 °C
- Resolution
- 2500 PPR
- Voltage
- 4.5 ... 5.5 V Volt (v)
- Weight
- 0.326 Kilograms (kg)
- Rated Voltage
- 4.5 ... 5.5 V Volt (V)
- Usage & Applications
- Speed and Position Feedback
- Cable Type
- 8-wire universal cable
- Warranty
- 1 YEAR
- Display Type
- SICK DBS50E-S5AL02500
- Rated Current
- 50 Milliampere (mA)
- Frequency
- 5300 Kilohertz ( KHZ )
Sick Dbs50e-s5al02500 Incremental Encoders Trade Information
- Minimum Order Quantity
- 10 Pieces
- Delivery Time
- 1 Week
About Sick Dbs50e-s5al02500 Incremental Encoders
PRODUCT DESCRIPTION
The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings, the DBS36/50 devices offer comprehensive mounting options. All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.
BENEFITS
> The flexible cable connection makes installation flexible and easy especially when space is limited
> Tailorable to the application: Many mounting options due to various flanges and universal stator couplings
> Can be used internationally thanks to shafts in both metric and inch sizes
> The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications
> The compact housing diameter saves valuable space
> The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and storage life
FEATURES
> Pulses per revolution: Up to 2,500
> Housing diameter: 36 mm or 50 mm
> Solid shaft and blind hollow shaft
> Enclosure rating: IP65
> Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
> Connection type: Cable, cable with M12 or M23 male connector
