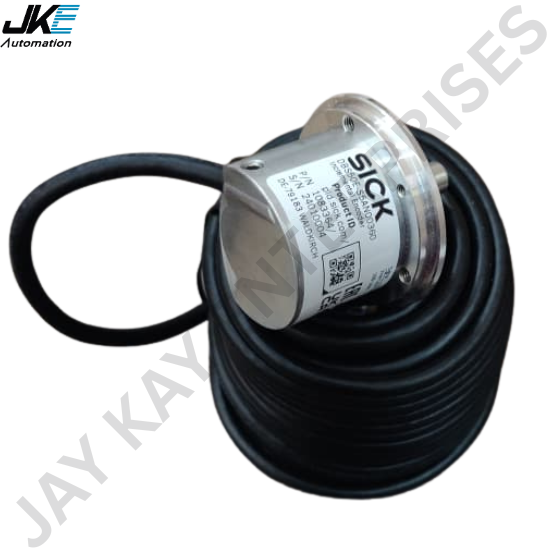

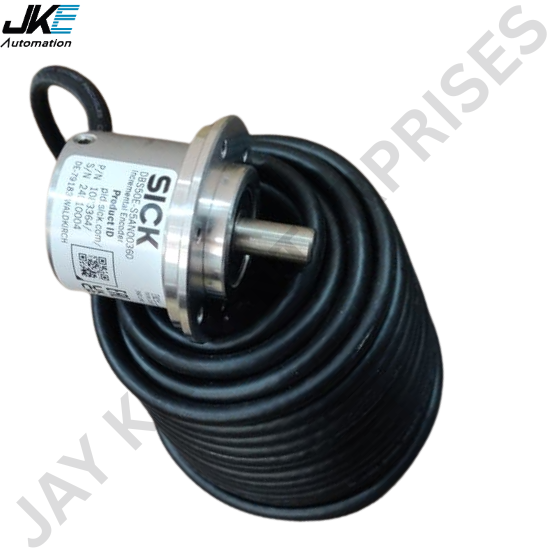

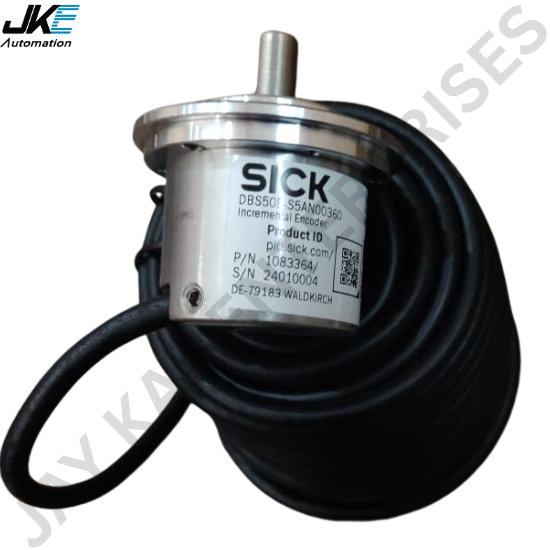

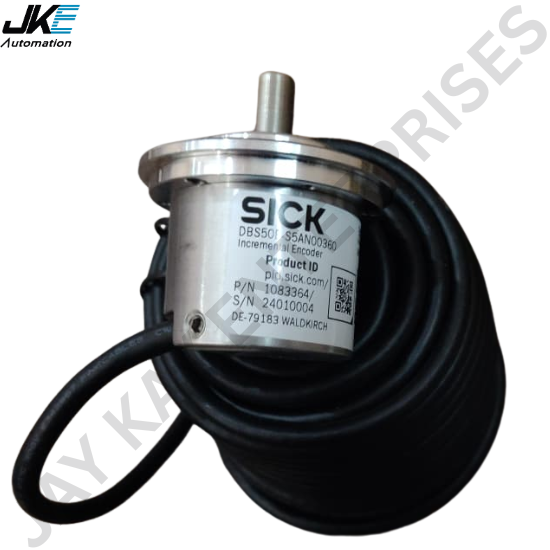

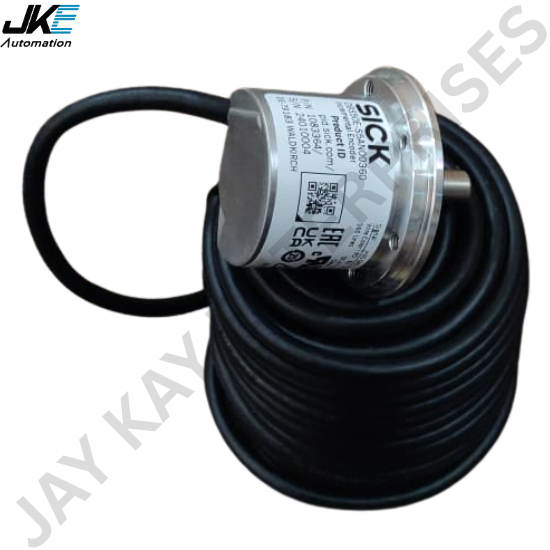

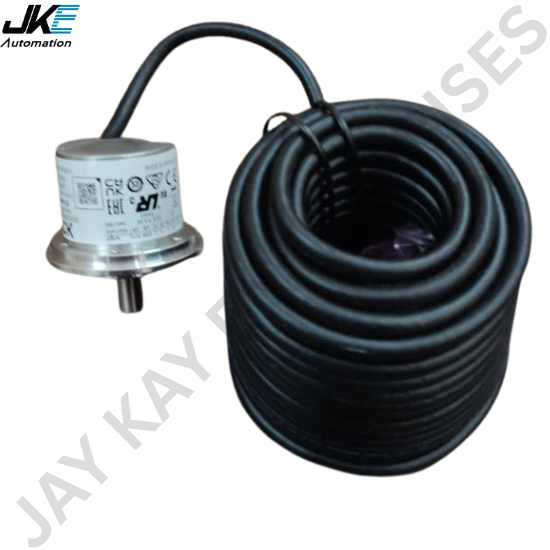

The SICK DBS50E-S5AN00360 is a compact, high-performance incremental rotary encoder designed for accurate measurement of rotational movement, speed, and direction. It converts mechanical rotation into electrical pulse signals that can be processed by PLCs, counters, and motion-control systems. It features a solid shaft, face-mount flange, and cable connection for integration into industrial automation applications.

• Accurate motion measurement: Provides reliable feedback for rotational speed and position monitoring.

• Compact design: Suitable for installations where mounting space is limited.

• Easy integration: TTL / RS-422 interface supports compatible industrial control systems.

• Reliable operation: Designed for continuous feedback in automation and machinery.

• Flexible mounting: Face-mount flange and solid-shaft construction simplify mechanical integration.

• Efficient machine control: Helps improve positioning, speed regulation, and process consistency.

Features

• Incremental rotary encoder technology.

• 360 pulses per revolution (PPR).

• 4.55.5 V DC operating supply.

• TTL / RS-422 electrical interface.

• Solid shaft design.

• Face-mount flange with standard hole pattern.

• 8 mm shaft diameter.

• 10 m cable connection.

• Compact DBS50 Core series construction.
