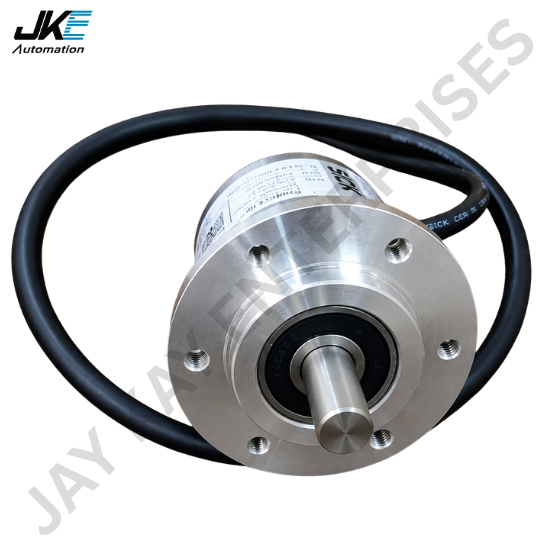

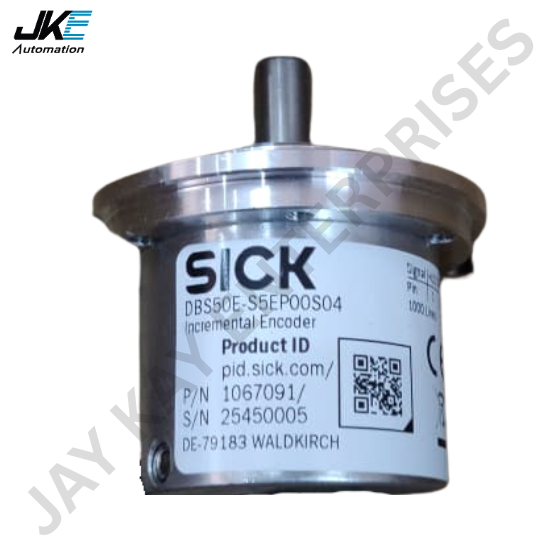

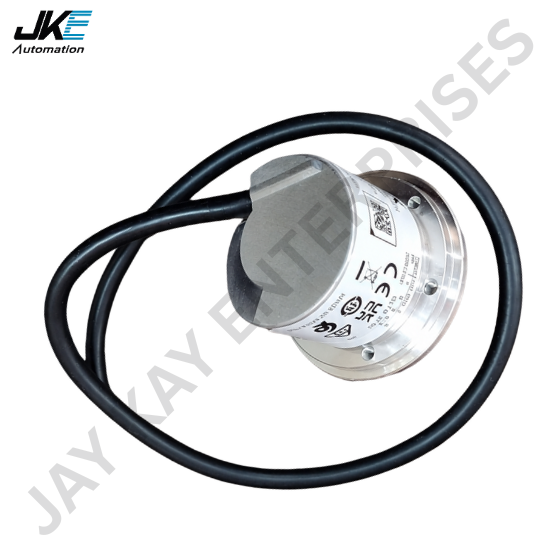

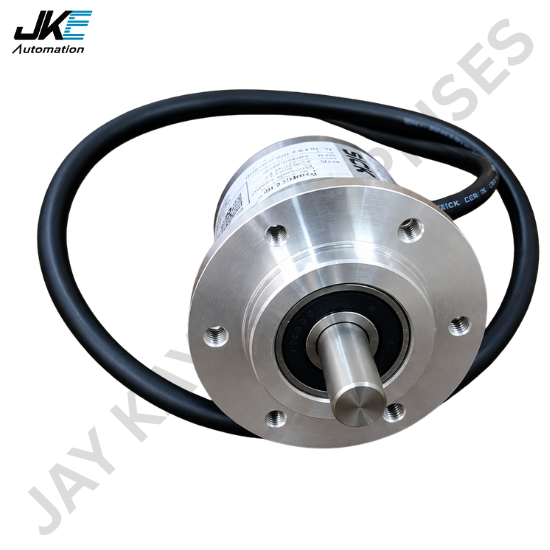

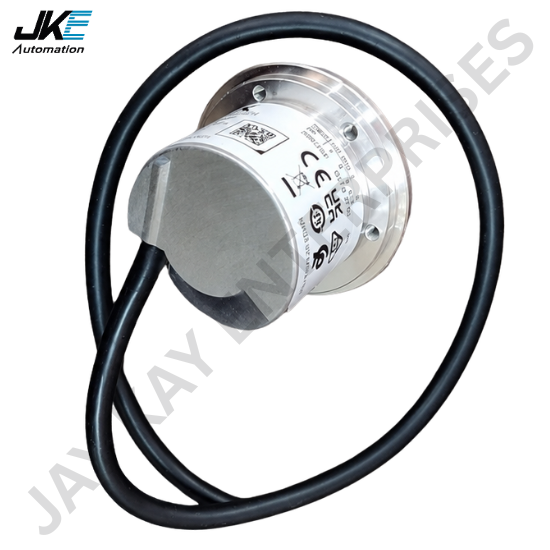

Send InquirySick Dbs50e-s5ep00s04 Incremental Encoders
Price 10100.0 INR/ Piece
MOQ : 10 Pieces
Sick Dbs50e-s5ep00s04 Incremental Encoders Specification
- IP Rating
- IP65
- Application
- Industrial Automation, Motor and Speed Control
- Housing Material
- Aluminum
- Signal Type
- Digital
- Response Time
- 1 Hours
- Ingress Protection
- IP65
- Interface
- HTL / Push-Pull
- Power Consumption
- Less than 0.5 W (unloaded) Watt (W)
- Operating Temperature
- 10 C to +60 C Celsius (oC)
- Wireless
- No
- Cable Length
- 0.5 Meter (m)
- Features
- Solid Shaft, 8 mm Diameter, 1000 PPR, Reference Signal
- Sensor Type
- SICK Incremental Encoder
- Mounting Type
- Face Mount Flange
- Measurement Range
- 1000 pulses per revolution; rotational measurement
- Power Rating
- Less than 0.5 W (unloaded)
- Product Type
- SICK Incremental Encoder
- Input
- 7 30 V DC
- Output
- HTL / Push-Pull
- Function
- Rotary Position and Speed Measurement
- Usage
- Rotation Measurement / Position Feedback
- Resolution
- 1000 Pulses per Revolution (PPR)
- Voltage
- 7-30 Volt (v)
- Rated Voltage
- 7 30 Volt (V)
- Usage & Applications
- Position Feedback, Speed Measurement, Industrial Machinery
- Weight
- 0.226 Kilograms (kg)
- Cable Type
- Maximum Output Frequency: 200 kHz 8-Core Cable with M12, 5-Pin Male Connector
- Warranty
- 1 YEAR
- Display Type
- SICK DBS50E-S5EP00S04
- Material
- PVC Cable, Aluminum Flange, Stainless Steel Shaft
- Rated Current
- 20 Milliampere (mA)
- Conductor
- 8-Wire Cable
- Frequency
- 200 Kilohertz ( KHZ )
Sick Dbs50e-s5ep00s04 Incremental Encoders Trade Information
- Minimum Order Quantity
- 10 Pieces
- Delivery Time
- 1 Week
About Sick Dbs50e-s5ep00s04 Incremental Encoders
PRODUCT DESCRIPTION
The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings, the DBS36/50 devices offer comprehensive mounting options. All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.
BENEFITS
> The flexible cable connection makes installation flexible and easy especially when space is limited
> Tailorable to the application: Many mounting options due to various flanges and universal stator couplings
> Can be used internationally thanks to shafts in both metric and inch sizes
> The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications
> The compact housing diameter saves valuable space
> The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and storage life.
FEATURES
> Pulses per revolution: Up to 2,500
> Housing diameter: 36 mm or 50 mm
> Solid shaft and blind hollow shaft
> Enclosure rating: IP65
> Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector
> Connection type: Cable, cable with M12 or M23 male connector
