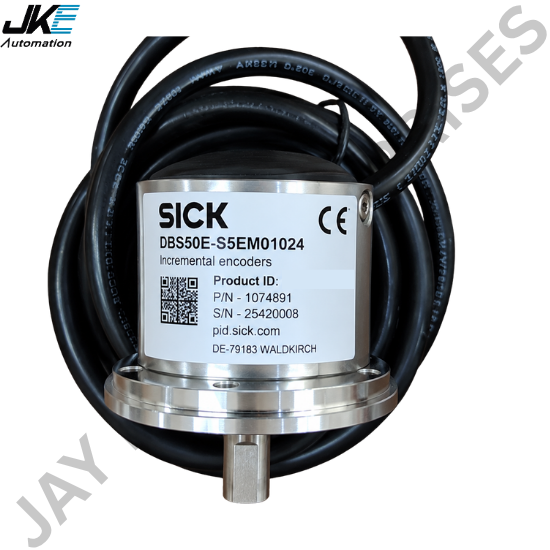

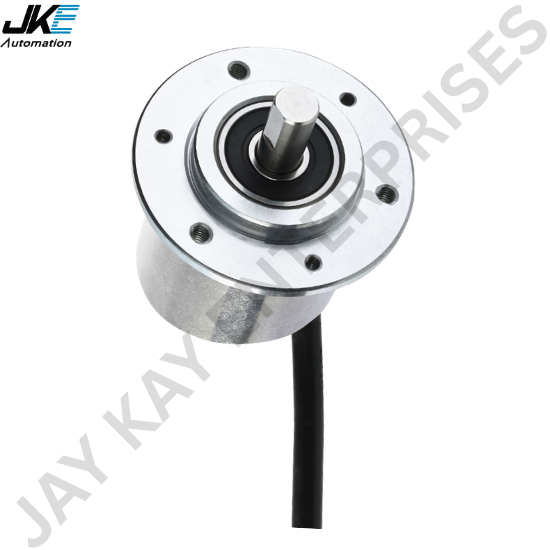

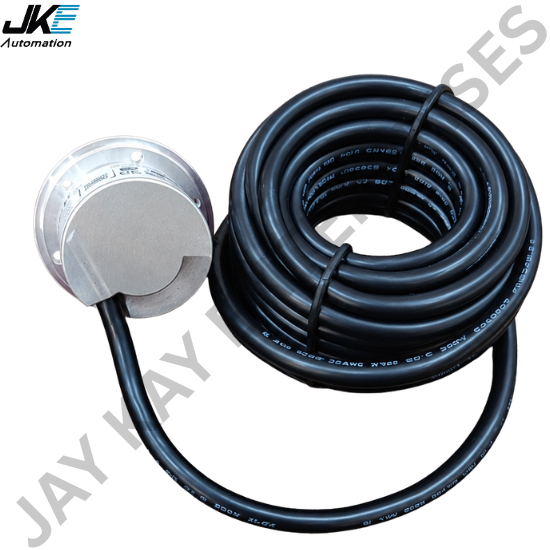

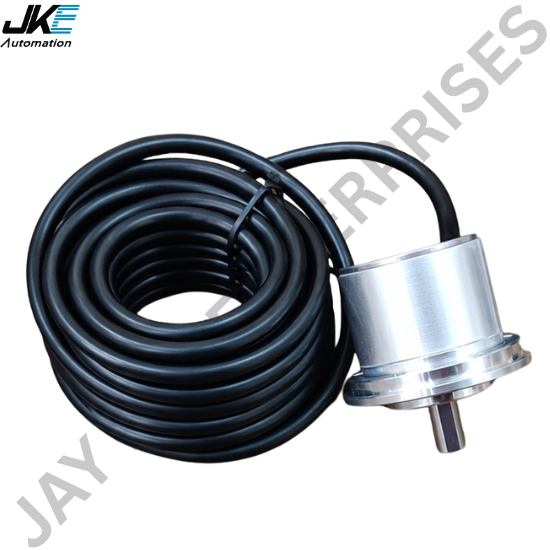

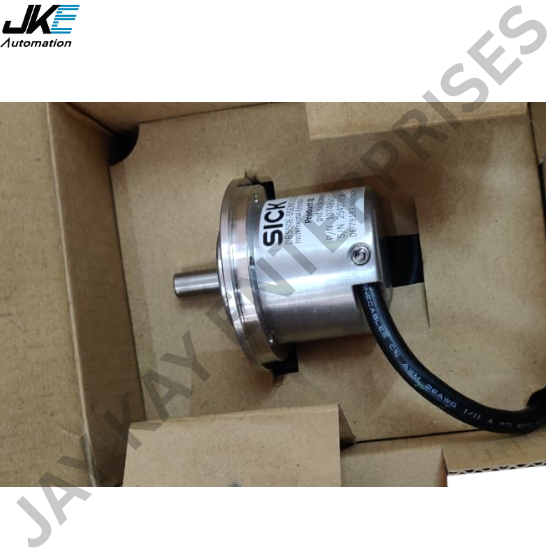

Sick Dbs50e-s5em01024 Incremental Encoders

Name: Sick Dbs50e-s5em01024 Incremental Encoders
Brand: JAY KAY ENTERPRISES
Price: 9000.0 INR
Availability: InStock

Price 9000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Sick Dbs50e-s5em01024 Incremental Encoders Specification

Sensor Type
SICK Incremental encoder

Interface
Incremental

Response Time
1 Hours

IP Rating
IP65

Wireless
No

Cable Length
5 Meter (m)

Housing Material
Aluminium

Measurement Range
1,024 pulses per revolution

Ingress Protection
IP65

Application
Position, speed and rotation monitoring

Operating Temperature
20 C to +85 C Celsius (oC)

Signal Type
Digital

Power Consumption
0.5 Watt (W)

Features
Solid shaft, reverse-polarity protection, short-circuit protection

Mounting Type
Face-mount flange

Power Rating
IP65

Product Type
SICK INCREMENTAL ENCODERS

Input
7 30 V DC

Output
HTL, Push-Pull

Function
Rotary position and speed measurement

Usage
Industrial automation

Accuracy
54 °C

Resolution
1,024 pulses per revolution (PPR)

Voltage
7 30 V DC Volt (v)

Weight
0.426 Kilograms (kg)

Usage & Applications
Industrial machinery, motor speed feedback, rotary position monitoring

Rated Voltage
7 30 V DC Volt (V)

Cable Type
Universal cable

Warranty
1 YEAR

Display Type
SICK DBS50E-S5EM01024

Rated Current
30 Milliampere (mA)

Frequency
300 Kilohertz ( KHZ )

Conductor
8-wire cable

Material
ALUMINIUM

Sick Dbs50e-s5em01024 Incremental Encoders Trade Information

Minimum Order Quantity
10 Pieces

Delivery Time
1 Week

About Sick Dbs50e-s5em01024 Incremental Encoders

PRODUCT DESCRIPTION

The DBS36/50 incremental encoder is characterized by its high mechanical flexibility, excellent technical properties, and many variants. The encoders are available with housing diameters of 36 mm and 50 mm as well as various blind hollow shafts and solid shafts. Thanks to the various mounting hole patterns, servo clamps and servo grooves, and universal stator couplings, the DBS36/50 devices offer comprehensive mounting options. All models have compact dimensions and a universal cable connection. This allows both axial and radial cable routing.

BENEFITS

> The flexible cable connection makes installation flexible and easy especially when space is limited > Tailorable to the application: Many mounting options due to various flanges and universal stator couplings > Can be used internationally thanks to shafts in both metric and inch sizes > The high mechanical flexibility and the large selection of supported accessories ensure the variants can be used in many applications > The compact housing diameter saves valuable space > The encoder has a longer service life and is more reliable in operation due to the high enclosure rating, temperature range, and storage life

FEATURES

> Pulses per revolution: Up to 2,500 > Housing diameter: 36 mm or 50 mm > Solid shaft and blind hollow shaft > Enclosure rating: IP65 > Communication interfaces: TTL/RS-422, HTL/Push Pull, Open Collector > Connection type: Cable, cable with M12 or M23 male connector
