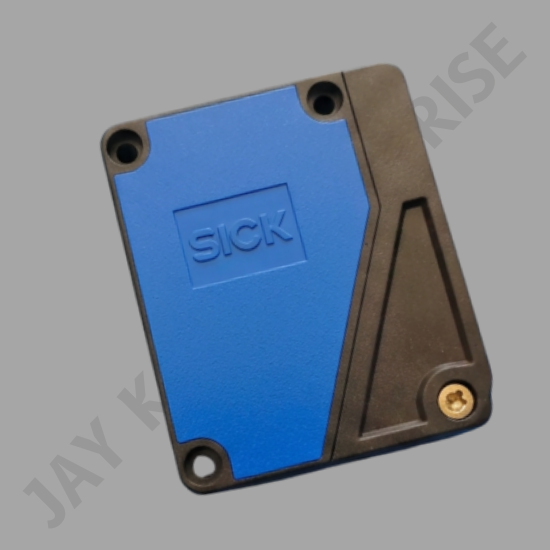

W280-2 PHOTOELECTRIC SENSOR

Name: W280-2 PHOTOELECTRIC SENSOR
Brand: JAY KAY ENTERPRISES
Price: 9100.0 INR
Availability: InStock

Price 9100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

W280-2 PHOTOELECTRIC SENSOR Specification

Signal Type
Digital

Spectral Range
0.01 m ... 15 m 1) 0.01 m ... 12 m 2)

Operating Temperature
25 C ... +55 C Celsius (oC)

Housing Material
Plastic, ABS

Application
Monitoring access barriers

Features
Photoelectric retro-reflective sensor

Cable Length
< 30 m. Millimeter (mm)

Response Time
1 Days

Ingress Protection
A 4) C 5)

Sensor Type
photoelectric sensor

Measurement Range
0.01 m ... 13 m 1) 0.01 m ... 11 m 2)

Power Consumption
5 VA Volt-Ampere (VA)

Sensitivity
potentiometer

IP Rating
IP66 IP67

Power Rating
IP66 IP67

Product Type
WL280-2H4331

Input
photoelectric sensor

Output
Change-over contacts

Function
Photoelectric retro-reflective sensor

Usage
Monitoring access barriers

Accuracy
260 mm (8 m) mm

Voltage
24 V DC ... 240 V DC Volt (v)

Usage & Applications
Monitoring access barriers

Rated Voltage
24 V DC ... 240 V DC Volt (V)

Weight
150 g Grams (g)

Warranty
1 year

Display Type
WL280-2H4331

Rated Current
3 A (240 V AC) Volt (v)

Material
Plastic, PMMA

Frequency
33 Hz Hertz (HZ)

W280-2 PHOTOELECTRIC SENSOR Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Week

About W280-2 PHOTOELECTRIC SENSOR

PRODUCT DECRIPTION

The W280-2 consists of three high-performance sensor types energetic photoelectric proximity sensor, photoelectric retro-reflective sensor and through-beam photoelectric sensor. The AC/DC devices (-2Hxxxx) are compliant with EN 61000-6-3 (electromagnetic interference for residential, commercial and light-industrial environments) which makes the sensor especially suitable for door and gates areas. In other branches the fast install kit provides a rotatable M12 connector, cable or screw terminal connection which offer a quick and easy setup even in space-restricted conditions. Devices with potentiometer and light/dark switching provide application flexibility. In addition, these sensors are available in DC and AC/DC versions.

AT A GLANCE

Easily visible red light thanks to bright Light LED.
Potentiometer for adjusting the sensing range/sensitivity.
Light/dark switching (DC devices only).
Rotatable male connector, cable connection or terminal connection.
Versions for 10 30 V DC or 24 240 V DC/AC voltage supply.
AC/DC devices (-2Hxxxx) are compliant with EN-61000-6-3 (electromagnetic interference for "residential, commercial and light industrial environments).
BEF-W280 mounting bracket made of stainless steel (1.4301) included in delivery

YOUR BENEFITS

Simple and fast commissioning with the highly visible light spot of the Bright Light LED.
Simple operation via potentiometer.
Light/dark switching provides application flexibility.
All necessary mounting and operating accessories are included in delivery, enabling quick and easy setup: since mounting Bracket (stainless steel 1.4301) is included in delivery scope .
DC devices and AC/DC devices available in the same housing, allowing electrical flexibility.
Less contamination due to high operating reserves, reducing downtime

Exceptional Performance and Durability

The W280-2 Photoelectric Sensor combines a plastic, PMMA, and ABS enclosure with superior ingress protection ratings (IP66 and IP67), ensuring resilience against dust, water, and mechanical impacts. Its operation in harsh conditions and wide temperature ranges makes it an excellent choice for industrial and commercial monitoring tasks.

Flexible Application and Power Compatibility

This sensor supports a wide voltage range (24 V DC to 240 V DC) and provides adaptable installation options with a cable length of up to 30 meters. It delivers rapid feedback (33 Hz frequency) and precise detection within distances up to 13 meters, making it ideal for monitoring access barriers in diverse environments.

FAQ's of W280-2 PHOTOELECTRIC SENSOR:

Q: How does the W280-2 Photoelectric Sensor operate?

A: The sensor uses a retro-reflective method, emitting a light beam that reflects off a designated reflector. If the beam is interrupted by an object, the sensor detects the presence and triggers a signal through its change-over digital contacts.

Q: What environments are suitable for installing this sensor?

A: With IP66 and IP67 ingress protection and a working temperature range from -25C to +55C, the W280-2 is ideal for both indoor and outdoor environments, including factories, warehouses, and access control points exposed to dust, moisture, or variable weather.

Q: When should you use the minimum distance to the reflector feature?

A: The minimum distance to the reflector ensures optimal sensor performance and avoids false detections. It's especially important when mounting the sensor close to the reflector in tight spaces, maximizing its accuracy and reliability.

Q: Where is the W280-2 most commonly used?

A: This sensor is primarily used for monitoring access barriers, such as gates or doors, in commercial and industrial settings that demand precise detection and robust environmental resistance.

Q: What is the process of installing the W280-2 Photoelectric Sensor?

A: Installation involves mounting the sensor and reflector at appropriate positions, wiring it to a compatible power source (24 V DC to 240 V DC), and adjusting the sensitivity using the built-in potentiometer. Detailed guidelines are provided in the user manual.

Q: Can the W280-2 handle long cable runs?

A: Yes, the sensor is designed to function with cable lengths of up to 30 meters, offering flexible installation options without signal loss.

Q: What benefits does the sensor offer over standard models?

A: The W280-2 provides rapid response (33 Hz), high accuracy (up to 260 mm at 8 m), flexible voltage compatibility, and durable housing. Its robust ingress protection and adjustable settings ensure reliable, long-term performance across a range of demanding applications.
