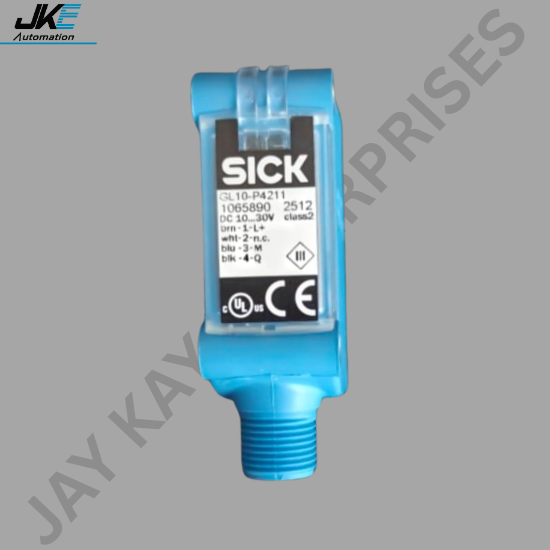

The G10 product family is characterized by optimum detection performance wherever space is at a premium. It supports numerous different options for optics, electronics, principles of operation, power supplies, and switching outputs. Combined with an extensive range of accessories, these sensors are able to support a wide variety of applications. The patented Q-Lock assembly system for the G10 reduces the time required to install and align the sensor with an assembly rod to just a few seconds, making this the ide al product for logistics applications. Summary: The G10 product family provides quick and flexible sensor installation, ensures error-free operation, and keeps costs under control.

Long sensing ranges: 1,200 mm with background suppression; 15 m on PL80A reflector

Pinpoint LED with bright and precise light spot

Small housing design

10 30 VDC or 24 240 VAC/VDC power supply with PNP/NPN or relay output

Rugged sensor housing with metal-reinforced holes for assembly

Q-Lock assembly system for mounting the sensor within a few seconds

  Long sensing ranges for maximum operating reserves

Efficient installation: The G10 and the Q-Lock assembly system save valuable hours when mounting and commissioning multiple sensors

A single sensor family for all industrial and commercial fields of application

Universal DC or AC/DC power supply for even greater application flexibility

Highly reliable and durable despite optical interference or mechanical loads

Wide range of accessories simplifies sensor integration: aids for assembly, connecting cables, and reflectors Fields of application

Logistics: Storage & Conveyor, especially pallet detection

Machine builders (e.g. packaging, handling, wood processing, paper)

Automotive

Automated car park systems

Doors and gates

Distribution

Functional principle: Photoelectric proximity sensor

Functional principle detail: Background suppression

Light source: LED

Voltage type: DC

Switching mode: Light/dark switching

Type of light: Infrared light
